Binarypath

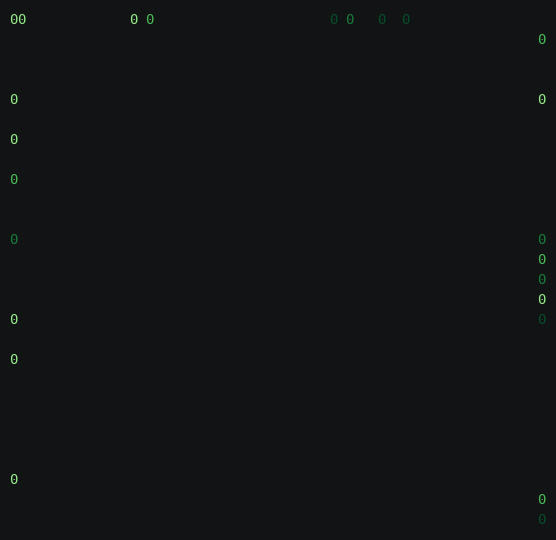

Demo

Quick Start

binarypath.py
from terminaltexteffects.effects.effect_binarypath import BinaryPath

effect = BinaryPath("YourTextHere")
with effect.terminal_output() as terminal:
    for frame in effect:
        terminal.print(frame)

Decodes characters into their binary form. Characters travel towards their input coordinate, moving at right angles.

Classes:

Name Description
BinaryPath

Decodes characters into their binary form. Characters travel from outside the canvas towards their " "input coordinate, moving at right angles.
BinaryPathConfig

Configuration for the BinaryPath effect.
BinaryPathIterator

Effect iterator for the BinaryPath effect. Does not normally need to be called directly.

BinaryPath

Bases: BaseEffect

Decode characters into their binary form. Characters travel to their input coordinate, moving at right angles.

Attributes:

Name Type Description
effect_config BinaryPathConfig

Configuration for the BinaryPath effect.
terminal_config TerminalConfig

Configuration for the terminal.
Source code in terminaltexteffects/effects/effect_binarypath.py
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
class BinaryPath(BaseEffect):
    """Decode characters into their binary form. Characters travel to their input coordinate, moving at right angles.

    Attributes:
        effect_config (BinaryPathConfig): Configuration for the BinaryPath effect.
        terminal_config (TerminalConfig): Configuration for the terminal.


    """

    @property
    def _config_cls(self) -> type[BinaryPathConfig]:
        return BinaryPathConfig

    @property
    def _iterator_cls(self) -> type[BinaryPathIterator]:
        return BinaryPathIterator

BinaryPathConfig dataclass

Bases: ArgsDataClass

Configuration for the BinaryPath effect.

Attributes:

Name Type Description
final_gradient_stops tuple[Color, ...]

Tuple of colors for the final color gradient. If only one color is provided, the characters will be displayed in that color.
final_gradient_steps tuple[int, ...] | int

Tuple of the number of gradient steps to use. More steps will create a smoother and longer gradient animation. Valid values are n > 0.
final_gradient_direction Direction

Direction of the final gradient.
binary_colors tuple[Color, ...]

Tuple of colors for the binary characters. Character color is randomly assigned from this list.
movement_speed float

Speed of the binary groups as they travel around the terminal. Valid values are n > 0.
active_binary_groups float

Maximum number of binary groups that are active at any given time as a percentage of the total number of binary groups. Lower this to improve performance. Valid values are 0 < n <= 1.
Source code in terminaltexteffects/effects/effect_binarypath.py
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
@argclass(
    name="binarypath",
    help="Binary representations of each character move towards the home coordinate of the character.",
    description="binarypath | Binary representations of each character move through the terminal towards the "
    "home coordinate of the character.",
    epilog="Example: terminaltexteffects binarypath --final-gradient-stops 00d500 007500 --final-gradient-steps 12 "
    "--final-gradient-direction vertical --binary-colors 044E29 157e38 45bf55 95ed87 --movement-speed 1.0 "
    "--active-binary-groups 0.05",
)
@dataclass
class BinaryPathConfig(ArgsDataClass):
    """Configuration for the BinaryPath effect.

    Attributes:
        final_gradient_stops (tuple[tte.Color, ...]): Tuple of colors for the final color gradient. If only one color
            is provided, the characters will be displayed in that color.
        final_gradient_steps (tuple[int, ...] | int): Tuple of the number of gradient steps to use. More steps will
            create a smoother and longer gradient animation. Valid values are n > 0.
        final_gradient_direction (tte.Gradient.Direction): Direction of the final gradient.
        binary_colors (tuple[tte.Color, ...]): Tuple of colors for the binary characters. Character color is randomly
            assigned from this list.
        movement_speed (float): Speed of the binary groups as they travel around the terminal. Valid values are n > 0.
        active_binary_groups (float): Maximum number of binary groups that are active at any given time as a
            percentage of the total number of binary groups. Lower this to improve performance.
            Valid values are 0 < n <= 1.

    """

    final_gradient_stops: tuple[tte.Color, ...] = ArgField(
        cmd_name=["--final-gradient-stops"],
        type_parser=argvalidators.ColorArg.type_parser,
        nargs="+",
        default=(tte.Color("00d500"), tte.Color("007500")),
        metavar=argvalidators.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the character gradient (applied across the canvas). "
        "If only one color is provided, the characters will be displayed in that color.",
    )  # type: ignore[assignment]

    (
        "tuple[tte.Color, ...] : Tuple of colors for the final color gradient. If only one color is provided, "
        "the characters will be displayed in that color."
    )

    final_gradient_steps: tuple[int, ...] | int = ArgField(
        cmd_name=["--final-gradient-steps"],
        type_parser=argvalidators.PositiveInt.type_parser,
        nargs="+",
        default=12,
        metavar=argvalidators.PositiveInt.METAVAR,
        help="Space separated, unquoted, list of the number of gradient steps to use. More steps will create a "
        "smoother and longer gradient animation.",
    )  # type: ignore[assignment]

    (
        "tuple[int, ...] | int : Int or Tuple of ints for the number (n > 0) of gradient steps to use. More steps will "
        "create a smoother and longer gradient animation."
    )

    final_gradient_direction: tte.Gradient.Direction = ArgField(
        cmd_name="--final-gradient-direction",
        type_parser=argvalidators.GradientDirection.type_parser,
        default=tte.Gradient.Direction.RADIAL,
        metavar=argvalidators.GradientDirection.METAVAR,
        help="Direction of the final gradient.",
    )  # type: ignore[assignment]

    "tte.Gradient.Direction : Direction of the final gradient."

    binary_colors: tuple[tte.Color, ...] = ArgField(
        cmd_name=["--binary-colors"],
        type_parser=argvalidators.ColorArg.type_parser,
        nargs="+",
        default=(tte.Color("044E29"), tte.Color("157e38"), tte.Color("45bf55"), tte.Color("95ed87")),
        metavar=argvalidators.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the binary characters. Character color is randomly "
        "assigned from this list.",
    )  # type: ignore[assignment]

    (
        "tuple[tte.Color, ...] : Tuple of colors for the binary characters. Character color is randomly assigned from "
        "this list."
    )

    movement_speed: float = ArgField(
        cmd_name="--movement-speed",
        type_parser=argvalidators.PositiveFloat.type_parser,
        default=1.0,
        metavar=argvalidators.PositiveFloat.METAVAR,
        help="Speed of the binary groups as they travel around the terminal.",
    )  # type: ignore[assignment]

    "float : Speed of the binary groups as they travel around the terminal."

    active_binary_groups: float = ArgField(
        cmd_name="--active-binary-groups",
        type_parser=argvalidators.NonNegativeRatio.type_parser,
        default=0.05,
        metavar=argvalidators.NonNegativeRatio.METAVAR,
        help="Maximum number of binary groups that are active at any given time as a percentage of the total number "
        "of binary groups. Lower this to improve performance.",
    )  # type: ignore[assignment]

    (
        "float : Maximum number of binary groups that are active at any given time as a percentage of the total number "
        "of binary groups. Lower this to improve performance."
    )

    @classmethod
    def get_effect_class(cls) -> type[BinaryPath]:
        """Return the effect class associated with this configuration."""
        return BinaryPath

active_binary_groups = ArgField(cmd_name='--active-binary-groups', type_parser=argvalidators.NonNegativeRatio.type_parser, default=0.05, metavar=argvalidators.NonNegativeRatio.METAVAR, help='Maximum number of binary groups that are active at any given time as a percentage of the total number of binary groups. Lower this to improve performance.') class-attribute instance-attribute

float : Maximum number of binary groups that are active at any given time as a percentage of the total number of binary groups. Lower this to improve performance.

binary_colors = ArgField(cmd_name=['--binary-colors'], type_parser=argvalidators.ColorArg.type_parser, nargs='+', default=(tte.Color('044E29'), tte.Color('157e38'), tte.Color('45bf55'), tte.Color('95ed87')), metavar=argvalidators.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the binary characters. Character color is randomly assigned from this list.') class-attribute instance-attribute

tuple[tte.Color, ...] : Tuple of colors for the binary characters. Character color is randomly assigned from this list.

final_gradient_direction = ArgField(cmd_name='--final-gradient-direction', type_parser=argvalidators.GradientDirection.type_parser, default=tte.Gradient.Direction.RADIAL, metavar=argvalidators.GradientDirection.METAVAR, help='Direction of the final gradient.') class-attribute instance-attribute

tte.Gradient.Direction : Direction of the final gradient.

final_gradient_steps = ArgField(cmd_name=['--final-gradient-steps'], type_parser=argvalidators.PositiveInt.type_parser, nargs='+', default=12, metavar=argvalidators.PositiveInt.METAVAR, help='Space separated, unquoted, list of the number of gradient steps to use. More steps will create a smoother and longer gradient animation.') class-attribute instance-attribute

tuple[int, ...] | int : Int or Tuple of ints for the number (n > 0) of gradient steps to use. More steps will create a smoother and longer gradient animation.

final_gradient_stops = ArgField(cmd_name=['--final-gradient-stops'], type_parser=argvalidators.ColorArg.type_parser, nargs='+', default=(tte.Color('00d500'), tte.Color('007500')), metavar=argvalidators.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the character gradient (applied across the canvas). If only one color is provided, the characters will be displayed in that color.') class-attribute instance-attribute

tuple[tte.Color, ...] : Tuple of colors for the final color gradient. If only one color is provided, the characters will be displayed in that color.

movement_speed = ArgField(cmd_name='--movement-speed', type_parser=argvalidators.PositiveFloat.type_parser, default=1.0, metavar=argvalidators.PositiveFloat.METAVAR, help='Speed of the binary groups as they travel around the terminal.') class-attribute instance-attribute

float : Speed of the binary groups as they travel around the terminal.

get_effect_class() classmethod

Return the effect class associated with this configuration.

Source code in terminaltexteffects/effects/effect_binarypath.py
135
136
137
138
@classmethod
def get_effect_class(cls) -> type[BinaryPath]:
    """Return the effect class associated with this configuration."""
    return BinaryPath

BinaryPathIterator

Bases: BaseEffectIterator[BinaryPathConfig]

Iterator for the BinaryPath effect.

Source code in terminaltexteffects/effects/effect_binarypath.py
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
class BinaryPathIterator(BaseEffectIterator[BinaryPathConfig]):
    """Iterator for the BinaryPath effect."""

    class _BinaryRepresentation:
        """Binary representation of a character. Used to animate the characters moving towards the input coordinate."""

        def __init__(self, character: tte.EffectCharacter, terminal: tte.Terminal) -> None:
            self.character = character
            self.terminal = terminal
            self.binary_string = format(ord(self.character.animation.current_character_visual.symbol), "08b")
            self.binary_characters: list[tte.EffectCharacter] = []
            self.pending_binary_characters: list[tte.EffectCharacter] = []
            self.input_coord = self.character.input_coord
            self.is_active = False

        def _travel_complete(self) -> bool:
            return all(bin_char.motion.current_coord == self.input_coord for bin_char in self.binary_characters)

        def _deactivate(self) -> None:
            for bin_char in self.binary_characters:
                self.terminal.set_character_visibility(bin_char, is_visible=False)
            self.is_active = False

        def _activate_source_character(self) -> None:
            self.terminal.set_character_visibility(self.character, is_visible=True)
            self.character.animation.activate_scene(self.character.animation.query_scene("collapse_scn"))

    def __init__(self, effect: BinaryPath) -> None:
        """Initialize the BinaryPath effect iterator.

        Args:
            effect (BinaryPath): The BinaryPath effect instance.

        """
        super().__init__(effect)
        self.pending_chars: list[tte.EffectCharacter] = []
        self.pending_binary_representations: list[BinaryPathIterator._BinaryRepresentation] = []
        self.character_final_color_map: dict[tte.EffectCharacter, tte.ColorPair] = {}
        self.last_frame_provided = False
        self.active_binary_reps: list[BinaryPathIterator._BinaryRepresentation] = []
        self.complete = False
        self.phase = "travel"
        self.final_wipe_chars = self.terminal.get_characters_grouped(
            grouping=self.terminal.CharacterGroup.DIAGONAL_TOP_RIGHT_TO_BOTTOM_LEFT,
        )
        self.max_active_binary_groups: int = 0
        self.build()

    def build(self) -> None:  # noqa: PLR0915
        """Build the BinaryPath effect."""
        final_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        for character in self.terminal.get_characters():
            if self.terminal.config.existing_color_handling == "dynamic" and character.animation.input_fg_color:
                self.character_final_color_map[character] = tte.ColorPair(
                    fg=character.animation.input_fg_color,
                    bg=character.animation.input_bg_color,
                )
            else:
                self.character_final_color_map[character] = tte.ColorPair(
                    fg=final_gradient_mapping[character.input_coord],
                )

        for character in self.terminal.get_characters():
            bin_rep = BinaryPathIterator._BinaryRepresentation(character, self.terminal)
            for binary_char in bin_rep.binary_string:
                bin_rep.binary_characters.append(self.terminal.add_character(binary_char, tte.Coord(0, 0)))
                bin_rep.pending_binary_characters.append(bin_rep.binary_characters[-1])
            self.pending_binary_representations.append(bin_rep)

        for bin_rep in self.pending_binary_representations:
            path_coords: list[tte.Coord] = []
            starting_coord = self.terminal.canvas.random_coord(outside_scope=True)
            path_coords.append(starting_coord)
            last_orientation = random.choice(("col", "row"))
            next_coord = starting_coord  # will be rebound in the loop
            while path_coords[-1] != bin_rep.character.input_coord:
                last_coord = path_coords[-1]
                if last_coord.column > bin_rep.character.input_coord.column:
                    column_direction = -1
                elif last_coord.column == bin_rep.character.input_coord.column:
                    column_direction = 0
                else:
                    column_direction = 1
                if last_coord.row > bin_rep.character.input_coord.row:
                    row_direction = -1
                elif last_coord.row == bin_rep.character.input_coord.row:
                    row_direction = 0
                else:
                    row_direction = 1
                max_column_distance = abs(last_coord.column - bin_rep.character.input_coord.column)
                max_row_distance = abs(last_coord.row - bin_rep.character.input_coord.row)
                if last_orientation == "col" and max_row_distance > 0:
                    next_coord = tte.Coord(
                        last_coord.column,
                        last_coord.row
                        + (
                            random.randint(1, min(max_row_distance, max(10, int(self.terminal.canvas.right * 0.2))))
                            * row_direction
                        ),
                    )
                    last_orientation = "row"
                elif last_orientation == "row" and max_column_distance > 0:
                    next_coord = tte.Coord(
                        last_coord.column + (random.randint(1, min(max_column_distance, 4)) * column_direction),
                        last_coord.row,
                    )
                    last_orientation = "col"
                else:
                    next_coord = bin_rep.character.input_coord

                path_coords.append(next_coord)

            path_coords.append(next_coord)
            final_coord = bin_rep.character.input_coord
            path_coords.append(final_coord)
            for bin_effectchar in bin_rep.binary_characters:
                bin_effectchar.motion.set_coordinate(path_coords[0])
                digital_path = bin_effectchar.motion.new_path(speed=self.config.movement_speed)
                for coord in path_coords:
                    digital_path.new_waypoint(coord)
                bin_effectchar.motion.activate_path(digital_path)
                bin_effectchar.layer = 1
                color_scn = bin_effectchar.animation.new_scene()
                color_scn.add_frame(
                    bin_effectchar.animation.current_character_visual.symbol,
                    1,
                    colors=tte.ColorPair(fg=random.choice(self.config.binary_colors)),
                )
                bin_effectchar.animation.activate_scene(color_scn)

        for character in self.terminal.get_characters():
            collapse_scn = character.animation.new_scene(ease=tte.easing.in_quad, scene_id="collapse_scn")
            dim_color = character.animation.adjust_color_brightness(
                self.character_final_color_map[character].fg_color,  # type: ignore[arg-type]
                0.5,
            )
            dim_gradient = tte.Gradient(tte.Color("ffffff"), dim_color, steps=10)
            collapse_scn.apply_gradient_to_symbols(character.input_symbol, 7, fg_gradient=dim_gradient)

            brighten_scn = character.animation.new_scene(scene_id="brighten_scn")
            brighten_gradient = tte.Gradient(dim_color, self.character_final_color_map[character].fg_color, steps=10)  # type: ignore[arg-type]
            brighten_scn.apply_gradient_to_symbols(character.input_symbol, 2, fg_gradient=brighten_gradient)
        self.max_active_binary_groups = max(
            1,
            int(self.config.active_binary_groups * len(self.pending_binary_representations)),
        )

    def __next__(self) -> str:
        """Return the next frame in the effect."""
        if not self.complete or self.active_characters:
            if self.phase == "travel":
                while (
                    len(self.active_binary_reps) < self.max_active_binary_groups and self.pending_binary_representations
                ):
                    next_binary_rep = self.pending_binary_representations.pop(
                        random.randrange(len(self.pending_binary_representations)),
                    )
                    next_binary_rep.is_active = True
                    self.active_binary_reps.append(next_binary_rep)

                if self.active_binary_reps:
                    for active_rep in self.active_binary_reps:
                        if active_rep.pending_binary_characters:
                            next_char = active_rep.pending_binary_characters.pop(0)
                            self.active_characters.add(next_char)
                            self.terminal.set_character_visibility(next_char, is_visible=True)
                        elif active_rep._travel_complete():
                            active_rep._deactivate()
                            active_rep._activate_source_character()
                            self.active_characters.add(active_rep.character)

                    self.active_binary_reps = [
                        binary_rep for binary_rep in self.active_binary_reps if binary_rep.is_active
                    ]

                if not self.active_characters:
                    self.phase = "wipe"

            if self.phase == "wipe":
                if self.final_wipe_chars:
                    next_group = self.final_wipe_chars.pop(0)
                    for character in next_group:
                        character.animation.activate_scene(character.animation.query_scene("brighten_scn"))
                        self.terminal.set_character_visibility(character, is_visible=True)
                        self.active_characters.add(character)
                else:
                    self.complete = True

            self.update()
            return self.frame

        if not self.last_frame_provided:
            self.last_frame_provided = True
            return self.frame

        raise StopIteration

__init__(effect)

Initialize the BinaryPath effect iterator.

Parameters:

Name Type Description Default
effect BinaryPath

The BinaryPath effect instance.

 required
Source code in terminaltexteffects/effects/effect_binarypath.py
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
def __init__(self, effect: BinaryPath) -> None:
    """Initialize the BinaryPath effect iterator.

    Args:
        effect (BinaryPath): The BinaryPath effect instance.

    """
    super().__init__(effect)
    self.pending_chars: list[tte.EffectCharacter] = []
    self.pending_binary_representations: list[BinaryPathIterator._BinaryRepresentation] = []
    self.character_final_color_map: dict[tte.EffectCharacter, tte.ColorPair] = {}
    self.last_frame_provided = False
    self.active_binary_reps: list[BinaryPathIterator._BinaryRepresentation] = []
    self.complete = False
    self.phase = "travel"
    self.final_wipe_chars = self.terminal.get_characters_grouped(
        grouping=self.terminal.CharacterGroup.DIAGONAL_TOP_RIGHT_TO_BOTTOM_LEFT,
    )
    self.max_active_binary_groups: int = 0
    self.build()

__next__()

Return the next frame in the effect.

Source code in terminaltexteffects/effects/effect_binarypath.py
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
def __next__(self) -> str:
    """Return the next frame in the effect."""
    if not self.complete or self.active_characters:
        if self.phase == "travel":
            while (
                len(self.active_binary_reps) < self.max_active_binary_groups and self.pending_binary_representations
            ):
                next_binary_rep = self.pending_binary_representations.pop(
                    random.randrange(len(self.pending_binary_representations)),
                )
                next_binary_rep.is_active = True
                self.active_binary_reps.append(next_binary_rep)

            if self.active_binary_reps:
                for active_rep in self.active_binary_reps:
                    if active_rep.pending_binary_characters:
                        next_char = active_rep.pending_binary_characters.pop(0)
                        self.active_characters.add(next_char)
                        self.terminal.set_character_visibility(next_char, is_visible=True)
                    elif active_rep._travel_complete():
                        active_rep._deactivate()
                        active_rep._activate_source_character()
                        self.active_characters.add(active_rep.character)

                self.active_binary_reps = [
                    binary_rep for binary_rep in self.active_binary_reps if binary_rep.is_active
                ]

            if not self.active_characters:
                self.phase = "wipe"

        if self.phase == "wipe":
            if self.final_wipe_chars:
                next_group = self.final_wipe_chars.pop(0)
                for character in next_group:
                    character.animation.activate_scene(character.animation.query_scene("brighten_scn"))
                    self.terminal.set_character_visibility(character, is_visible=True)
                    self.active_characters.add(character)
            else:
                self.complete = True

        self.update()
        return self.frame

    if not self.last_frame_provided:
        self.last_frame_provided = True
        return self.frame

    raise StopIteration

build()

Build the BinaryPath effect.

Source code in terminaltexteffects/effects/effect_binarypath.py
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
def build(self) -> None:  # noqa: PLR0915
    """Build the BinaryPath effect."""
    final_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
    final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.text_bottom,
        self.terminal.canvas.text_top,
        self.terminal.canvas.text_left,
        self.terminal.canvas.text_right,
        self.config.final_gradient_direction,
    )
    for character in self.terminal.get_characters():
        if self.terminal.config.existing_color_handling == "dynamic" and character.animation.input_fg_color:
            self.character_final_color_map[character] = tte.ColorPair(
                fg=character.animation.input_fg_color,
                bg=character.animation.input_bg_color,
            )
        else:
            self.character_final_color_map[character] = tte.ColorPair(
                fg=final_gradient_mapping[character.input_coord],
            )

    for character in self.terminal.get_characters():
        bin_rep = BinaryPathIterator._BinaryRepresentation(character, self.terminal)
        for binary_char in bin_rep.binary_string:
            bin_rep.binary_characters.append(self.terminal.add_character(binary_char, tte.Coord(0, 0)))
            bin_rep.pending_binary_characters.append(bin_rep.binary_characters[-1])
        self.pending_binary_representations.append(bin_rep)

    for bin_rep in self.pending_binary_representations:
        path_coords: list[tte.Coord] = []
        starting_coord = self.terminal.canvas.random_coord(outside_scope=True)
        path_coords.append(starting_coord)
        last_orientation = random.choice(("col", "row"))
        next_coord = starting_coord  # will be rebound in the loop
        while path_coords[-1] != bin_rep.character.input_coord:
            last_coord = path_coords[-1]
            if last_coord.column > bin_rep.character.input_coord.column:
                column_direction = -1
            elif last_coord.column == bin_rep.character.input_coord.column:
                column_direction = 0
            else:
                column_direction = 1
            if last_coord.row > bin_rep.character.input_coord.row:
                row_direction = -1
            elif last_coord.row == bin_rep.character.input_coord.row:
                row_direction = 0
            else:
                row_direction = 1
            max_column_distance = abs(last_coord.column - bin_rep.character.input_coord.column)
            max_row_distance = abs(last_coord.row - bin_rep.character.input_coord.row)
            if last_orientation == "col" and max_row_distance > 0:
                next_coord = tte.Coord(
                    last_coord.column,
                    last_coord.row
                    + (
                        random.randint(1, min(max_row_distance, max(10, int(self.terminal.canvas.right * 0.2))))
                        * row_direction
                    ),
                )
                last_orientation = "row"
            elif last_orientation == "row" and max_column_distance > 0:
                next_coord = tte.Coord(
                    last_coord.column + (random.randint(1, min(max_column_distance, 4)) * column_direction),
                    last_coord.row,
                )
                last_orientation = "col"
            else:
                next_coord = bin_rep.character.input_coord

            path_coords.append(next_coord)

        path_coords.append(next_coord)
        final_coord = bin_rep.character.input_coord
        path_coords.append(final_coord)
        for bin_effectchar in bin_rep.binary_characters:
            bin_effectchar.motion.set_coordinate(path_coords[0])
            digital_path = bin_effectchar.motion.new_path(speed=self.config.movement_speed)
            for coord in path_coords:
                digital_path.new_waypoint(coord)
            bin_effectchar.motion.activate_path(digital_path)
            bin_effectchar.layer = 1
            color_scn = bin_effectchar.animation.new_scene()
            color_scn.add_frame(
                bin_effectchar.animation.current_character_visual.symbol,
                1,
                colors=tte.ColorPair(fg=random.choice(self.config.binary_colors)),
            )
            bin_effectchar.animation.activate_scene(color_scn)

    for character in self.terminal.get_characters():
        collapse_scn = character.animation.new_scene(ease=tte.easing.in_quad, scene_id="collapse_scn")
        dim_color = character.animation.adjust_color_brightness(
            self.character_final_color_map[character].fg_color,  # type: ignore[arg-type]
            0.5,
        )
        dim_gradient = tte.Gradient(tte.Color("ffffff"), dim_color, steps=10)
        collapse_scn.apply_gradient_to_symbols(character.input_symbol, 7, fg_gradient=dim_gradient)

        brighten_scn = character.animation.new_scene(scene_id="brighten_scn")
        brighten_gradient = tte.Gradient(dim_color, self.character_final_color_map[character].fg_color, steps=10)  # type: ignore[arg-type]
        brighten_scn.apply_gradient_to_symbols(character.input_symbol, 2, fg_gradient=brighten_gradient)
    self.max_active_binary_groups = max(
        1,
        int(self.config.active_binary_groups * len(self.pending_binary_representations)),
    )

get_effect_and_args()

Return the BinaryPath effect class and its configuration class.

Source code in terminaltexteffects/effects/effect_binarypath.py
23
24
25
def get_effect_and_args() -> tuple[type[typing.Any], type[ArgsDataClass]]:
    """Return the BinaryPath effect class and its configuration class."""
    return BinaryPath, BinaryPathConfig
