Rings

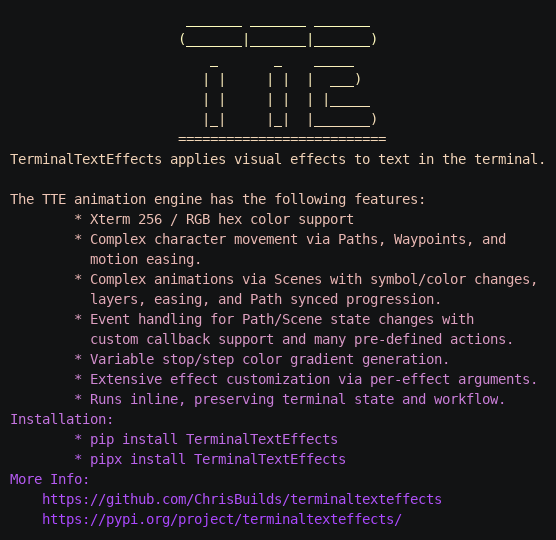

Demo

Quick Start

rings.py

from terminaltexteffects.effects.effect_rings import Rings

effect = Rings("YourTextHere")
with effect.terminal_output() as terminal:
    for frame in effect:
        terminal.print(frame)

Characters are dispersed and form into spinning rings.

Classes:

Name	Description
`Rings`	Characters are dispersed and form into spinning rings.
`RingsConfig`	Configuration for the Rings effect.
`RingsIterator`	Iterates over the effect. Does not normally need to be called directly.

`Rings`

Bases: BaseEffect[RingsConfig]

Characters are dispersed and form into spinning rings.

Attributes:

Name	Type	Description
`effect_config`	`RingsConfig`	Configuration for the effect.
`terminal_config`	`TerminalConfig`	Configuration for the terminal.

Source code in terminaltexteffects/effects/effect_rings.py

class Rings(BaseEffect[RingsConfig]):
    """Characters are dispersed and form into spinning rings.

    Attributes:
        effect_config (RingsConfig): Configuration for the effect.
        terminal_config (TerminalConfig): Configuration for the terminal.

    """

    @property
    def _config_cls(self) -> type[RingsConfig]:
        return RingsConfig

    @property
    def _iterator_cls(self) -> type[RingsIterator]:
        return RingsIterator

`RingsConfig` `dataclass`

Bases: ArgsDataClass

Configurations for the RingsEffect.

Attributes:

Name	Type	Description
`ring_colors`	`tuple[Color, ...]`	Tuple of colors for the rings.
`ring_gap`	`float`	Distance between rings as a percent of the smallest canvas dimension. " "Valid values are 0 < n <= 1.
`spin_duration`	`int`	Number of frames for each cycle of the spin phase. Valid values are n >= 0.
`spin_speed`	`tuple[float, float]`	Range of speeds for the rotation of the rings. The speed is randomly " "selected from this range for each ring. Valid values are n > 0.
`disperse_duration`	`int`	Number of frames spent in the dispersed state between spinning cycles. " "Valid values are n >= 0.
`spin_disperse_cycles`	`int`	Number of times the animation will cycle between spinning rings and " "dispersed characters. Valid values are n > 0.
`final_gradient_stops`	`tuple[Color, ...]`	Tuple of colors for the final color gradient. If only one color " "is provided, the characters will be displayed in that color.
`final_gradient_steps`	`tuple[int, ...] \| int`	Number of gradient steps to use. More steps will create a " "smoother and longer gradient animation.
`final_gradient_direction`	`Direction`	Direction of the final gradient.

Source code in terminaltexteffects/effects/effect_rings.py

@argclass(
    name="rings",
    help="Characters are dispersed and form into spinning rings.",
    description="rings | Characters are dispersed and form into spinning rings.",
    epilog=(
        "Example: terminaltexteffects rings --ring-colors ab48ff e7b2b2 fffebd --final-gradient-stops ab48ff "
        "e7b2b2 fffebd --final-gradient-steps 12 --ring-gap 0.1 --spin-duration 200 --spin-speed 0.25-1.0 "
        "--disperse-duration 200 --spin-disperse-cycles 3"
    ),
)
@dataclass
class RingsConfig(ArgsDataClass):
    """Configurations for the RingsEffect.

    Attributes:
        ring_colors (tuple[Color, ...]): Tuple of colors for the rings.
        ring_gap (float): Distance between rings as a percent of the smallest canvas dimension. "
            "Valid values are 0 < n <= 1.
        spin_duration (int): Number of frames for each cycle of the spin phase. Valid values are n >= 0.
        spin_speed (tuple[float, float]): Range of speeds for the rotation of the rings. The speed is randomly "
            "selected from this range for each ring. Valid values are n > 0.
        disperse_duration (int): Number of frames spent in the dispersed state between spinning cycles. "
            "Valid values are n >= 0.
        spin_disperse_cycles (int): Number of times the animation will cycle between spinning rings and "
            "dispersed characters. Valid values are n > 0.
        final_gradient_stops (tuple[Color, ...]): Tuple of colors for the final color gradient. If only one color "
            "is provided, the characters will be displayed in that color.
        final_gradient_steps (tuple[int, ...] | int): Number of gradient steps to use. More steps will create a "
            "smoother and longer gradient animation.
        final_gradient_direction (Gradient.Direction): Direction of the final gradient.

    """

    ring_colors: tuple[Color, ...] = ArgField(
        cmd_name=["--ring-colors"],
        type_parser=argvalidators.ColorArg.type_parser,
        nargs="+",
        default=(Color("ab48ff"), Color("e7b2b2"), Color("fffebd")),
        metavar=argvalidators.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the rings.",
    )  # type: ignore[assignment]
    "tuple[Color] : Tuple of colors for the rings."

    ring_gap: float = ArgField(
        cmd_name=["--ring-gap"],
        type_parser=argvalidators.PositiveFloat.type_parser,
        default=0.1,
        help="Distance between rings as a percent of the smallest canvas dimension.",
    )  # type: ignore[assignment]
    "float : Distance between rings as a percent of the smallest canvas dimension."
    spin_duration: int = ArgField(
        cmd_name=["--spin-duration"],
        type_parser=argvalidators.PositiveInt.type_parser,
        default=200,
        help="Number of frames for each cycle of the spin phase.",
    )  # type: ignore[assignment]
    "int : Number of frames for each cycle of the spin phase."

    spin_speed: tuple[float, float] = ArgField(
        cmd_name=["--spin-speed"],
        type_parser=argvalidators.PositiveFloatRange.type_parser,
        default=(0.25, 1.0),
        metavar=argvalidators.PositiveFloatRange.METAVAR,
        help="Range of speeds for the rotation of the rings. The speed is randomly selected from this "
        "range for each ring.",
    )  # type: ignore[assignment]
    (
        "tuple[float, float] : Range of speeds for the rotation of the rings. The speed is randomly selected "
        "from this range for each ring."
    )

    disperse_duration: int = ArgField(
        cmd_name=["--disperse-duration"],
        type_parser=argvalidators.PositiveInt.type_parser,
        default=200,
        help="Number of frames spent in the dispersed state between spinning cycles.",
    )  # type: ignore[assignment]
    "int : Number of frames spent in the dispersed state between spinning cycles."

    spin_disperse_cycles: int = ArgField(
        cmd_name=["--spin-disperse-cycles"],
        type_parser=argvalidators.PositiveInt.type_parser,
        default=3,
        help="Number of times the animation will cycles between spinning rings and dispersed characters.",
    )  # type: ignore[assignment]
    "int : Number of times the animation will cycles between spinning rings and dispersed characters."

    final_gradient_stops: tuple[Color, ...] = ArgField(
        cmd_name=["--final-gradient-stops"],
        type_parser=argvalidators.ColorArg.type_parser,
        nargs="+",
        default=(Color("ab48ff"), Color("e7b2b2"), Color("fffebd")),
        metavar=argvalidators.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the character gradient (applied across the canvas). "
        "If only one color is provided, the characters will be displayed in that color.",
    )  # type: ignore[assignment]
    (
        "tuple[Color] : Tuple of colors for the final color gradient. If only one color is provided, the characters "
        "will be displayed in that color."
    )

    final_gradient_steps: tuple[int, ...] | int = ArgField(
        cmd_name=["--final-gradient-steps"],
        type_parser=argvalidators.PositiveInt.type_parser,
        nargs="+",
        default=12,
        metavar=argvalidators.PositiveInt.METAVAR,
        help="Space separated, unquoted, list of the number of gradient steps to use. More steps will create a "
        "smoother and longer gradient animation.",
    )  # type: ignore[assignment]
    (
        "tuple[int, ...] | int : Number of gradient steps to use. More steps will create a smoother and longer "
        "gradient animation."
    )

    final_gradient_direction: Gradient.Direction = ArgField(
        cmd_name="--final-gradient-direction",
        type_parser=argvalidators.GradientDirection.type_parser,
        default=Gradient.Direction.VERTICAL,
        metavar=argvalidators.GradientDirection.METAVAR,
        help="Direction of the final gradient.",
    )  # type: ignore[assignment]
    "Gradient.Direction : Direction of the final gradient."

    @classmethod
    def get_effect_class(cls) -> type[Rings]:
        """Get the effect class associated with this configuration."""
        return Rings

`disperse_duration = ArgField(cmd_name=['--disperse-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames spent in the dispersed state between spinning cycles.')` `class-attribute` `instance-attribute`

int : Number of frames spent in the dispersed state between spinning cycles.

`final_gradient_direction = ArgField(cmd_name='--final-gradient-direction', type_parser=argvalidators.GradientDirection.type_parser, default=Gradient.Direction.VERTICAL, metavar=argvalidators.GradientDirection.METAVAR, help='Direction of the final gradient.')` `class-attribute` `instance-attribute`

Gradient.Direction : Direction of the final gradient.

`final_gradient_steps = ArgField(cmd_name=['--final-gradient-steps'], type_parser=argvalidators.PositiveInt.type_parser, nargs='+', default=12, metavar=argvalidators.PositiveInt.METAVAR, help='Space separated, unquoted, list of the number of gradient steps to use. More steps will create a smoother and longer gradient animation.')` `class-attribute` `instance-attribute`

tuple[int, ...] | int : Number of gradient steps to use. More steps will create a smoother and longer gradient animation.

`final_gradient_stops = ArgField(cmd_name=['--final-gradient-stops'], type_parser=argvalidators.ColorArg.type_parser, nargs='+', default=(Color('ab48ff'), Color('e7b2b2'), Color('fffebd')), metavar=argvalidators.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the character gradient (applied across the canvas). If only one color is provided, the characters will be displayed in that color.')` `class-attribute` `instance-attribute`

tuple[Color] : Tuple of colors for the final color gradient. If only one color is provided, the characters will be displayed in that color.

`ring_colors = ArgField(cmd_name=['--ring-colors'], type_parser=argvalidators.ColorArg.type_parser, nargs='+', default=(Color('ab48ff'), Color('e7b2b2'), Color('fffebd')), metavar=argvalidators.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the rings.')` `class-attribute` `instance-attribute`

tuple[Color] : Tuple of colors for the rings.

`ring_gap = ArgField(cmd_name=['--ring-gap'], type_parser=argvalidators.PositiveFloat.type_parser, default=0.1, help='Distance between rings as a percent of the smallest canvas dimension.')` `class-attribute` `instance-attribute`

float : Distance between rings as a percent of the smallest canvas dimension.

`spin_disperse_cycles = ArgField(cmd_name=['--spin-disperse-cycles'], type_parser=argvalidators.PositiveInt.type_parser, default=3, help='Number of times the animation will cycles between spinning rings and dispersed characters.')` `class-attribute` `instance-attribute`

int : Number of times the animation will cycles between spinning rings and dispersed characters.

`spin_duration = ArgField(cmd_name=['--spin-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames for each cycle of the spin phase.')` `class-attribute` `instance-attribute`

int : Number of frames for each cycle of the spin phase.

`spin_speed = ArgField(cmd_name=['--spin-speed'], type_parser=argvalidators.PositiveFloatRange.type_parser, default=(0.25, 1.0), metavar=argvalidators.PositiveFloatRange.METAVAR, help='Range of speeds for the rotation of the rings. The speed is randomly selected from this range for each ring.')` `class-attribute` `instance-attribute`

tuple[float, float] : Range of speeds for the rotation of the rings. The speed is randomly selected from this range for each ring.

`get_effect_class()` `classmethod`

Get the effect class associated with this configuration.

Source code in terminaltexteffects/effects/effect_rings.py

@classmethod
def get_effect_class(cls) -> type[Rings]:
    """Get the effect class associated with this configuration."""
    return Rings

`RingsIterator`

Bases: BaseEffectIterator[RingsConfig]

Iterator for the Rings effect.

Source code in terminaltexteffects/effects/effect_rings.py

class RingsIterator(BaseEffectIterator[RingsConfig]):
    """Iterator for the Rings effect."""

    class Ring:
        """A ring of characters that spin around a central point."""

        def __init__(
            self,
            config: RingsConfig,
            radius: int,
            origin: Coord,
            ring_coords: list[Coord],
            ring_gap: int,
            ring_color: Color,
            character_color_map: dict[EffectCharacter, Color],
        ) -> None:
            """Initialize the ring.

            Args:
                config (RingsConfig): Configuration for the effect.
                radius (int): Radius of the ring.
                origin (Coord): Center of the ring.
                ring_coords (list[Coord]): Coordinates of the ring.
                ring_gap (int): Distance between rings.
                ring_color (Color): Color of the ring.
                character_color_map (dict[EffectCharacter, Color]): Mapping of characters to colors.

            """
            self.config = config
            self._built = False
            self.radius = radius
            self.origin: Coord = origin
            self.counter_clockwise_coords = ring_coords
            self.clockwise_coords = ring_coords[::-1]
            self.ring_gap = ring_gap
            self.ring_color = ring_color
            self.characters: list[EffectCharacter] = []
            self.character_last_ring_path: dict[EffectCharacter, motion.Path] = {}
            self.rotations = 0
            self.rotation_speed = random.uniform(self.config.spin_speed[0], self.config.spin_speed[1])
            self.character_color_map = character_color_map

        def add_character(self, character: EffectCharacter, clockwise: int) -> None:
            """Add a character to the ring."""
            # make gradient scene
            gradient_scn = character.animation.new_scene(scene_id="gradient")
            char_gradient = Gradient(self.character_color_map[character], self.ring_color, steps=8)
            gradient_scn.apply_gradient_to_symbols(character.input_symbol, 5, fg_gradient=char_gradient)

            # make rotation waypoints
            ring_paths: list[motion.Path] = []
            character_starting_index = len(self.characters)
            coords = self.clockwise_coords if clockwise else self.counter_clockwise_coords
            for coord in coords[character_starting_index:] + coords[:character_starting_index]:
                ring_path = character.motion.new_path(path_id=str(len(ring_paths)), speed=self.rotation_speed)
                ring_path.new_waypoint(coord, waypoint_id=str(len(ring_path.waypoints)))
                ring_paths.append(ring_path)
            self.character_last_ring_path[character] = ring_paths[0]
            # make disperse scene
            disperse_scn = character.animation.new_scene(is_looping=False, scene_id="disperse")
            disperse_gradient = Gradient(self.ring_color, self.character_color_map[character], steps=8)
            disperse_scn.apply_gradient_to_symbols(character.input_symbol, 16, fg_gradient=disperse_gradient)
            character.motion.chain_paths(ring_paths, loop=True)
            self.characters.append(character)

        def make_disperse_waypoints(self, character: EffectCharacter, origin: Coord) -> motion.Path:
            """Make waypoints for the disperse path.

            Args:
                character (EffectCharacter): Character to disperse.
                origin (Coord): Origin of the disperse path.

            Returns:
                motion.Path: Disperse path.

            """
            disperse_coords = geometry.find_coords_in_rect(origin, self.ring_gap)
            character.motion.paths.pop("disperse", None)
            disperse_path = character.motion.new_path(speed=0.1, loop=True, path_id="disperse")
            for _ in range(5):
                disperse_path.new_waypoint(disperse_coords[random.randrange(0, len(disperse_coords))])
            return disperse_path

        def disperse(self) -> None:
            """Disperse the characters."""
            for character in self.characters:
                if character.motion.active_path is not None:
                    self.character_last_ring_path[character] = character.motion.active_path
                else:
                    self.character_last_ring_path[character] = character.motion.paths["0"]
                character.motion.activate_path(self.make_disperse_waypoints(character, character.motion.current_coord))
                character.animation.activate_scene(character.animation.query_scene("disperse"))

        def spin(self) -> None:
            """Spin the ring."""
            for character in self.characters:
                condense_path = character.motion.new_path(speed=0.1)
                condense_path.new_waypoint(self.character_last_ring_path[character].waypoints[0].coord)
                character.event_handler.register_event(
                    EventHandler.Event.PATH_COMPLETE,
                    condense_path,
                    EventHandler.Action.ACTIVATE_PATH,
                    self.character_last_ring_path[character],
                )
                character.motion.activate_path(condense_path)
                character.animation.activate_scene(character.animation.query_scene("gradient"))

    def __init__(self, effect: Rings) -> None:
        """Initialize the effect iterator."""
        super().__init__(effect)
        self.pending_chars: list[EffectCharacter] = []
        self.ring_chars: list[EffectCharacter] = []
        self.non_ring_chars: list[EffectCharacter] = []
        self.rings: dict[int, RingsIterator.Ring] = {}
        self.ring_gap = int(
            max(round(min(self.terminal.canvas.top, self.terminal.canvas.right) * self.config.ring_gap), 1),
        )
        self.character_final_color_map: dict[EffectCharacter, Color] = {}
        self.build()

    def build(self) -> None:
        """Build the initial state of the effect."""
        self.ring_gap = int(
            max(round(min(self.terminal.canvas.top, self.terminal.canvas.right) * self.config.ring_gap), 1),
        )
        final_gradient = Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        for character in self.terminal.get_characters():
            self.character_final_color_map[character] = final_gradient_mapping[character.input_coord]
            start_scn = character.animation.new_scene()
            start_scn.add_frame(
                character.input_symbol,
                1,
                colors=ColorPair(fg=self.character_final_color_map[character]),
            )
            home_path = character.motion.new_path(speed=0.8, ease=easing.out_quad, path_id="home")
            home_path.new_waypoint(character.input_coord)
            character.animation.activate_scene(start_scn)
            self.terminal.set_character_visibility(character, is_visible=True)
            self.pending_chars.append(character)

        random.shuffle(self.pending_chars)
        # make rings
        for radius in range(1, max(self.terminal.canvas.right, self.terminal.canvas.top), self.ring_gap):
            ring_coords = geometry.find_coords_on_circle(self.terminal.canvas.center, radius, 7 * radius, unique=True)
            # check if any part of the ring is in the canvas, if not, stop creating rings
            if (
                len([coord for coord in ring_coords if self.terminal.canvas.coord_is_in_canvas(coord)])
                / len(ring_coords)
                < 0.25
            ):
                break

            self.rings[radius] = RingsIterator.Ring(
                self.config,
                radius,
                self.terminal.canvas.center,
                ring_coords,
                self.ring_gap,
                self.config.ring_colors[len(self.rings) % len(self.config.ring_colors)],
                self.character_final_color_map,
            )
        # assign characters to rings
        for ring_count, ring in enumerate(self.rings.values()):
            for _ in ring.counter_clockwise_coords:
                if self.pending_chars:
                    next_character = self.pending_chars.pop(0)
                    # set rings to rotate in opposite directions
                    ring.add_character(next_character, clockwise=ring_count % 2)
                    self.ring_chars.append(next_character)

        # make external waypoints for characters not in rings
        for character in self.terminal.get_characters():
            if character not in self.ring_chars:
                external_path = character.motion.new_path(path_id="external", speed=0.8, ease=easing.out_sine)
                external_path.new_waypoint(self.terminal.canvas.random_coord(outside_scope=True))

                self.non_ring_chars.append(character)
                character.event_handler.register_event(
                    EventHandler.Event.PATH_COMPLETE,
                    external_path,
                    EventHandler.Action.CALLBACK,
                    EventHandler.Callback(self.terminal.set_character_visibility, False),  # noqa: FBT003
                )
        self._rings_list = list(self.rings.values())
        self._phase = "start"
        self._initial_disperse_complete = False
        self._spin_time_remaining = self.config.spin_duration
        self._disperse_time_remaining = self.config.disperse_duration
        self._cycles_remaining = self.config.spin_disperse_cycles
        self._initial_phase_time_remaining = 100

    def __next__(self) -> str:
        """Return the next frame in the animation."""
        if self._phase != "complete":
            if self._phase == "start":
                if not self._initial_phase_time_remaining:
                    self._phase = "disperse"
                else:
                    self._initial_phase_time_remaining -= 1

            elif self._phase == "disperse":
                if not self._initial_disperse_complete:
                    self._initial_disperse_complete = True
                    for ring in self._rings_list:
                        for character in ring.characters:
                            disperse_path = ring.make_disperse_waypoints(
                                character,
                                character.motion.paths["0"].waypoints[0].coord,
                            )
                            initial_path = character.motion.new_path(speed=0.3, ease=easing.out_cubic)
                            initial_path.new_waypoint(disperse_path.waypoints[0].coord)
                            character.event_handler.register_event(
                                EventHandler.Event.PATH_COMPLETE,
                                initial_path,
                                EventHandler.Action.ACTIVATE_PATH,
                                disperse_path,
                            )
                            character.animation.activate_scene(character.animation.query_scene("disperse"))
                            character.motion.activate_path(initial_path)
                            self.active_characters.add(character)

                    for character in self.non_ring_chars:
                        character.motion.activate_path(character.motion.query_path("external"))
                        self.active_characters.add(character)

                elif not self._disperse_time_remaining:
                    self._phase = "spin"
                    self._cycles_remaining -= 1
                    self._spin_time_remaining = self.config.spin_duration
                    for ring in self._rings_list:
                        ring.spin()
                else:
                    self._disperse_time_remaining -= 1

            elif self._phase == "spin":
                if not self._spin_time_remaining:
                    if not self._cycles_remaining:
                        self._phase = "final"
                        for character in self.terminal.get_characters():
                            self.terminal.set_character_visibility(character, is_visible=True)
                            character.motion.activate_path(character.motion.query_path("home"))
                            self.active_characters.add(character)
                            if "external" in character.motion.paths:
                                continue
                            character.animation.activate_scene(character.animation.query_scene("disperse"))
                    else:
                        self._disperse_time_remaining = self.config.disperse_duration
                        for ring in self._rings_list:
                            ring.disperse()
                        self._phase = "disperse"

                else:
                    self._spin_time_remaining -= 1

            elif self._phase == "final" and not self.active_characters:
                self._phase = "complete"

            self.update()
            return self.frame
        raise StopIteration

`Ring`

A ring of characters that spin around a central point.

Source code in terminaltexteffects/effects/effect_rings.py

class Ring:
    """A ring of characters that spin around a central point."""

    def __init__(
        self,
        config: RingsConfig,
        radius: int,
        origin: Coord,
        ring_coords: list[Coord],
        ring_gap: int,
        ring_color: Color,
        character_color_map: dict[EffectCharacter, Color],
    ) -> None:
        """Initialize the ring.

        Args:
            config (RingsConfig): Configuration for the effect.
            radius (int): Radius of the ring.
            origin (Coord): Center of the ring.
            ring_coords (list[Coord]): Coordinates of the ring.
            ring_gap (int): Distance between rings.
            ring_color (Color): Color of the ring.
            character_color_map (dict[EffectCharacter, Color]): Mapping of characters to colors.

        """
        self.config = config
        self._built = False
        self.radius = radius
        self.origin: Coord = origin
        self.counter_clockwise_coords = ring_coords
        self.clockwise_coords = ring_coords[::-1]
        self.ring_gap = ring_gap
        self.ring_color = ring_color
        self.characters: list[EffectCharacter] = []
        self.character_last_ring_path: dict[EffectCharacter, motion.Path] = {}
        self.rotations = 0
        self.rotation_speed = random.uniform(self.config.spin_speed[0], self.config.spin_speed[1])
        self.character_color_map = character_color_map

    def add_character(self, character: EffectCharacter, clockwise: int) -> None:
        """Add a character to the ring."""
        # make gradient scene
        gradient_scn = character.animation.new_scene(scene_id="gradient")
        char_gradient = Gradient(self.character_color_map[character], self.ring_color, steps=8)
        gradient_scn.apply_gradient_to_symbols(character.input_symbol, 5, fg_gradient=char_gradient)

        # make rotation waypoints
        ring_paths: list[motion.Path] = []
        character_starting_index = len(self.characters)
        coords = self.clockwise_coords if clockwise else self.counter_clockwise_coords
        for coord in coords[character_starting_index:] + coords[:character_starting_index]:
            ring_path = character.motion.new_path(path_id=str(len(ring_paths)), speed=self.rotation_speed)
            ring_path.new_waypoint(coord, waypoint_id=str(len(ring_path.waypoints)))
            ring_paths.append(ring_path)
        self.character_last_ring_path[character] = ring_paths[0]
        # make disperse scene
        disperse_scn = character.animation.new_scene(is_looping=False, scene_id="disperse")
        disperse_gradient = Gradient(self.ring_color, self.character_color_map[character], steps=8)
        disperse_scn.apply_gradient_to_symbols(character.input_symbol, 16, fg_gradient=disperse_gradient)
        character.motion.chain_paths(ring_paths, loop=True)
        self.characters.append(character)

    def make_disperse_waypoints(self, character: EffectCharacter, origin: Coord) -> motion.Path:
        """Make waypoints for the disperse path.

        Args:
            character (EffectCharacter): Character to disperse.
            origin (Coord): Origin of the disperse path.

        Returns:
            motion.Path: Disperse path.

        """
        disperse_coords = geometry.find_coords_in_rect(origin, self.ring_gap)
        character.motion.paths.pop("disperse", None)
        disperse_path = character.motion.new_path(speed=0.1, loop=True, path_id="disperse")
        for _ in range(5):
            disperse_path.new_waypoint(disperse_coords[random.randrange(0, len(disperse_coords))])
        return disperse_path

    def disperse(self) -> None:
        """Disperse the characters."""
        for character in self.characters:
            if character.motion.active_path is not None:
                self.character_last_ring_path[character] = character.motion.active_path
            else:
                self.character_last_ring_path[character] = character.motion.paths["0"]
            character.motion.activate_path(self.make_disperse_waypoints(character, character.motion.current_coord))
            character.animation.activate_scene(character.animation.query_scene("disperse"))

    def spin(self) -> None:
        """Spin the ring."""
        for character in self.characters:
            condense_path = character.motion.new_path(speed=0.1)
            condense_path.new_waypoint(self.character_last_ring_path[character].waypoints[0].coord)
            character.event_handler.register_event(
                EventHandler.Event.PATH_COMPLETE,
                condense_path,
                EventHandler.Action.ACTIVATE_PATH,
                self.character_last_ring_path[character],
            )
            character.motion.activate_path(condense_path)
            character.animation.activate_scene(character.animation.query_scene("gradient"))

`init(config, radius, origin, ring_coords, ring_gap, ring_color, character_color_map)`

Initialize the ring.

Parameters:

Name	Type	Description	Default
`config`	`RingsConfig`	Configuration for the effect.	required
`radius`	`int`	Radius of the ring.	required
`origin`	`Coord`	Center of the ring.	required
`ring_coords`	`list[Coord]`	Coordinates of the ring.	required
`ring_gap`	`int`	Distance between rings.	required
`ring_color`	`Color`	Color of the ring.	required
`character_color_map`	`dict[EffectCharacter, Color]`	Mapping of characters to colors.	required

Source code in terminaltexteffects/effects/effect_rings.py

def __init__(
    self,
    config: RingsConfig,
    radius: int,
    origin: Coord,
    ring_coords: list[Coord],
    ring_gap: int,
    ring_color: Color,
    character_color_map: dict[EffectCharacter, Color],
) -> None:
    """Initialize the ring.

    Args:
        config (RingsConfig): Configuration for the effect.
        radius (int): Radius of the ring.
        origin (Coord): Center of the ring.
        ring_coords (list[Coord]): Coordinates of the ring.
        ring_gap (int): Distance between rings.
        ring_color (Color): Color of the ring.
        character_color_map (dict[EffectCharacter, Color]): Mapping of characters to colors.

    """
    self.config = config
    self._built = False
    self.radius = radius
    self.origin: Coord = origin
    self.counter_clockwise_coords = ring_coords
    self.clockwise_coords = ring_coords[::-1]
    self.ring_gap = ring_gap
    self.ring_color = ring_color
    self.characters: list[EffectCharacter] = []
    self.character_last_ring_path: dict[EffectCharacter, motion.Path] = {}
    self.rotations = 0
    self.rotation_speed = random.uniform(self.config.spin_speed[0], self.config.spin_speed[1])
    self.character_color_map = character_color_map

`add_character(character, clockwise)`

Add a character to the ring.

Source code in terminaltexteffects/effects/effect_rings.py

def add_character(self, character: EffectCharacter, clockwise: int) -> None:
    """Add a character to the ring."""
    # make gradient scene
    gradient_scn = character.animation.new_scene(scene_id="gradient")
    char_gradient = Gradient(self.character_color_map[character], self.ring_color, steps=8)
    gradient_scn.apply_gradient_to_symbols(character.input_symbol, 5, fg_gradient=char_gradient)

    # make rotation waypoints
    ring_paths: list[motion.Path] = []
    character_starting_index = len(self.characters)
    coords = self.clockwise_coords if clockwise else self.counter_clockwise_coords
    for coord in coords[character_starting_index:] + coords[:character_starting_index]:
        ring_path = character.motion.new_path(path_id=str(len(ring_paths)), speed=self.rotation_speed)
        ring_path.new_waypoint(coord, waypoint_id=str(len(ring_path.waypoints)))
        ring_paths.append(ring_path)
    self.character_last_ring_path[character] = ring_paths[0]
    # make disperse scene
    disperse_scn = character.animation.new_scene(is_looping=False, scene_id="disperse")
    disperse_gradient = Gradient(self.ring_color, self.character_color_map[character], steps=8)
    disperse_scn.apply_gradient_to_symbols(character.input_symbol, 16, fg_gradient=disperse_gradient)
    character.motion.chain_paths(ring_paths, loop=True)
    self.characters.append(character)

`disperse()`

Disperse the characters.

Source code in terminaltexteffects/effects/effect_rings.py

def disperse(self) -> None:
    """Disperse the characters."""
    for character in self.characters:
        if character.motion.active_path is not None:
            self.character_last_ring_path[character] = character.motion.active_path
        else:
            self.character_last_ring_path[character] = character.motion.paths["0"]
        character.motion.activate_path(self.make_disperse_waypoints(character, character.motion.current_coord))
        character.animation.activate_scene(character.animation.query_scene("disperse"))

`make_disperse_waypoints(character, origin)`

Make waypoints for the disperse path.

Parameters:

Name	Type	Description	Default
`character`	`EffectCharacter`	Character to disperse.	required
`origin`	`Coord`	Origin of the disperse path.	required

Returns:

Type	Description
`Path`	motion.Path: Disperse path.

Source code in terminaltexteffects/effects/effect_rings.py

def make_disperse_waypoints(self, character: EffectCharacter, origin: Coord) -> motion.Path:
    """Make waypoints for the disperse path.

    Args:
        character (EffectCharacter): Character to disperse.
        origin (Coord): Origin of the disperse path.

    Returns:
        motion.Path: Disperse path.

    """
    disperse_coords = geometry.find_coords_in_rect(origin, self.ring_gap)
    character.motion.paths.pop("disperse", None)
    disperse_path = character.motion.new_path(speed=0.1, loop=True, path_id="disperse")
    for _ in range(5):
        disperse_path.new_waypoint(disperse_coords[random.randrange(0, len(disperse_coords))])
    return disperse_path

`spin()`

Spin the ring.

Source code in terminaltexteffects/effects/effect_rings.py

def spin(self) -> None:
    """Spin the ring."""
    for character in self.characters:
        condense_path = character.motion.new_path(speed=0.1)
        condense_path.new_waypoint(self.character_last_ring_path[character].waypoints[0].coord)
        character.event_handler.register_event(
            EventHandler.Event.PATH_COMPLETE,
            condense_path,
            EventHandler.Action.ACTIVATE_PATH,
            self.character_last_ring_path[character],
        )
        character.motion.activate_path(condense_path)
        character.animation.activate_scene(character.animation.query_scene("gradient"))

`init(effect)`

Initialize the effect iterator.

Source code in terminaltexteffects/effects/effect_rings.py

def __init__(self, effect: Rings) -> None:
    """Initialize the effect iterator."""
    super().__init__(effect)
    self.pending_chars: list[EffectCharacter] = []
    self.ring_chars: list[EffectCharacter] = []
    self.non_ring_chars: list[EffectCharacter] = []
    self.rings: dict[int, RingsIterator.Ring] = {}
    self.ring_gap = int(
        max(round(min(self.terminal.canvas.top, self.terminal.canvas.right) * self.config.ring_gap), 1),
    )
    self.character_final_color_map: dict[EffectCharacter, Color] = {}
    self.build()

`next()`

Return the next frame in the animation.

Source code in terminaltexteffects/effects/effect_rings.py

def __next__(self) -> str:
    """Return the next frame in the animation."""
    if self._phase != "complete":
        if self._phase == "start":
            if not self._initial_phase_time_remaining:
                self._phase = "disperse"
            else:
                self._initial_phase_time_remaining -= 1

        elif self._phase == "disperse":
            if not self._initial_disperse_complete:
                self._initial_disperse_complete = True
                for ring in self._rings_list:
                    for character in ring.characters:
                        disperse_path = ring.make_disperse_waypoints(
                            character,
                            character.motion.paths["0"].waypoints[0].coord,
                        )
                        initial_path = character.motion.new_path(speed=0.3, ease=easing.out_cubic)
                        initial_path.new_waypoint(disperse_path.waypoints[0].coord)
                        character.event_handler.register_event(
                            EventHandler.Event.PATH_COMPLETE,
                            initial_path,
                            EventHandler.Action.ACTIVATE_PATH,
                            disperse_path,
                        )
                        character.animation.activate_scene(character.animation.query_scene("disperse"))
                        character.motion.activate_path(initial_path)
                        self.active_characters.add(character)

                for character in self.non_ring_chars:
                    character.motion.activate_path(character.motion.query_path("external"))
                    self.active_characters.add(character)

            elif not self._disperse_time_remaining:
                self._phase = "spin"
                self._cycles_remaining -= 1
                self._spin_time_remaining = self.config.spin_duration
                for ring in self._rings_list:
                    ring.spin()
            else:
                self._disperse_time_remaining -= 1

        elif self._phase == "spin":
            if not self._spin_time_remaining:
                if not self._cycles_remaining:
                    self._phase = "final"
                    for character in self.terminal.get_characters():
                        self.terminal.set_character_visibility(character, is_visible=True)
                        character.motion.activate_path(character.motion.query_path("home"))
                        self.active_characters.add(character)
                        if "external" in character.motion.paths:
                            continue
                        character.animation.activate_scene(character.animation.query_scene("disperse"))
                else:
                    self._disperse_time_remaining = self.config.disperse_duration
                    for ring in self._rings_list:
                        ring.disperse()
                    self._phase = "disperse"

            else:
                self._spin_time_remaining -= 1

        elif self._phase == "final" and not self.active_characters:
            self._phase = "complete"

        self.update()
        return self.frame
    raise StopIteration

`build()`

Build the initial state of the effect.

Source code in terminaltexteffects/effects/effect_rings.py

def build(self) -> None:
    """Build the initial state of the effect."""
    self.ring_gap = int(
        max(round(min(self.terminal.canvas.top, self.terminal.canvas.right) * self.config.ring_gap), 1),
    )
    final_gradient = Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
    final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.text_bottom,
        self.terminal.canvas.text_top,
        self.terminal.canvas.text_left,
        self.terminal.canvas.text_right,
        self.config.final_gradient_direction,
    )
    for character in self.terminal.get_characters():
        self.character_final_color_map[character] = final_gradient_mapping[character.input_coord]
        start_scn = character.animation.new_scene()
        start_scn.add_frame(
            character.input_symbol,
            1,
            colors=ColorPair(fg=self.character_final_color_map[character]),
        )
        home_path = character.motion.new_path(speed=0.8, ease=easing.out_quad, path_id="home")
        home_path.new_waypoint(character.input_coord)
        character.animation.activate_scene(start_scn)
        self.terminal.set_character_visibility(character, is_visible=True)
        self.pending_chars.append(character)

    random.shuffle(self.pending_chars)
    # make rings
    for radius in range(1, max(self.terminal.canvas.right, self.terminal.canvas.top), self.ring_gap):
        ring_coords = geometry.find_coords_on_circle(self.terminal.canvas.center, radius, 7 * radius, unique=True)
        # check if any part of the ring is in the canvas, if not, stop creating rings
        if (
            len([coord for coord in ring_coords if self.terminal.canvas.coord_is_in_canvas(coord)])
            / len(ring_coords)
            < 0.25
        ):
            break

        self.rings[radius] = RingsIterator.Ring(
            self.config,
            radius,
            self.terminal.canvas.center,
            ring_coords,
            self.ring_gap,
            self.config.ring_colors[len(self.rings) % len(self.config.ring_colors)],
            self.character_final_color_map,
        )
    # assign characters to rings
    for ring_count, ring in enumerate(self.rings.values()):
        for _ in ring.counter_clockwise_coords:
            if self.pending_chars:
                next_character = self.pending_chars.pop(0)
                # set rings to rotate in opposite directions
                ring.add_character(next_character, clockwise=ring_count % 2)
                self.ring_chars.append(next_character)

    # make external waypoints for characters not in rings
    for character in self.terminal.get_characters():
        if character not in self.ring_chars:
            external_path = character.motion.new_path(path_id="external", speed=0.8, ease=easing.out_sine)
            external_path.new_waypoint(self.terminal.canvas.random_coord(outside_scope=True))

            self.non_ring_chars.append(character)
            character.event_handler.register_event(
                EventHandler.Event.PATH_COMPLETE,
                external_path,
                EventHandler.Action.CALLBACK,
                EventHandler.Callback(self.terminal.set_character_visibility, False),  # noqa: FBT003
            )
    self._rings_list = list(self.rings.values())
    self._phase = "start"
    self._initial_disperse_complete = False
    self._spin_time_remaining = self.config.spin_duration
    self._disperse_time_remaining = self.config.disperse_duration
    self._cycles_remaining = self.config.spin_disperse_cycles
    self._initial_phase_time_remaining = 100

`get_effect_and_args()`

Get the effect class and its configuration class.

Source code in terminaltexteffects/effects/effect_rings.py

def get_effect_and_args() -> tuple[type[typing.Any], type[ArgsDataClass]]:
    """Get the effect class and its configuration class."""
    return Rings, RingsConfig

Rings

Quick Start

Rings

RingsConfig dataclass

disperse_duration = ArgField(cmd_name=['--disperse-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames spent in the dispersed state between spinning cycles.') class-attribute instance-attribute

final_gradient_direction = ArgField(cmd_name='--final-gradient-direction', type_parser=argvalidators.GradientDirection.type_parser, default=Gradient.Direction.VERTICAL, metavar=argvalidators.GradientDirection.METAVAR, help='Direction of the final gradient.') class-attribute instance-attribute

ring_gap = ArgField(cmd_name=['--ring-gap'], type_parser=argvalidators.PositiveFloat.type_parser, default=0.1, help='Distance between rings as a percent of the smallest canvas dimension.') class-attribute instance-attribute

spin_disperse_cycles = ArgField(cmd_name=['--spin-disperse-cycles'], type_parser=argvalidators.PositiveInt.type_parser, default=3, help='Number of times the animation will cycles between spinning rings and dispersed characters.') class-attribute instance-attribute

spin_duration = ArgField(cmd_name=['--spin-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames for each cycle of the spin phase.') class-attribute instance-attribute

get_effect_class() classmethod

RingsIterator

Ring

__init__(config, radius, origin, ring_coords, ring_gap, ring_color, character_color_map)

add_character(character, clockwise)

disperse()

make_disperse_waypoints(character, origin)

spin()

__init__(effect)

__next__()

build()

get_effect_and_args()

`Rings`

`RingsConfig` `dataclass`

`disperse_duration = ArgField(cmd_name=['--disperse-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames spent in the dispersed state between spinning cycles.')` `class-attribute` `instance-attribute`

`final_gradient_direction = ArgField(cmd_name='--final-gradient-direction', type_parser=argvalidators.GradientDirection.type_parser, default=Gradient.Direction.VERTICAL, metavar=argvalidators.GradientDirection.METAVAR, help='Direction of the final gradient.')` `class-attribute` `instance-attribute`

`ring_gap = ArgField(cmd_name=['--ring-gap'], type_parser=argvalidators.PositiveFloat.type_parser, default=0.1, help='Distance between rings as a percent of the smallest canvas dimension.')` `class-attribute` `instance-attribute`

`spin_disperse_cycles = ArgField(cmd_name=['--spin-disperse-cycles'], type_parser=argvalidators.PositiveInt.type_parser, default=3, help='Number of times the animation will cycles between spinning rings and dispersed characters.')` `class-attribute` `instance-attribute`

`spin_duration = ArgField(cmd_name=['--spin-duration'], type_parser=argvalidators.PositiveInt.type_parser, default=200, help='Number of frames for each cycle of the spin phase.')` `class-attribute` `instance-attribute`

`get_effect_class()` `classmethod`

`RingsIterator`

`Ring`

`init(config, radius, origin, ring_coords, ring_gap, ring_color, character_color_map)`

`add_character(character, clockwise)`

`disperse()`

`make_disperse_waypoints(character, origin)`

`spin()`

`init(effect)`

`next()`

`build()`

`get_effect_and_args()`
