Smoke

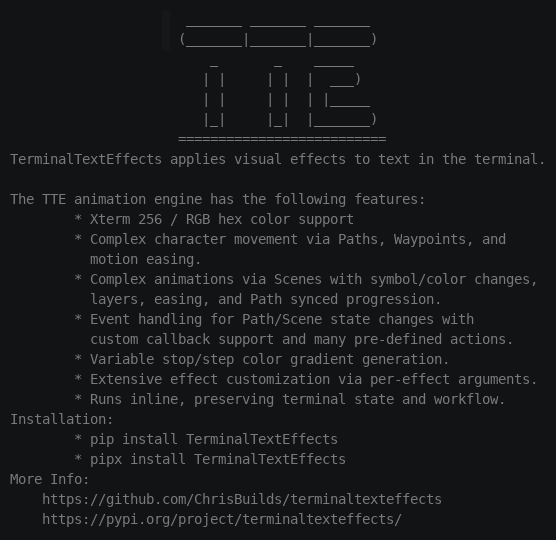

Demo

Quick Start

smoke.py
from terminaltexteffects.effects import Smoke

effect = Smoke("YourTextHere")
with effect.terminal_output() as terminal:
    for frame in effect:
        terminal.print(frame)

Smoke floods the canvas colorizing any characters it crosses.

Classes:

Name Description
Smoke

Smoke effect class.
SmokeConfig

Configuration dataclass for the Smoke effect.
SmokeIterator

Effect iterator for the Smoke effect.

Smoke

Bases: BaseEffect[SmokeConfig]

Smoke floods the canvas colorizing any characters it crosses.

Source code in terminaltexteffects/effects/effect_smoke.py
226
227
228
229
230
231
232
233
234
235
class Smoke(BaseEffect[SmokeConfig]):
    """Smoke floods the canvas colorizing any characters it crosses."""

    @property
    def _config_cls(self) -> type[SmokeConfig]:
        return SmokeConfig

    @property
    def _iterator_cls(self) -> type[SmokeIterator]:
        return SmokeIterator

SmokeConfig dataclass

Bases: BaseConfig

Effect configuration dataclass.

Source code in terminaltexteffects/effects/effect_smoke.py
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
@dataclass
class SmokeConfig(BaseConfig):
    """Effect configuration dataclass."""

    parser_spec: ParserSpec = ParserSpec(
        name="smoke",
        help="Smoke floods the canvas colorizing any characters it crosses.",
        description="Smoke floods the canvas colorizing any characters it crosses.",
        epilog="Example: terminaltexteffects smoke --starting-color 7A7A7A --smoke-symbols ░ ▒ ▓ ▒ ░ "
        "--smoke-gradient-stops 242424 FFFFFF --use-whole-canvas --final-gradient-stops 8A008A 00D1FF "
        "ffffff --final-gradient-steps 12 --final-gradient-direction vertical ",
    )

    starting_color: tte.Color = ArgSpec(
        name="--starting-color",
        type=argutils.ColorArg.type_parser,
        default=tte.Color("#7A7A7A"),
        metavar=argutils.ColorArg.METAVAR,
        help="Color of the text before being colorized by the smoke.",
    )  # pyright: ignore[reportAssignmentType]
    "tte.Color : Color of the text before being colorized by the smoke."

    smoke_symbols: tuple[str, ...] = ArgSpec(
        name="--smoke-symbols",
        type=argutils.Symbol.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=("░", "▒", "▓", "▒", "░"),
        metavar=argutils.Symbol.METAVAR,
        help=("Symbols to use for the smoke. Strings will be used in sequence to create an animation."),
    )  # pyright: ignore[reportAssignmentType]

    ("tuple[str, ...]: Symbols to use for the smoke. Strings will be used in sequence to create an animation.")

    smoke_gradient_stops: tuple[tte.Color, ...] = ArgSpec(
        name="--smoke-gradient-stops",
        type=argutils.ColorArg.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(tte.Color("#242424"), tte.Color("#FFFFFF")),
        metavar=argutils.ColorArg.METAVAR,
        help=(
            "Space separated, unquoted, list of colors for the smoke gradient. "
            "Smoke will transition through this gradient before moving through the final gradient stops. "
        ),
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[Color, ...]: Space separated, unquoted, list of colors for the smoke gradient. "
        "Smoke will transition through this gradient before moving through the final gradient stops. "
    )

    use_whole_canvas: bool = ArgSpec(
        name="--use-whole-canvas",
        action="store_true",
        default=False,
        help="If True, the entire canvas will be flooded. Otherwise the effect is limited to the text boundary.",
    )  # pyright: ignore[reportAssignmentType]
    "bool : If True, the entire canvas will be flooded. Otherwise the effect is limited to the text boundary."

    final_gradient_stops: tuple[tte.Color, ...] = ArgSpec(
        name="--final-gradient-stops",
        type=argutils.ColorArg.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(tte.Color("#8A008A"), tte.Color("#00D1FF"), tte.Color("#FFFFFF")),
        metavar=argutils.ColorArg.METAVAR,
        help=(
            "Space separated, unquoted, list of colors for the character gradient (applied across the canvas). "
            "If only one color is provided, the characters will be displayed in that color."
        ),
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[Color, ...]: Space separated, unquoted, list of colors for the character gradient "
        "(applied across the canvas). If only one color is provided, the characters will be displayed in that color."
    )

    final_gradient_steps: tuple[int, ...] | int = ArgSpec(
        name="--final-gradient-steps",
        type=argutils.PositiveInt.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(12,),
        metavar=argutils.PositiveInt.METAVAR,
        help=(
            "Space separated, unquoted, list of the number of gradient steps to use. More steps will "
            "create a smoother and longer gradient animation."
        ),
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[int, ...] | int: Space separated, unquoted, list of the number of gradient steps to use. More "
        "steps will create a smoother and longer gradient animation."
    )

    final_gradient_direction: tte.Gradient.Direction = ArgSpec(
        name="--final-gradient-direction",
        type=argutils.GradientDirection.type_parser,
        default=tte.Gradient.Direction.VERTICAL,
        metavar=argutils.GradientDirection.METAVAR,
        help="Direction of the final gradient.",
    )  # pyright: ignore[reportAssignmentType]
    "Gradient.Direction : Direction of the final gradient."

final_gradient_direction = ArgSpec(name='--final-gradient-direction', type=(argutils.GradientDirection.type_parser), default=(tte.Gradient.Direction.VERTICAL), metavar=(argutils.GradientDirection.METAVAR), help='Direction of the final gradient.') class-attribute instance-attribute

Gradient.Direction : Direction of the final gradient.

final_gradient_steps = ArgSpec(name='--final-gradient-steps', type=(argutils.PositiveInt.type_parser), nargs='+', action=(argutils.TupleAction), default=(12,), metavar=(argutils.PositiveInt.METAVAR), help='Space separated, unquoted, list of the number of gradient steps to use. More steps will create a smoother and longer gradient animation.') class-attribute instance-attribute

tuple[int, ...] | int: Space separated, unquoted, list of the number of gradient steps to use. More steps will create a smoother and longer gradient animation.

final_gradient_stops = ArgSpec(name='--final-gradient-stops', type=(argutils.ColorArg.type_parser), nargs='+', action=(argutils.TupleAction), default=(tte.Color('#8A008A'), tte.Color('#00D1FF'), tte.Color('#FFFFFF')), metavar=(argutils.ColorArg.METAVAR), help='Space separated, unquoted, list of colors for the character gradient (applied across the canvas). If only one color is provided, the characters will be displayed in that color.') class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the character gradient (applied across the canvas). If only one color is provided, the characters will be displayed in that color.

smoke_gradient_stops = ArgSpec(name='--smoke-gradient-stops', type=(argutils.ColorArg.type_parser), nargs='+', action=(argutils.TupleAction), default=(tte.Color('#242424'), tte.Color('#FFFFFF')), metavar=(argutils.ColorArg.METAVAR), help='Space separated, unquoted, list of colors for the smoke gradient. Smoke will transition through this gradient before moving through the final gradient stops. ') class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the smoke gradient. Smoke will transition through this gradient before moving through the final gradient stops.

smoke_symbols = ArgSpec(name='--smoke-symbols', type=(argutils.Symbol.type_parser), nargs='+', action=(argutils.TupleAction), default=('░', '▒', '▓', '▒', '░'), metavar=(argutils.Symbol.METAVAR), help='Symbols to use for the smoke. Strings will be used in sequence to create an animation.') class-attribute instance-attribute

tuple[str, ...]: Symbols to use for the smoke. Strings will be used in sequence to create an animation.

starting_color = ArgSpec(name='--starting-color', type=(argutils.ColorArg.type_parser), default=(tte.Color('#7A7A7A')), metavar=(argutils.ColorArg.METAVAR), help='Color of the text before being colorized by the smoke.') class-attribute instance-attribute

tte.Color : Color of the text before being colorized by the smoke.

use_whole_canvas = ArgSpec(name='--use-whole-canvas', action='store_true', default=False, help='If True, the entire canvas will be flooded. Otherwise the effect is limited to the text boundary.') class-attribute instance-attribute

bool : If True, the entire canvas will be flooded. Otherwise the effect is limited to the text boundary.

SmokeIterator

Bases: BaseEffectIterator[SmokeConfig]

Effect iterator for the Smoke effect.

Source code in terminaltexteffects/effects/effect_smoke.py
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
class SmokeIterator(BaseEffectIterator[SmokeConfig]):
    """Effect iterator for the Smoke effect."""

    def __init__(self, effect: Smoke) -> None:
        """Initialize the effect iterator.

        Args:
            effect (NamedEffect): The effect to iterate over.

        """
        super().__init__(effect)
        self.pending_chars: list[tte.EffectCharacter] = []
        self.character_final_color_map: dict[tte.EffectCharacter, tte.Color] = {}
        self.gen_alg = PrimsWeighted(self.terminal, limit_to_text_boundary=not self.config.use_whole_canvas)
        self.fill_alg = BreadthFirst(
            self.terminal,
            starting_char=self.terminal.get_character_by_input_coord(
                self.terminal.canvas.random_coord(within_text_boundary=not self.config.use_whole_canvas),
            ),
            limit_to_text_boundary=not self.config.use_whole_canvas,
        )
        self.build()

    def build(self) -> None:
        """Build the effect."""
        final_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        blk = tte.Color("#000000")
        smoke_gradient = tte.Gradient(
            *self.config.smoke_gradient_stops,
            *self.config.final_gradient_stops[::-1],
            steps=(3, 4),
        )
        for character in self.terminal.get_characters(inner_fill_chars=True, outer_fill_chars=True):
            self.terminal.set_character_visibility(character=character, is_visible=True)
            character.animation.set_appearance(
                character.input_symbol,
                colors=tte.ColorPair(fg=self.config.starting_color),
            )
            self.character_final_color_map[character] = final_gradient_mapping.get(
                character.input_coord,
                blk,
            )
            paint_gradient = tte.Gradient(
                *self.config.final_gradient_stops,
                final_gradient_mapping.get(character.input_coord, blk),
                steps=5,
            )
            paint_chars = (character.input_symbol,)
            paint_scn = character.animation.new_scene(scene_id="paint")
            paint_scn.apply_gradient_to_symbols(paint_chars, duration=5, fg_gradient=paint_gradient)

            smoke_scn = character.animation.new_scene(scene_id="smoke")
            smoke_scn.apply_gradient_to_symbols(self.config.smoke_symbols, 3, fg_gradient=smoke_gradient)
            character.event_handler.register_event(
                event=tte.Event.SCENE_COMPLETE,
                caller=smoke_scn,
                action=tte.Action.ACTIVATE_SCENE,
                target=paint_scn,
            )

        while not self.gen_alg.complete:
            self.gen_alg.step()

        # trigger effects on starting char since it will not be 'explored'
        if self.fill_alg.starting_char:
            self.fill_alg.starting_char.animation.activate_scene("smoke")
            self.active_characters.add(self.fill_alg.starting_char)

    def __next__(self) -> str:
        """Return the next frame of the effect."""
        if not self.fill_alg.complete or self.active_characters:
            if not self.fill_alg.complete:
                self.fill_alg.step()
                if self.fill_alg.explored_last_step:
                    for char in self.fill_alg.explored_last_step:
                        char.animation.activate_scene("smoke")
                        self.active_characters.add(char)

            self.update()
            return self.frame
        raise StopIteration

__init__(effect)

Initialize the effect iterator.

Parameters:

Name Type Description Default
effect NamedEffect

The effect to iterate over.

 required
Source code in terminaltexteffects/effects/effect_smoke.py
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
def __init__(self, effect: Smoke) -> None:
    """Initialize the effect iterator.

    Args:
        effect (NamedEffect): The effect to iterate over.

    """
    super().__init__(effect)
    self.pending_chars: list[tte.EffectCharacter] = []
    self.character_final_color_map: dict[tte.EffectCharacter, tte.Color] = {}
    self.gen_alg = PrimsWeighted(self.terminal, limit_to_text_boundary=not self.config.use_whole_canvas)
    self.fill_alg = BreadthFirst(
        self.terminal,
        starting_char=self.terminal.get_character_by_input_coord(
            self.terminal.canvas.random_coord(within_text_boundary=not self.config.use_whole_canvas),
        ),
        limit_to_text_boundary=not self.config.use_whole_canvas,
    )
    self.build()

__next__()

Return the next frame of the effect.

Source code in terminaltexteffects/effects/effect_smoke.py
211
212
213
214
215
216
217
218
219
220
221
222
223
def __next__(self) -> str:
    """Return the next frame of the effect."""
    if not self.fill_alg.complete or self.active_characters:
        if not self.fill_alg.complete:
            self.fill_alg.step()
            if self.fill_alg.explored_last_step:
                for char in self.fill_alg.explored_last_step:
                    char.animation.activate_scene("smoke")
                    self.active_characters.add(char)

        self.update()
        return self.frame
    raise StopIteration

build()

Build the effect.

Source code in terminaltexteffects/effects/effect_smoke.py
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
def build(self) -> None:
    """Build the effect."""
    final_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
    final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.text_bottom,
        self.terminal.canvas.text_top,
        self.terminal.canvas.text_left,
        self.terminal.canvas.text_right,
        self.config.final_gradient_direction,
    )
    blk = tte.Color("#000000")
    smoke_gradient = tte.Gradient(
        *self.config.smoke_gradient_stops,
        *self.config.final_gradient_stops[::-1],
        steps=(3, 4),
    )
    for character in self.terminal.get_characters(inner_fill_chars=True, outer_fill_chars=True):
        self.terminal.set_character_visibility(character=character, is_visible=True)
        character.animation.set_appearance(
            character.input_symbol,
            colors=tte.ColorPair(fg=self.config.starting_color),
        )
        self.character_final_color_map[character] = final_gradient_mapping.get(
            character.input_coord,
            blk,
        )
        paint_gradient = tte.Gradient(
            *self.config.final_gradient_stops,
            final_gradient_mapping.get(character.input_coord, blk),
            steps=5,
        )
        paint_chars = (character.input_symbol,)
        paint_scn = character.animation.new_scene(scene_id="paint")
        paint_scn.apply_gradient_to_symbols(paint_chars, duration=5, fg_gradient=paint_gradient)

        smoke_scn = character.animation.new_scene(scene_id="smoke")
        smoke_scn.apply_gradient_to_symbols(self.config.smoke_symbols, 3, fg_gradient=smoke_gradient)
        character.event_handler.register_event(
            event=tte.Event.SCENE_COMPLETE,
            caller=smoke_scn,
            action=tte.Action.ACTIVATE_SCENE,
            target=paint_scn,
        )

    while not self.gen_alg.complete:
        self.gen_alg.step()

    # trigger effects on starting char since it will not be 'explored'
    if self.fill_alg.starting_char:
        self.fill_alg.starting_char.animation.activate_scene("smoke")
        self.active_characters.add(self.fill_alg.starting_char)

get_effect_resources()

Get the command, effect class, and configuration class for the effect.

Returns:

Type Description
tuple[str, type[BaseEffect], type[BaseConfig]]

tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.
Source code in terminaltexteffects/effects/effect_smoke.py
23
24
25
26
27
28
29
30
def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Get the command, effect class, and configuration class for the effect.

    Returns:
        tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.

    """
    return "smoke", Smoke, SmokeConfig
