Performance

A frame has about 16 milliseconds at 60 frames per second (see the Engine chapter on Performance). In a 3D effect, the world's part of update() is usually the most expensive thing in the frame: stepping the world, projecting characters and painting drawn bodies. This chapter shows what it costs and how to keep it inside the budget.

The idea

The world does two kinds of work, and they grow with different things:

Work	Grows with
Drawing bodies	The number of triangles in drawn bodies, and the number of cells they cover. Each triangle is projected and filled cell by cell into the depth buffer.
Placing characters	The number of characters. Whenever the camera or any body moves, turns or scales, every character is projected to a cell again.

Bodies that are neither drawn nor carrying characters cost almost nothing, and on a frame where nothing in the world moves, placing characters costs nothing. A drawn body that has finished its tweens and hasn't moved is still drawn every frame, because the world doesn't know whether anything else in the scene changed.

Camera movement and frame cost

An unchanged default camera uses the default projection path. A moved or turned camera also transforms world points into its view coordinates. The renderer prepares those coordinates once per vertex for a mesh and reuses them for near-plane clipping, two-sided fills and depth-tested wireframe work. Characters are projected one at a time.

Camera movement can change the number of covered cells far more than the arithmetic cost of that view transform. A dolly close to a large face or a strong zoom may fill the canvas. Keep wide shots and close shots in the same benchmark scenario, and compare frame counts and output before making timing claims. The measurements below don't include the camera lessons.

Measured costs

These are the guide's own examples on the concept input, on an 80 by 24 canvas with the frame-rate limit off. Each time is the median of five runs, divided by the frames the example produces. They were measured at revision 0985894 with Python 3.14 on an Intel Xeon. Your times will differ with the processor and Python version. Treat them as a rough guide to which examples cost more, and measure your own effect on the machines you care about.

Example	What it draws	Time per frame
Card	The text plane turning	1.1 ms
Wireframe solids	Four solids as edges	2.0 ms
Cubes	Three shaded cubes	2.8 ms
Depth	A cube and a sphere	3.2 ms
Depth --see-through	One textured cube, its far side shown with back="dim"	3.4 ms
Gallery	Ten shapes, two or three at a time	3.9 ms
Light	A shaded sphere	4.5 ms
Spinning logo	The text plane turning, with lighting scenes	4.7 ms
Light --shape torus	A shaded torus	5.7 ms
Texture --text	A textured cube and a textured sphere	6.1 ms
Globe	A textured sphere, 48 by 24, back faces shown	16.0 ms

Every example but the globe fits comfortably in the budget, and the globe uses all of it. Here's the same sphere drawn different ways, timing the world's part of a frame alone, on the same revision and machine:

Sphere, radius 20	Time per step
8 by 4, Shaded()	1.9 ms
16 by 8, Shaded()	3.2 ms
24 by 12, Shaded()	3.8 ms
32 by 16, Shaded()	5.2 ms
48 by 24, Shaded()	8.2 ms
24 by 12, Textured(back="dim")	8.2 ms
48 by 24, Textured()	9.5 ms
48 by 24, Textured(back="dim")	17.0 ms

The Detail example draws three of those spheres side by side, smaller, so you can see what the extra faces buy:

tte --input-file concept_input.txt --canvas-width 80 --canvas-height 24 --anchor-text c detail

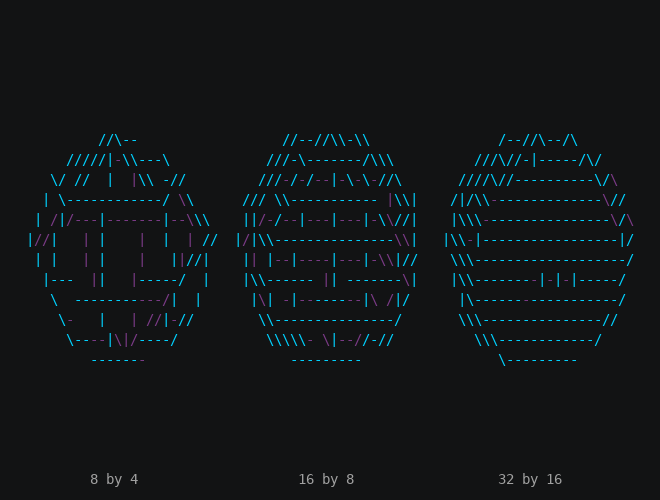

With --wireframe, the 32 by 16 sphere's edges crowd into a tangle of cells, so more detail reads worse:

The script that produced these tables is tools/perf/guide_3d_costs.py in a TTE checkout. Run it with python -m tools.perf.guide_3d_costs from the repository root to measure your own machine.

Two things stand out:

• Doubling the segments and rings costs well under four times as much, even though it makes four times the triangles: about 60% more at low detail, about twice as much from 24 by 12 to 48 by 24. The sphere covers the same cells, so each triangle covers fewer.
• Showing back faces nearly doubles it. back="dim" fills the far side too, so the world rasterizes the shape twice.

Characters on a turning text plane cost about 3.5 microseconds each per frame to place. The concept input's 304 characters take about 1.0 ms. A full 200 by 50 screen of text, 10,000 characters, takes about 35 ms, before their own ticks.

Geometry preparation

A two-sided Textured(back="dim") body transforms and projects its vertices once per frame, then reuses that geometry for the front and back fills. The fills keep independent depth buffers. Wireframes reuse edge-to-face adjacency stored on the immutable mesh instead of rebuilding it every frame. Adjacency is built on first use, so filled meshes pay no topology cost; wireframe meshes retain topology proportional to their edges.

These optimizations do not cache a rendered scene. Camera, light, gradients and body transforms are still read each step. Static-scene caching would need to track all of those mutable inputs; it remains deferred rather than risking stale output.

In TTE

• Use as few triangles as read well. At terminal resolution, a sphere with 24 segments and 12 rings looks as round as one with 48 and 24 unless it's very large. Raise the counts only when you see facets.
• Show back faces only when they add something. Textured(back=...) and Wireframe(hidden_color=...) draw the far side. Leave them off when the front hides it anyway.
• Erase what's off screen or finished. body.erase() stops drawing a body, and the world hides its drawn cells when it next paints. The world only fills cells on the canvas, so a body out of view costs little, but it is still moved and projected every frame until you erase it. Erasing only stops the drawing: queued tweens keep playing and attached characters keep riding. Use body.cancel() to drop the tweens, or world.remove(body) to do all of it: detach its children where they are and stop stepping the body.
• Attach only the characters you need. Attach the visible text, not the spaces between it, as the guide's examples do by skipping blank input cells.
• Bring finished characters home. A character on the text plane at rest costs only its own tick, so send characters home once their 3D part is over (see Attaching and detaching).
• Watch the count of drawn bodies. All ten gallery shapes at once took about 9 ms a frame. Two or three larger ones at a time take under 5 ms and read better. Many small shapes cost more than a few large ones and read worse (see 3D in a terminal).

Measuring

Time your effect with the frame-rate limit off, as in the Engine chapter:

time tte --input-file concept_input.txt --canvas-width 80 --canvas-height 24 --anchor-text c --frame-rate 0 globe > /dev/null

Divide the time by the number of frames to get the cost per frame. To find where the time goes, run the effect under Python's profiler, sorted by the time spent inside each function. The table prints after the last frame, at the end of the file:

python -m cProfile -s tottime -m terminaltexteffects --input-file concept_input.txt --frame-rate 0 globe > profile.txt

In a 3D effect, rasterize near the top means surfaces dominate, so cut triangles or back faces. project and to_world near the top, without rasterize, mean placing characters dominates, so show fewer characters, or keep the world still once its part is over. In a TTE checkout, the harness in tools/perf/ measures and profiles effects too (see Performance Testing).

At cell resolution

• The terminal shows at most a few thousand cells, so detail past that is wasted work. If two meshes look the same on screen, use the smaller one.
• A large shape fills more cells, so it costs more to draw than a small one with the same triangles. That's still usually the right trade, since large shapes read better.
• Test on a full-size terminal with --canvas-width 0 --canvas-height 0, since attached text and drawn bodies both grow with the canvas.
