Characters

Everything you see in an effect is an EffectCharacter: one symbol, at one position, with its own motion and animation. This chapter covers what a character knows about itself, how to get the characters you need, and the state that decides how each one is drawn.

What a character knows

The terminal creates one character for every non-space symbol of the input. Spaces don't become characters; the empty cells they leave are covered under Fill characters below.

Attribute	Meaning
`input_symbol`	The symbol from the input, such as `"T"`.
`input_coord`	The character's home position in the text, as a `Coord(column, row)`.
`character_id`	A unique number, assigned in creation order.
`motion`	Moves the character along paths. See Motion.
`animation`	Changes the character's symbol and colors. See Animation.
`event_handler`	Runs actions when paths and scenes start or finish. See Events.
`is_visible`	Whether the terminal draws the character. Read-only; change it through the terminal.
`is_active`	Whether the character still has an unfinished path or scene.
`layer`	Drawing order when characters overlap.

input_coord never changes. The character's current position is character.motion.current_coord, which starts at input_coord and changes as the character moves.

Getting characters

Ask the terminal for characters; never build EffectCharacter objects yourself.

Method	Returns
`terminal.get_characters()`	A flat list of characters, top to bottom and left to right unless you pass `order`.
`terminal.get_characters_grouped(order=...)`	A list of groups, such as one list per row.
`terminal.get_character_by_input_coord(coord)`	The character whose home is `coord`, or `None`.
`terminal.add_character(symbol, coord)`	A new character that isn't part of the input. See Added characters.

Both get_characters() and get_characters_grouped() accept the same ordering options:

order: a CharacterOrder, or its lowercase name such as "row_top_to_bottom".
reverse: reverse the whole traversal.
serpentine: reverse every other group, so rows alternate left-to-right and right-to-left.
input_chars, inner_fill_chars, outer_fill_chars, added_chars: which kinds of character to include. By default, only input characters are returned.

Some orders are spatial: they form groups of several characters, such as rows, diagonals, or rings around the center. Others, such as spirals and random, are individual: each group holds one character. Flattening the groups gives the same order as get_characters() with the same options.

Seeing the orders

The Reveal example effect shows one group per frame, so you can watch how an order traverses the text. Save it as reveal.py in your community effects directory:

reveal.py

"""Reveal: show the characters one group per frame, in a chosen order.

An Effect Guide example for the Characters chapter.
"""

from __future__ import annotations

from dataclasses import dataclass

from terminaltexteffects import CharacterOrder, EffectCharacter
from terminaltexteffects.engine.base_config import BaseConfig
from terminaltexteffects.engine.base_effect import BaseEffect, BaseEffectIterator
from terminaltexteffects.utils import argutils


def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Return the command name, effect class, and configuration class TTE registers."""
    return "reveal", Reveal, RevealConfig


@dataclass
class RevealConfig(BaseConfig):
    """Configuration for the Reveal effect."""

    parser_spec = argutils.ParserSpec(
        name="reveal",
        help="Reveals the characters one group per frame.",
        description="reveal | Reveals the characters one group per frame.",
        epilog="Example: tte reveal --order spiral_clockwise",
    )
    order: CharacterOrder = argutils.ArgSpec(
        name="--order",
        type=argutils.CharacterOrderArg.type_parser,
        default=CharacterOrder.ROW_TOP_TO_BOTTOM,
        metavar=" ".join(argutils.CharacterOrderArg.METAVAR),
        help="Order in which to reveal the characters.",
    )  # pyright: ignore[reportAssignmentType]
    "CharacterOrder : Order in which to reveal the characters."


class RevealIterator(BaseEffectIterator[RevealConfig]):
    """Produce the frames of the Reveal effect."""

    def __init__(self, effect: Reveal) -> None:
        """Group the characters in the configured order."""
        super().__init__(effect)
        self.groups: list[list[EffectCharacter]] = self.terminal.get_characters_grouped(order=self.config.order)
        self.groups.reverse()  # Pop groups from the end, in reveal order.

    def __next__(self) -> str:
        """Show the next group, until every group is shown."""
        if self.groups:
            for character in self.groups.pop():
                self.terminal.set_character_visibility(character, is_visible=True)
            return self.frame
        raise StopIteration


class Reveal(BaseEffect[RevealConfig]):
    """Reveals the characters one group per frame."""

    @property
    def _config_cls(self) -> type[RevealConfig]:
        return RevealConfig

    @property
    def _iterator_cls(self) -> type[RevealIterator]:
        return RevealIterator

Then save this text as concept_input.txt, the input used by every example in the engine chapters:

concept_input.txt

TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects
TerminalTextEffects TerminalTextEffects

Each command below sets a frame rate so the reveal is slow enough to follow; the animation beside it is what the command shows.

RowsDiagonalsRingsSpiral

tte --input-file concept_input.txt --frame-rate 8 reveal --order row_top_to_bottom

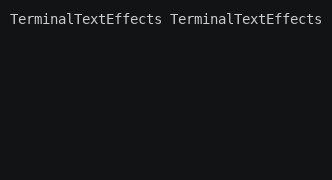

Rows revealed top to bottom, one row per frame

tte --input-file concept_input.txt --frame-rate 30 reveal --order diagonal_top_left_to_bottom_right

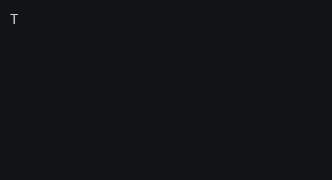

Diagonals revealed from the top left corner

tte --input-file concept_input.txt --frame-rate 15 reveal --order circle_center_to_outside

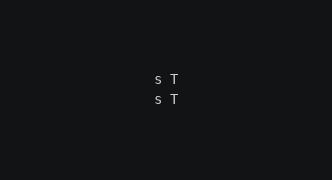

Rings revealed from the center outward

tte --input-file concept_input.txt --frame-rate 60 reveal --order spiral_clockwise

Characters revealed one at a time in a clockwise spiral

tte reveal -h lists every order.

Visibility, activity, and layers

Three pieces of state decide how the terminal treats a character each frame:

Visible: terminal.set_character_visibility(character, is_visible=True) makes the terminal draw the character. Every character starts hidden.
Active: characters in your iterator's active_characters set are ticked every frame until they finish. See Active and visible are separate.
Layer: when two visible characters occupy the same cell, the one on the higher layer is drawn on top. On the same layer, the character with the higher character_id wins. Every character starts on layer 0; set character.layer to change it.

Layers matter as soon as characters move: a character flying across the text overlaps characters that have already settled. Spray puts moving characters on layer 1 and settled ones back on layer 0, so the flying ones pass in front.

Fill characters

Cells without a character, such as spaces between words and the area around the text, can be filled with fill characters when an effect needs to animate them. Fill characters have a space as their symbol.

Inner fill characters cover empty cells inside the text's bounding box.
Outer fill characters cover the rest of the canvas.

Pass inner_fill_chars=True or outer_fill_chars=True to get_characters() to include them. They are created only when first requested, so effects that don't use them pay nothing.

Added characters

terminal.add_character(symbol, coord) creates a character that isn't part of the input, such as a spark or a falling drop. It starts hidden and inactive like any other character, and coord becomes its input_coord. Added characters aren't returned by get_character_by_input_coord() and don't appear in get_characters() unless you pass added_chars=True.

When an effect creates and recycles many short-lived characters, use a ParticlePool instead of adding new ones every frame.

Neighbors

character.neighbors maps "north", "east", "south", and "west" to the adjacent character, or None at the edge of the canvas. Reading it makes the terminal create the fill characters it needs to complete the grid, so empty cells have neighbors too. Spanning-tree effects use neighbors to grow paths through the text.

Where to go next

Tutorial step 2: Release reveals characters a few at a time with visibility and active_characters.
Canvas and coordinates explains Coord and the canvas the characters live on.
