OrbittingVolley

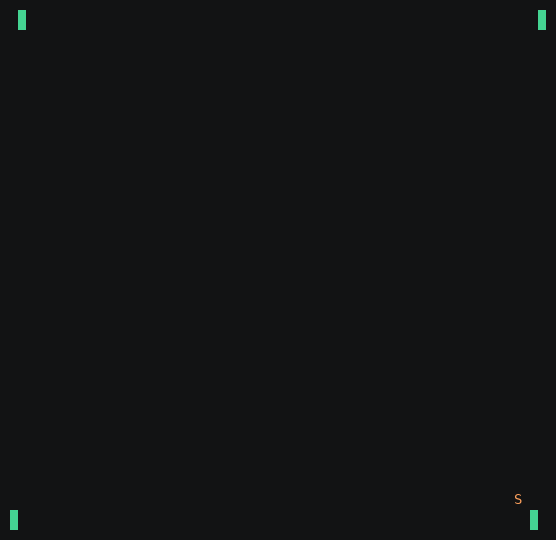

Demo

Quick Start

orbittingvolley.py
from terminaltexteffects.effects.effect_orbittingvolley import OrbittingVolley

effect = OrbittingVolley("YourTextHere")
with effect.terminal_output() as terminal:
    for frame in effect:
        terminal.print(frame)

Launch Pattern

New in 0.16.0

The ring launch pattern and the launch_delay default of 1 are on development main. In the published 0.15.0 package, launch_delay defaults to 30.

Four launchers travel along the canvas edges, firing characters from the side nearest their final position. The text builds in expanding circular rings around its center, adjusted for terminal cell height. Every character in a ring launches before the next ring opens. Up to two rings can have characters still in flight; a third waits for one of them to finish arriving. Launchers with no characters assigned in the current ring keep moving while the other launchers fire. The effect finishes after all characters arrive.

The default launch_delay is 1, leaving one animation tick between volleys. Increase it for longer pauses.

Four launchers orbit the canvas, building the input text in expanding circular rings.

Each character fires from its nearest canvas side. Up to two rings can overlap while their characters arrive.

Classes:

Name Description
OrbittingVolley

Four launchers orbit the canvas firing volleys of characters inward to build the input text from the center out.
OrbittingVolleyConfig

Configuration for the OrbittingVolley effect.
OrbittingVolleyIterator

Effect iterator for OrbittingVolley. Does not normally need to be called directly.

OrbittingVolley

Bases: BaseEffect[OrbittingVolleyConfig]

Four launchers orbit the canvas firing volleys of characters inward to build the input text from the center out.

Attributes:

Name Type Description
effect_config OrbittingVolleyConfig

Configuration for the effect.
terminal_config TerminalConfig

Configuration for the terminal.
Source code in terminaltexteffects/effects/effect_orbittingvolley.py
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
class OrbittingVolley(BaseEffect[OrbittingVolleyConfig]):
    """Four launchers orbit the canvas firing volleys of characters inward to build the input text from the center out.

    Attributes:
        effect_config (OrbittingVolleyConfig): Configuration for the effect.
        terminal_config (TerminalConfig): Configuration for the terminal.

    """

    @property
    def _config_cls(self) -> type[OrbittingVolleyConfig]:
        return OrbittingVolleyConfig

    @property
    def _iterator_cls(self) -> type[OrbittingVolleyIterator]:
        return OrbittingVolleyIterator

OrbittingVolleyConfig dataclass

Bases: BaseConfig

Configuration for the OrbittingVolley effect.

Attributes:

Name Type Description
top_launcher_symbol str

Symbol for the top launcher.
right_launcher_symbol str

Symbol for the right launcher.
bottom_launcher_symbol str

Symbol for the bottom launcher.
left_launcher_symbol str

Symbol for the left launcher.
launcher_movement_speed float

Orbitting speed of the launchers. Valid values are n > 0.
character_movement_speed float

Speed of the launched characters. Valid values are n > 0.
volley_size float

Fraction of input characters used to set the volley limit, divided among four launchers. Valid values are 0 <= n <= 1. Each launcher fires at least one character when available. Launchers fire only their nearest-side share of the active circular ring.
launch_delay int

Number of animation ticks to wait between volleys of characters. Valid values are n >= 0. Defaults to 1.
character_easing EasingFunction

Easing function to use for launched character movement.
final_gradient_stops tuple[Color, ...]

Tuple of colors for the final color gradient. If only one " "color is provided, the characters will be displayed in that color.
final_gradient_steps tuple[int, ...] | int

Tuple of the number of gradient steps to use. More steps " "will create a smoother and longer gradient animation. Valid values are n > 0.
final_gradient_direction Direction

Direction of the final gradient.
Source code in terminaltexteffects/effects/effect_orbittingvolley.py
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
@dataclass
class OrbittingVolleyConfig(BaseConfig):
    """Configuration for the OrbittingVolley effect.

    Attributes:
        top_launcher_symbol (str): Symbol for the top launcher.
        right_launcher_symbol (str): Symbol for the right launcher.
        bottom_launcher_symbol (str): Symbol for the bottom launcher.
        left_launcher_symbol (str): Symbol for the left launcher.
        launcher_movement_speed (float): Orbitting speed of the launchers. Valid values are n > 0.
        character_movement_speed (float): Speed of the launched characters. Valid values are n > 0.
        volley_size (float): Fraction of input characters used to set the volley limit, divided among four
            launchers. Valid values are 0 <= n <= 1. Each launcher fires at least one character when available.
            Launchers fire only their nearest-side share of the active circular ring.
        launch_delay (int): Number of animation ticks to wait between volleys of characters. Valid values are n >= 0.
            Defaults to 1.
        character_easing (easing.EasingFunction): Easing function to use for launched character movement.
        final_gradient_stops (tuple[Color, ...]): Tuple of colors for the final color gradient. If only one "
            "color is provided, the characters will be displayed in that color.
        final_gradient_steps (tuple[int, ...] | int): Tuple of the number of gradient steps to use. More steps "
            "will create a smoother and longer gradient animation. Valid values are n > 0.
        final_gradient_direction (Gradient.Direction): Direction of the final gradient.

    """

    parser_spec: argutils.ParserSpec = argutils.ParserSpec(
        name="orbittingvolley",
        help=(
            "Four launchers orbit the canvas firing volleys of characters inward to build the input text "
            "in expanding circular rings, firing each character from its nearest canvas side."
        ),
        description=(
            "orbittingvolley | Four launchers orbit the canvas firing volleys of characters inward to build "
            "the input text in expanding circular rings. Characters fire from their nearest canvas side; "
            "up to two rings overlap while their characters arrive."
        ),
        epilog=(
            f"{argutils.EASING_EPILOG} Example: terminaltexteffects orbittingvolley --top-launcher-symbol â–ˆ "
            "--right-launcher-symbol â–ˆ --bottom-launcher-symbol â–ˆ --left-launcher-symbol â–ˆ "
            "--launcher-movement-speed 0.8 --character-movement-speed 1.5 --volley-size 0.03 --launch-delay 1 "
            "--character-easing OUT_SINE --final-gradient-stops FFA15C 44D492 --final-gradient-steps 12 "
            "--final-gradient-direction radial"
        ),
    )
    top_launcher_symbol: str = argutils.ArgSpec(
        name="--top-launcher-symbol",
        type=argutils.Symbol.type_parser,
        default="â–ˆ",
        metavar=argutils.Symbol.METAVAR,
        help="Symbol for the top launcher.",
    )  # pyright: ignore[reportAssignmentType]
    "str : Symbol for the top launcher."

    right_launcher_symbol: str = argutils.ArgSpec(
        name="--right-launcher-symbol",
        type=argutils.Symbol.type_parser,
        default="â–ˆ",
        metavar=argutils.Symbol.METAVAR,
        help="Symbol for the right launcher.",
    )  # pyright: ignore[reportAssignmentType]
    "str : Symbol for the right launcher."

    bottom_launcher_symbol: str = argutils.ArgSpec(
        name="--bottom-launcher-symbol",
        type=argutils.Symbol.type_parser,
        default="â–ˆ",
        metavar=argutils.Symbol.METAVAR,
        help="Symbol for the bottom launcher.",
    )  # pyright: ignore[reportAssignmentType]
    "str : Symbol for the bottom launcher."

    left_launcher_symbol: str = argutils.ArgSpec(
        name="--left-launcher-symbol",
        type=argutils.Symbol.type_parser,
        default="â–ˆ",
        metavar=argutils.Symbol.METAVAR,
        help="Symbol for the left launcher.",
    )  # pyright: ignore[reportAssignmentType]
    "str : Symbol for the left launcher."

    launcher_movement_speed: float = argutils.ArgSpec(
        name="--launcher-movement-speed",
        type=argutils.PositiveFloat.type_parser,
        default=0.8,
        metavar=argutils.PositiveFloat.METAVAR,
        help="Orbitting speed of the launchers.",
    )  # pyright: ignore[reportAssignmentType]
    "float : Orbitting speed of the launchers."

    character_movement_speed: float = argutils.ArgSpec(
        name="--character-movement-speed",
        type=argutils.PositiveFloat.type_parser,
        default=1.5,
        metavar=argutils.PositiveFloat.METAVAR,
        help="Speed of the launched characters.",
    )  # pyright: ignore[reportAssignmentType]
    "float : Speed of the launched characters."

    volley_size: float = argutils.ArgSpec(
        name="--volley-size",
        type=argutils.NonNegativeRatio.type_parser,
        default=0.03,
        metavar=argutils.NonNegativeRatio.METAVAR,
        help="Fraction of input characters used to set the volley limit, divided among four launchers, from 0 to 1. "
        "Each launcher fires at least one character when available, limited to its share of the active circular ring.",
    )  # pyright: ignore[reportAssignmentType]
    "float : Fraction of input characters used to set the volley limit, divided among four launchers. "
    "Each launcher fires at least one character when available, limited to its share of the active circular ring."

    launch_delay: int = argutils.ArgSpec(
        name="--launch-delay",
        type=argutils.NonNegativeInt.type_parser,
        default=1,
        metavar=argutils.NonNegativeInt.METAVAR,
        help="Number of animation ticks to wait between volleys of characters.",
    )  # pyright: ignore[reportAssignmentType]
    "int : Number of animation ticks to wait between volleys of characters. Defaults to 1."

    character_easing: easing.EasingFunction = argutils.ArgSpec(
        name="--character-easing",
        default=easing.out_sine,
        type=argutils.Ease.type_parser,
        metavar=argutils.Ease.METAVAR,
        help="Easing function to use for launched character movement.",
    )  # pyright: ignore[reportAssignmentType]
    "easing.EasingFunction : Easing function to use for launched character movement."

    final_gradient_stops: tuple[Color, ...] = FinalGradientStopsArg(
        default=(Color("#FFA15C"), Color("#44D492")),
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[Color, ...] : Tuple of colors for the final color gradient. If only one color is provided, the "
        "characters will be displayed in that color."
    )

    final_gradient_steps: tuple[int, ...] | int = FinalGradientStepsArg(
        default=12,
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[int, ...] | int : Int or Tuple of ints for the number of gradient steps to use. More steps will "
        "create a smoother and longer gradient animation."
    )

    final_gradient_direction: Gradient.Direction = FinalGradientDirectionArg(
        default=Gradient.Direction.RADIAL,
    )  # pyright: ignore[reportAssignmentType]
    "Gradient.Direction : Direction of the final gradient."

bottom_launcher_symbol = argutils.ArgSpec(name='--bottom-launcher-symbol', type=argutils.Symbol.type_parser, default='â–ˆ', metavar=argutils.Symbol.METAVAR, help='Symbol for the bottom launcher.') class-attribute instance-attribute

str : Symbol for the bottom launcher.

character_easing = argutils.ArgSpec(name='--character-easing', default=easing.out_sine, type=argutils.Ease.type_parser, metavar=argutils.Ease.METAVAR, help='Easing function to use for launched character movement.') class-attribute instance-attribute

easing.EasingFunction : Easing function to use for launched character movement.

character_movement_speed = argutils.ArgSpec(name='--character-movement-speed', type=argutils.PositiveFloat.type_parser, default=1.5, metavar=argutils.PositiveFloat.METAVAR, help='Speed of the launched characters.') class-attribute instance-attribute

float : Speed of the launched characters.

final_gradient_direction = FinalGradientDirectionArg(default=Gradient.Direction.RADIAL) class-attribute instance-attribute

Gradient.Direction : Direction of the final gradient.

final_gradient_steps = FinalGradientStepsArg(default=12) class-attribute instance-attribute

tuple[int, ...] | int : Int or Tuple of ints for the number of gradient steps to use. More steps will create a smoother and longer gradient animation.

final_gradient_stops = FinalGradientStopsArg(default=(Color('#FFA15C'), Color('#44D492'))) class-attribute instance-attribute

tuple[Color, ...] : Tuple of colors for the final color gradient. If only one color is provided, the characters will be displayed in that color.

launch_delay = argutils.ArgSpec(name='--launch-delay', type=argutils.NonNegativeInt.type_parser, default=1, metavar=argutils.NonNegativeInt.METAVAR, help='Number of animation ticks to wait between volleys of characters.') class-attribute instance-attribute

int : Number of animation ticks to wait between volleys of characters. Defaults to 1.

launcher_movement_speed = argutils.ArgSpec(name='--launcher-movement-speed', type=argutils.PositiveFloat.type_parser, default=0.8, metavar=argutils.PositiveFloat.METAVAR, help='Orbitting speed of the launchers.') class-attribute instance-attribute

float : Orbitting speed of the launchers.

left_launcher_symbol = argutils.ArgSpec(name='--left-launcher-symbol', type=argutils.Symbol.type_parser, default='â–ˆ', metavar=argutils.Symbol.METAVAR, help='Symbol for the left launcher.') class-attribute instance-attribute

str : Symbol for the left launcher.

right_launcher_symbol = argutils.ArgSpec(name='--right-launcher-symbol', type=argutils.Symbol.type_parser, default='â–ˆ', metavar=argutils.Symbol.METAVAR, help='Symbol for the right launcher.') class-attribute instance-attribute

str : Symbol for the right launcher.

top_launcher_symbol = argutils.ArgSpec(name='--top-launcher-symbol', type=argutils.Symbol.type_parser, default='â–ˆ', metavar=argutils.Symbol.METAVAR, help='Symbol for the top launcher.') class-attribute instance-attribute

str : Symbol for the top launcher.

volley_size = argutils.ArgSpec(name='--volley-size', type=argutils.NonNegativeRatio.type_parser, default=0.03, metavar=argutils.NonNegativeRatio.METAVAR, help='Fraction of input characters used to set the volley limit, divided among four launchers, from 0 to 1. Each launcher fires at least one character when available, limited to its share of the active circular ring.') class-attribute instance-attribute

float : Fraction of input characters used to set the volley limit, divided among four launchers.

OrbittingVolleyIterator

Bases: BaseEffectIterator[OrbittingVolleyConfig]

Effect iterator for OrbittingVolley.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
class OrbittingVolleyIterator(BaseEffectIterator[OrbittingVolleyConfig]):
    """Effect iterator for OrbittingVolley."""

    class Launcher:
        """A launcher that fires characters inward to build the input text from the center out."""

        def __init__(
            self,
            terminal: Terminal,
            args: OrbittingVolleyConfig,
            starting_edge_coord: Coord,
            symbol: str,
        ) -> None:
            """Initialize the launcher.

            Args:
                terminal (Terminal): The effect Terminal.
                args (OrbittingVolleyConfig): Configuration for the effect.
                starting_edge_coord (Coord): The starting coordinate for the launcher.
                symbol (str): The symbol to use for the launcher.

            """
            self.terminal = terminal
            self.args = args
            self.character = self.terminal.add_character(symbol, starting_edge_coord)
            self.magazine: deque[EffectCharacter] = deque()

        def build_paths(self) -> None:
            """Build the paths for the launcher."""
            waypoints = [
                Coord(self.terminal.canvas.left, self.terminal.canvas.top),
                Coord(self.terminal.canvas.right, self.terminal.canvas.top),
            ]

            waypoint_start_index = waypoints.index(self.character.input_coord)
            perimeter_path = self.character.motion.new_path(
                speed=self.args.launcher_movement_speed,
                path_id="perimeter",
                layer=2,
            )
            for waypoint in waypoints[waypoint_start_index:] + waypoints[:waypoint_start_index]:
                perimeter_path.new_waypoint(waypoint)

        def launch(self) -> EffectCharacter | None:
            """Launch a character from the magazine."""
            if self.magazine:
                next_char = self.magazine.popleft()
                next_char.motion.set_coordinate(self.character.motion.current_coord)
                next_char.motion.activate_path("input_path")
                self.terminal.set_character_visibility(next_char, is_visible=True)
            else:
                next_char = None
            return next_char

    def __init__(self, effect: OrbittingVolley) -> None:
        """Initialize the effect iterator."""
        super().__init__(effect)
        self._pending_rings: deque[list[deque[EffectCharacter]]] = deque()
        self._in_flight_rings: list[set[EffectCharacter]] = []
        self._current_ring_in_flight: set[EffectCharacter] = set()
        self.final_gradient = Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        self.character_final_color_map: dict[EffectCharacter, ColorPair] = {}
        self.final_gradient_coordinate_map: dict[Coord, Color] = self.final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        self.launcher_gradient_coordinate_map: dict[Coord, Color] = self.final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.bottom,
            self.terminal.canvas.top,
            self.terminal.canvas.left,
            self.terminal.canvas.right,
            self.config.final_gradient_direction,
        )
        self.complete = False
        self.build()

    def build(self) -> None:
        """Build paths and circular rings, assigning each destination to its nearest canvas side."""
        for character in self.terminal.get_characters():
            if self.terminal.config.existing_color_handling == "dynamic":
                self.character_final_color_map[character] = ColorPair(
                    fg=character.animation.input_fg_color,
                    bg=character.animation.input_bg_color,
                )
            else:
                self.character_final_color_map[character] = ColorPair(
                    fg=self.final_gradient_coordinate_map[character.input_coord],
                )
            input_path = character.motion.new_path(
                speed=self.config.character_movement_speed,
                ease=self.config.character_easing,
                path_id="input_path",
                layer=1,
            )
            input_path.new_waypoint(character.input_coord)
            character.event_handler.register_event(
                EventHandler.Event.PATH_COMPLETE,
                input_path,
                EventHandler.Action.SET_LAYER,
                0,
            )
            character.animation.set_appearance(
                character.input_symbol,
                self.character_final_color_map[character],
            )
        self._launchers: list[OrbittingVolleyIterator.Launcher] = []
        for coord, symbol in (
            (
                Coord(self.terminal.canvas.left, self.terminal.canvas.top),
                self.config.top_launcher_symbol,
            ),
            (
                Coord(self.terminal.canvas.right, self.terminal.canvas.top),
                self.config.right_launcher_symbol,
            ),
            (
                Coord(self.terminal.canvas.right, self.terminal.canvas.bottom),
                self.config.bottom_launcher_symbol,
            ),
            (
                Coord(self.terminal.canvas.left, self.terminal.canvas.bottom),
                self.config.left_launcher_symbol,
            ),
        ):
            launcher = OrbittingVolleyIterator.Launcher(self.terminal, self.config, coord, symbol)
            launcher.character.layer = 2
            self.terminal.set_character_visibility(launcher.character, is_visible=True)
            self.active_characters.add(launcher.character)
            self._launchers.append(launcher)
        self._main_launcher = self._launchers[0]
        self._main_launcher.character.animation.set_appearance(
            self._main_launcher.character.input_symbol,
            ColorPair(fg=self.final_gradient.spectrum[-1]),
        )
        self._main_launcher.build_paths()
        self._main_launcher.character.motion.activate_path("perimeter")
        for ring in self.terminal.get_characters_grouped(argutils.CharacterGroup.CIRCLE_CENTER_TO_OUTSIDE):
            magazines: list[deque[EffectCharacter]] = [deque() for _ in self._launchers]
            for character in ring:
                side = self._nearest_side(character.input_coord, magazines)
                magazines[side].append(character)
            self._pending_rings.append(magazines)
        self._load_next_ring()
        self._delay = 0

    def _nearest_side(self, coord: Coord, magazines: list[deque[EffectCharacter]]) -> int:
        """Choose the nearest canvas side, balancing ties within the ring.

        Side indices match `_launchers`: top, right, bottom, left. Distances
        account for terminal cell height. Equal queue lengths use that stable order.
        """
        canvas = self.terminal.canvas
        distances = (
            (canvas.top - coord.row) * geometry.TERMINAL_ROW_SCALE,
            canvas.right - coord.column,
            (coord.row - canvas.bottom) * geometry.TERMINAL_ROW_SCALE,
            coord.column - canvas.left,
        )
        return min(range(4), key=lambda side: (distances[side], len(magazines[side]), side))

    def _load_next_ring(self) -> None:
        """Load the next circular ring and prepare its arrival tracker."""
        self._current_ring_in_flight = set()
        magazines = self._pending_rings.popleft()
        if len(self._launchers) != len(magazines):
            msg = "Each circular ring must have one magazine per launcher."
            raise ValueError(msg)
        for launcher, magazine in zip(self._launchers, magazines):
            launcher.magazine = magazine

    def _set_launcher_coordinates(self, parent: Launcher, child: Launcher) -> None:
        parent_progress = parent.character.motion.current_coord.column / self.terminal.canvas.right
        if child.character.input_coord == Coord(self.terminal.canvas.right, self.terminal.canvas.top):
            child_row = self.terminal.canvas.top - int(self.terminal.canvas.top * parent_progress)
            child.character.motion.set_coordinate(Coord(self.terminal.canvas.right, max(1, child_row)))
        elif child.character.input_coord == Coord(self.terminal.canvas.right, self.terminal.canvas.bottom):
            child_column = self.terminal.canvas.right - int(self.terminal.canvas.right * parent_progress)
            child.character.motion.set_coordinate(Coord(max(1, child_column), self.terminal.canvas.bottom))
        elif child.character.input_coord == Coord(self.terminal.canvas.left, self.terminal.canvas.bottom):
            child_row = self.terminal.canvas.bottom + int(self.terminal.canvas.top * parent_progress)
            child.character.motion.set_coordinate(
                Coord(self.terminal.canvas.left, min(self.terminal.canvas.top, child_row)),
            )
        color = self.launcher_gradient_coordinate_map[child.character.motion.current_coord]
        child.character.animation.set_appearance(child.character.input_symbol, ColorPair(fg=color))

    def __next__(self) -> str:
        """Launch rings in order, allowing at most two rings with characters still in flight."""
        if self._pending_rings or any(launcher.magazine for launcher in self._launchers) or self._in_flight_rings:
            if (
                self._pending_rings
                and not any(launcher.magazine for launcher in self._launchers)
                and len(self._in_flight_rings) < 2
            ):
                self._load_next_ring()
            if self._main_launcher.character.motion.active_path is None:
                perimeter_path = self._main_launcher.character.motion.query_path("perimeter")
                self._main_launcher.character.motion.set_coordinate(perimeter_path.waypoints[0].coord)  # pyright: ignore[reportOptionalMemberAccess]
                self._main_launcher.character.motion.activate_path(perimeter_path)  # pyright: ignore[reportArgumentType]
                self.active_characters.add(self._main_launcher.character)
            self._main_launcher.character.animation.set_appearance(
                self.config.top_launcher_symbol,
                ColorPair(
                    fg=self.launcher_gradient_coordinate_map[self._main_launcher.character.motion.current_coord],
                ),
            )
            for launcher in self._launchers[1:]:
                self._set_launcher_coordinates(self._main_launcher, launcher)
            if not self._delay:
                for launcher in self._launchers:
                    characters_to_launch = max(
                        int((self.config.volley_size * len(self.terminal._input_characters)) / 4),
                        1,
                    )
                    for _ in range(characters_to_launch):
                        next_char = launcher.launch()
                        if next_char:
                            self.active_characters.add(next_char)
                            if not self._current_ring_in_flight:
                                # Earlier volleys from this ring may have settled during the launch delay.
                                self._in_flight_rings.append(self._current_ring_in_flight)
                            self._current_ring_in_flight.add(next_char)
                self._delay = self.config.launch_delay
            else:
                self._delay -= 1

            self.update()
            for ring in self._in_flight_rings:
                ring.intersection_update(self.active_characters)
            self._in_flight_rings[:] = [ring for ring in self._in_flight_rings if ring]
            return self.frame
        if not self.complete:
            self.complete = True
            for launcher in self._launchers:
                self.terminal.set_character_visibility(launcher.character, is_visible=False)
            return self.frame
        raise StopIteration

Launcher

A launcher that fires characters inward to build the input text from the center out.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
class Launcher:
    """A launcher that fires characters inward to build the input text from the center out."""

    def __init__(
        self,
        terminal: Terminal,
        args: OrbittingVolleyConfig,
        starting_edge_coord: Coord,
        symbol: str,
    ) -> None:
        """Initialize the launcher.

        Args:
            terminal (Terminal): The effect Terminal.
            args (OrbittingVolleyConfig): Configuration for the effect.
            starting_edge_coord (Coord): The starting coordinate for the launcher.
            symbol (str): The symbol to use for the launcher.

        """
        self.terminal = terminal
        self.args = args
        self.character = self.terminal.add_character(symbol, starting_edge_coord)
        self.magazine: deque[EffectCharacter] = deque()

    def build_paths(self) -> None:
        """Build the paths for the launcher."""
        waypoints = [
            Coord(self.terminal.canvas.left, self.terminal.canvas.top),
            Coord(self.terminal.canvas.right, self.terminal.canvas.top),
        ]

        waypoint_start_index = waypoints.index(self.character.input_coord)
        perimeter_path = self.character.motion.new_path(
            speed=self.args.launcher_movement_speed,
            path_id="perimeter",
            layer=2,
        )
        for waypoint in waypoints[waypoint_start_index:] + waypoints[:waypoint_start_index]:
            perimeter_path.new_waypoint(waypoint)

    def launch(self) -> EffectCharacter | None:
        """Launch a character from the magazine."""
        if self.magazine:
            next_char = self.magazine.popleft()
            next_char.motion.set_coordinate(self.character.motion.current_coord)
            next_char.motion.activate_path("input_path")
            self.terminal.set_character_visibility(next_char, is_visible=True)
        else:
            next_char = None
        return next_char

__init__(terminal, args, starting_edge_coord, symbol)

Initialize the launcher.

Parameters:

Name Type Description Default
terminal Terminal

The effect Terminal.

 required
args OrbittingVolleyConfig

Configuration for the effect.

 required
starting_edge_coord Coord

The starting coordinate for the launcher.

 required
symbol str

The symbol to use for the launcher.

 required
Source code in terminaltexteffects/effects/effect_orbittingvolley.py
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
def __init__(
    self,
    terminal: Terminal,
    args: OrbittingVolleyConfig,
    starting_edge_coord: Coord,
    symbol: str,
) -> None:
    """Initialize the launcher.

    Args:
        terminal (Terminal): The effect Terminal.
        args (OrbittingVolleyConfig): Configuration for the effect.
        starting_edge_coord (Coord): The starting coordinate for the launcher.
        symbol (str): The symbol to use for the launcher.

    """
    self.terminal = terminal
    self.args = args
    self.character = self.terminal.add_character(symbol, starting_edge_coord)
    self.magazine: deque[EffectCharacter] = deque()

build_paths()

Build the paths for the launcher.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
def build_paths(self) -> None:
    """Build the paths for the launcher."""
    waypoints = [
        Coord(self.terminal.canvas.left, self.terminal.canvas.top),
        Coord(self.terminal.canvas.right, self.terminal.canvas.top),
    ]

    waypoint_start_index = waypoints.index(self.character.input_coord)
    perimeter_path = self.character.motion.new_path(
        speed=self.args.launcher_movement_speed,
        path_id="perimeter",
        layer=2,
    )
    for waypoint in waypoints[waypoint_start_index:] + waypoints[:waypoint_start_index]:
        perimeter_path.new_waypoint(waypoint)

launch()

Launch a character from the magazine.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
230
231
232
233
234
235
236
237
238
239
def launch(self) -> EffectCharacter | None:
    """Launch a character from the magazine."""
    if self.magazine:
        next_char = self.magazine.popleft()
        next_char.motion.set_coordinate(self.character.motion.current_coord)
        next_char.motion.activate_path("input_path")
        self.terminal.set_character_visibility(next_char, is_visible=True)
    else:
        next_char = None
    return next_char

__init__(effect)

Initialize the effect iterator.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
def __init__(self, effect: OrbittingVolley) -> None:
    """Initialize the effect iterator."""
    super().__init__(effect)
    self._pending_rings: deque[list[deque[EffectCharacter]]] = deque()
    self._in_flight_rings: list[set[EffectCharacter]] = []
    self._current_ring_in_flight: set[EffectCharacter] = set()
    self.final_gradient = Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
    self.character_final_color_map: dict[EffectCharacter, ColorPair] = {}
    self.final_gradient_coordinate_map: dict[Coord, Color] = self.final_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.text_bottom,
        self.terminal.canvas.text_top,
        self.terminal.canvas.text_left,
        self.terminal.canvas.text_right,
        self.config.final_gradient_direction,
    )
    self.launcher_gradient_coordinate_map: dict[Coord, Color] = self.final_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.bottom,
        self.terminal.canvas.top,
        self.terminal.canvas.left,
        self.terminal.canvas.right,
        self.config.final_gradient_direction,
    )
    self.complete = False
    self.build()

__next__()

Launch rings in order, allowing at most two rings with characters still in flight.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
def __next__(self) -> str:
    """Launch rings in order, allowing at most two rings with characters still in flight."""
    if self._pending_rings or any(launcher.magazine for launcher in self._launchers) or self._in_flight_rings:
        if (
            self._pending_rings
            and not any(launcher.magazine for launcher in self._launchers)
            and len(self._in_flight_rings) < 2
        ):
            self._load_next_ring()
        if self._main_launcher.character.motion.active_path is None:
            perimeter_path = self._main_launcher.character.motion.query_path("perimeter")
            self._main_launcher.character.motion.set_coordinate(perimeter_path.waypoints[0].coord)  # pyright: ignore[reportOptionalMemberAccess]
            self._main_launcher.character.motion.activate_path(perimeter_path)  # pyright: ignore[reportArgumentType]
            self.active_characters.add(self._main_launcher.character)
        self._main_launcher.character.animation.set_appearance(
            self.config.top_launcher_symbol,
            ColorPair(
                fg=self.launcher_gradient_coordinate_map[self._main_launcher.character.motion.current_coord],
            ),
        )
        for launcher in self._launchers[1:]:
            self._set_launcher_coordinates(self._main_launcher, launcher)
        if not self._delay:
            for launcher in self._launchers:
                characters_to_launch = max(
                    int((self.config.volley_size * len(self.terminal._input_characters)) / 4),
                    1,
                )
                for _ in range(characters_to_launch):
                    next_char = launcher.launch()
                    if next_char:
                        self.active_characters.add(next_char)
                        if not self._current_ring_in_flight:
                            # Earlier volleys from this ring may have settled during the launch delay.
                            self._in_flight_rings.append(self._current_ring_in_flight)
                        self._current_ring_in_flight.add(next_char)
            self._delay = self.config.launch_delay
        else:
            self._delay -= 1

        self.update()
        for ring in self._in_flight_rings:
            ring.intersection_update(self.active_characters)
        self._in_flight_rings[:] = [ring for ring in self._in_flight_rings if ring]
        return self.frame
    if not self.complete:
        self.complete = True
        for launcher in self._launchers:
            self.terminal.set_character_visibility(launcher.character, is_visible=False)
        return self.frame
    raise StopIteration

build()

Build paths and circular rings, assigning each destination to its nearest canvas side.

Source code in terminaltexteffects/effects/effect_orbittingvolley.py
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
def build(self) -> None:
    """Build paths and circular rings, assigning each destination to its nearest canvas side."""
    for character in self.terminal.get_characters():
        if self.terminal.config.existing_color_handling == "dynamic":
            self.character_final_color_map[character] = ColorPair(
                fg=character.animation.input_fg_color,
                bg=character.animation.input_bg_color,
            )
        else:
            self.character_final_color_map[character] = ColorPair(
                fg=self.final_gradient_coordinate_map[character.input_coord],
            )
        input_path = character.motion.new_path(
            speed=self.config.character_movement_speed,
            ease=self.config.character_easing,
            path_id="input_path",
            layer=1,
        )
        input_path.new_waypoint(character.input_coord)
        character.event_handler.register_event(
            EventHandler.Event.PATH_COMPLETE,
            input_path,
            EventHandler.Action.SET_LAYER,
            0,
        )
        character.animation.set_appearance(
            character.input_symbol,
            self.character_final_color_map[character],
        )
    self._launchers: list[OrbittingVolleyIterator.Launcher] = []
    for coord, symbol in (
        (
            Coord(self.terminal.canvas.left, self.terminal.canvas.top),
            self.config.top_launcher_symbol,
        ),
        (
            Coord(self.terminal.canvas.right, self.terminal.canvas.top),
            self.config.right_launcher_symbol,
        ),
        (
            Coord(self.terminal.canvas.right, self.terminal.canvas.bottom),
            self.config.bottom_launcher_symbol,
        ),
        (
            Coord(self.terminal.canvas.left, self.terminal.canvas.bottom),
            self.config.left_launcher_symbol,
        ),
    ):
        launcher = OrbittingVolleyIterator.Launcher(self.terminal, self.config, coord, symbol)
        launcher.character.layer = 2
        self.terminal.set_character_visibility(launcher.character, is_visible=True)
        self.active_characters.add(launcher.character)
        self._launchers.append(launcher)
    self._main_launcher = self._launchers[0]
    self._main_launcher.character.animation.set_appearance(
        self._main_launcher.character.input_symbol,
        ColorPair(fg=self.final_gradient.spectrum[-1]),
    )
    self._main_launcher.build_paths()
    self._main_launcher.character.motion.activate_path("perimeter")
    for ring in self.terminal.get_characters_grouped(argutils.CharacterGroup.CIRCLE_CENTER_TO_OUTSIDE):
        magazines: list[deque[EffectCharacter]] = [deque() for _ in self._launchers]
        for character in ring:
            side = self._nearest_side(character.input_coord, magazines)
            magazines[side].append(character)
        self._pending_rings.append(magazines)
    self._load_next_ring()
    self._delay = 0

get_effect_resources()

Get the command, effect class, and configuration class for the effect.

Returns:

Type Description
tuple[str, type[BaseEffect], type[BaseConfig]]

tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.
Source code in terminaltexteffects/effects/effect_orbittingvolley.py
28
29
30
31
32
33
34
35
def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Get the command, effect class, and configuration class for the effect.

    Returns:
        tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.

    """
    return "orbittingvolley", OrbittingVolley, OrbittingVolleyConfig
