Interactive Interface
The interactive interface lets you type and arrange text, pick an effect, adjust its options, and preview the effect on your text, all in one terminal window. It is an optional extra built on Textual, so the core package keeps no third-party dependencies.
Install
Start
| Command | What opens |
|---|---|
tte |
The interface with an empty text area. Without the extra installed, tte prints usage and the install command. |
ls -la \| tte or tte -i notes.txt |
The interface with that text loaded, when no effect is named. |
tte --tui |
The interface, with any piped or -i text loaded. Add an effect name to select it, such as tte --tui decrypt. |
tte decrypt < notes.txt |
The effect plays as usual. Naming an effect never opens the interface. |
The interface needs a terminal for output. When standard output is redirected, tte keeps its usual behavior and
tte --tui exits with an error.

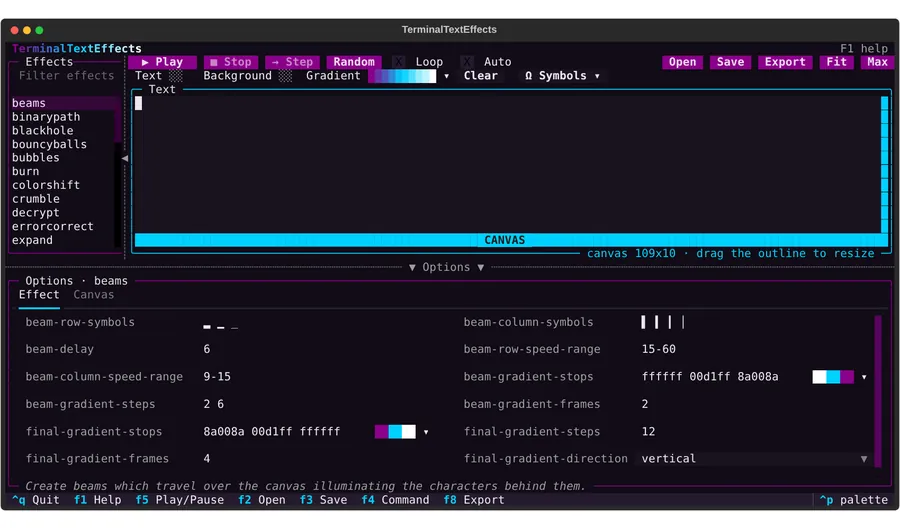

Layout
- Effects on the left lists every available effect, including community effects and any effects you are developing. Type in the filter above the list to show only effects whose name or description contains every word you type, and press Down or Enter to move into the list. Highlighting an effect shows its options. Pressing Enter on it plays it.
- The playback bar above the text has two groups. On the left, Play plays or pauses the effect, Stop returns to the text, ← and → step back and forward one frame, and Random plays a random effect, followed by the Loop and Auto (auto-replay) toggles. On the right, Open and Save load and save the text, Export saves the effect as a file, and Fit and Max size the canvas.
- The text toolbar under the playback bar colors text and inserts symbols. See Text toolbar.
- Text fills the rest of the top of the screen. Type, paste, and arrange text here. The subtitle shows the canvas size, and while an effect is shown, the frame number and the frame rate.
- Options at the bottom has two tabs. Effect holds the selected effect's options, and Canvas holds the terminal options that affect previews: canvas size and anchors, text wrapping, frame rate, color handling, and tab width.
Click the thin handle to the right of Effects, or above Options, to hide that panel and give the text more room, and click it again to bring the panel back. Ctrl+B and Ctrl+O do the same.
The interface uses a TerminalTextEffects theme in purple, cyan, and white. Other Textual themes are available from the command palette (Ctrl+P).
Option inputs follow each option's type: a checkbox for on/off options, a list for fixed choices such as gradient
directions and easing functions, which opens inside the options panel and scrolls, and a text box for everything
else. Text boxes use the same spelling as the command line. Lists are space separated, such as ff0000 00ff00
0000ff, and colors show a swatch. Hover over an option to see its help, how to write its value with an example, and
its default. An invalid value turns its name and field red, with the reason in its tooltip, and the effect won't
play until it is fixed. Changed options have their names highlighted. Clearing a field and leaving it, or pressing
Shift+F6 on an option, returns that option to its default. Each effect keeps its own values while the interface
is open. The selected effect's description is shown along the bottom of the options panel.
Picking colors
Color options open a color picker when you press F7 or Enter in the field, or click the swatch, which shows each color as a square. Choose from the 256 XTerm colors in the palette, type a hex value, or drag the hue, saturation, and lightness bars. Palette colors stay XTerm colors on the command line, and any other change gives an RGB hex color. For gradient options, the picker edits the list of stops: select a stop, change its color, and add, remove, or reorder stops while a bar previews the gradient. Press Ctrl+S or choose Apply to keep the colors, or Esc to discard them.
Text toolbar
Text and Background open the color picker for the text color and the background color. A picked color applies to the selected text and to text you type or insert afterwards. No color in the picker removes just that color, keeping the other one. Clear removes both colors from the selected text and stops coloring new text. Each chip shows its current color, or a hatched square when there is none.
Gradient shows the current gradient. Click it with text selected to spread the gradient across the selection: the box around the selected characters runs from the first stop to the last in the gradient's direction. Click its ▾, or click it with nothing selected, to build the gradient: edit its stops in the color picker, set the steps between stops and the direction (horizontal, vertical, diagonal, or radial), and choose whether it colors the text or its background. With text selected, the dialog applies the new gradient right away.
Symbols opens a palette of blocks, single and rounded lines, double lines, shapes, and arrows. Click a symbol, or move with the arrow keys and press Enter, to insert it at the cursor, replacing any selected text. The palette stays open so you can insert several symbols, and Esc or a click outside closes it.
Colors are kept with the text, as input colors are. Effects use them when
existing-color-handling on the Canvas tab is always or dynamic.
Clipboard and right-click menu
Ctrl+X, Ctrl+C, and Ctrl+V cut, copy, and paste in the text area, using the system clipboard
(pbcopy and pbpaste on macOS, clip and PowerShell on Windows, and wl-copy, xclip, or xsel elsewhere).
Most macOS terminals keep Cmd+C and Cmd+X for their own selection, which mouse support in the interface
turns off, so use the Ctrl keys or the menu. Cmd+V pastes as usual. Terminals that pass Cmd through to
applications, such as kitty, WezTerm, and Ghostty, can use the Cmd keys too.
Right-click the text, or the effect while it plays, for a menu with cut, copy, paste, and select all, the text color, background color, clear colors, and insert symbol actions, play or pause, stop, and fit or maximize the canvas. Right-clicking keeps the selection, so the menu can cut or copy it.
Playback
F5 or Play plays the selected effect on a black background. While it plays, F5 or Space pauses and resumes it. Once the effect has finished or been stopped, Play plays it again from the start, as does Ctrl+R at any time. F9 or Random plays a random effect from the listed effects. Esc, or a click on the effect, returns to the text, and a click puts the cursor where you clicked.
Right or the → button pauses the effect and shows the next frame, and Left or the ← button pauses it and steps back one frame, through the last 2,000 frames shown. After stepping back, Right steps forward through those frames again, and resuming plays them before the effect continues. Stepping back works after the effect has finished too. While you are looking at an earlier frame, the subtitle shows its number and the number of the newest frame shown.
Turn on Loop to replay the effect a second after it finishes. Loops replay the frames of the first run, so they start at once, and stop reusing them when you change an option or the text. Turn on Auto to replay the effect shortly after you change an option or highlight another effect, without leaving the field you are editing, or after you save a development effect you are working on.
Effects build their animations and draw their frames on a background thread, a few frames ahead of the screen, so the interface stays responsive while a large effect is prepared. The frame rate in the subtitle is the rate the interface manages to show, next to the frame-rate option.
Developing effects
Keep the interface open in another window while you work on an effect: it checks every effect file each second
and imports a saved file again, so the next play uses your edit. With Auto on, the selected effect replays as
soon as you save it. Options you changed keep their values while the effect still has them. This covers the built-in
effects, the community effects folder, and the directory named by
TTE_DEV_EFFECTS_DIR. In a TTE checkout, keep unfinished effects in dev_effects/ and open the interface with
python -m tools.dev --tui, which sets that directory. Changes to other modules, such as the engine or the utilities
an effect uses, need a restart.
A module that can't be played is listed in red under its file name, for example because it raises an error while importing or uses a command another effect already has. Playing it shows the error in place of the text, and the entry turns back to normal once a saved fix imports. If the effect raises an error while it plays, the last frame stays on screen and a notification names the file and line.
Export
Export (F8) renders the effect with the current options, without showing it, and saves it in the format chosen in the dialog. A panel in the bottom-right corner shows the frames rendered and the elapsed time until the file is written:
| Format | What you get | Needs |
|---|---|---|
| tterec | A recording that tte --play replays in a terminal. See recording and playback. |
Nothing else. |
| GIF | An animation of the canvas, with the last frame held for two seconds, at up to 50 frames per second. Colors are reduced to one palette of 255. | Pillow, which the tui extra installs on Python 3.10 or later. |
| WebP | The same animation as a lossless animated WebP, keeping every color and frame. | Pillow, as for GIF. |
Choosing a format changes the file's suffix, and typing a suffix chooses the format. When Pillow is missing, the
dialog says so and won't save GIF or WebP. Exporting needs a frame-rate above 0, and GIF and WebP play at
that rate. The command line makes the same files with --export.
Keys
| Key | Action |
|---|---|
| F1 | Show the keys and a few tips. |
| F5 | Play or pause the selected effect. Once it has finished, play it again from the start. |
| Space / Left Right | While an effect is shown: pause or resume it / show the frame before or after. |
| Ctrl+R | Replay the effect from the start. |
| F9 | Play a random effect. |
| Esc | Stop the effect, or clear the finished effect, and return to the text. |
| Ctrl+T / Ctrl+G | Fit the canvas exactly around the text / grow it to the whole text area. |
| Ctrl+B / Ctrl+O | Hide or show the effect list / the options panel. |
| F2 | Open a text file. |
| F3 | Save the text to a file. |
| F4 | Show the tte command for the current settings, or load a pasted command. |
| F7 | Open the color picker for the selected color option. |
| Shift+F6 | Reset the focused option to its default. |
| F6 | Reset the selected effect's options and the canvas options. |
| F8 | Export the effect to a .tterec, GIF, or WebP file. See Export. |
| Tab | Move between the effect filter, the effect list, the text, and the options. |
| Ctrl+P | Open the command palette, including themes. |
| Ctrl+Q | Quit. |
Canvas
By default the canvas is the whole text area and text is anchored to its top left, so the effect draws your text
where you typed it. To preview an effect on a smaller canvas, set canvas-width and canvas-height on the
Canvas tab. Setting either to -1 sizes it to the text, as the command line does by default. Fit (Ctrl+T)
sets the canvas to the size of the text, and Max (Ctrl+G) sets it back to the whole text area.
A cyan outline of full blocks marks the canvas, one cell outside it, and stays visible while you edit and while an
effect plays, with CANVAS in the middle of its bottom edge, or of its top edge when only that one moves. Text
outside the canvas is dimmed because the effect won't show it. An edge lights up white under the mouse, and a corner
lights both of its edges. Drag the outline to resize the canvas, and canvas-width and canvas-height update
to match. The outline is drawn on the edges that move with anchor-canvas: with the default nw anchor, the
right and bottom edges. The text area keeps one free column or row beyond each of those edges, so effects draw in a
slightly smaller area than the text area, and the outline stays visible when the canvas fills that area. The text
area shows no scrollbars, so they never cover the outline: scroll with the mouse wheel or the cursor keys, and the
subtitle says when there is more text than fits. Dragging an edge all the way out sets that dimension to 0, the
whole area.
Commands
F4 shows the tte command that plays the effect with the current options, with a button to copy it. Copying
uses the terminal's clipboard and also the system clipboard command (pbcopy on macOS, clip on Windows, and
wl-copy, xclip, or xsel elsewhere), since many terminals ignore clipboard requests from applications. The
command includes the canvas settings when they differ from the command-line defaults, so the effect plays the same
way in your terminal.
The same dialog loads a command: paste a tte command, such as one copied from the docs, and choose Load. The
interface selects its effect and applies its options. Options the command leaves out take their command-line
defaults, so the preview matches what the command plays. Its --input-file, if any, is opened, and flags the
interface doesn't offer, such as --reuse-canvas, are listed in a notice and skipped.
Files
F2, F3, and F8 open a file dialog with a folder tree and a path field. Browse the tree with the mouse or arrow keys, or type a path. Choosing a file twice, such as with a double click, opens it. When saving, choosing a folder keeps the file name you typed, and saving over an existing file asks for confirmation first. Home and Up (Ctrl+Up) change folders, and the Hidden files checkbox (Ctrl+T) shows dot files.
Input Colors
Text with ANSI colors, such as ls --color=always or fetch output, keeps its colors in the text area. Colors stay
attached to their characters as you edit, and text typed inside a colored word takes that word's color. Effects use
the colors when existing-color-handling on the Canvas tab is always or dynamic, as with
--existing-color-handling on the command line. When saving, choose whether to keep the colors in the file.
