Particles

Sparks, smoke, debris, and rain aren't part of the input text. Effects draw them with particles: extra characters that appear, play a short animation, and disappear, often many times over. ParticlePool creates these characters and reuses them, so an effect can emit thousands of particles while only a few dozen exist at once. Built-in effects that use particles include Burn, Laseretch, and Thunderstorm.

The Sparks example

Sparks reveals the text one column at a time, from left to right. Every character throws off a spark that flies up and fades from a white * through a yellow + to an orange .. Save it as sparks.py in your community effects directory:

sparks.py
"""Sparks: columns of text appear from left to right, each character throwing off a spark.

An Effect Guide example for the Particles pattern.
"""

from __future__ import annotations

import random
from dataclasses import dataclass

from terminaltexteffects import CharacterOrder, Color, ColorPair, Coord, EffectCharacter, ParticlePool, easing
from terminaltexteffects.engine.base_config import BaseConfig
from terminaltexteffects.engine.base_effect import BaseEffect, BaseEffectIterator
from terminaltexteffects.utils import argutils

SPARK_COLORS = (Color("#ffffff"), Color("#ffd000"), Color("#ff6000"))
TICKS_BETWEEN_COLUMNS = 2


def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Return the command name, effect class, and configuration class TTE registers."""
    return "sparks", Sparks, SparksConfig


@dataclass
class SparksConfig(BaseConfig):
    """Configuration for the Sparks effect."""

    parser_spec = argutils.ParserSpec(
        name="sparks",
        help="Columns of text appear from left to right, each character throwing off a spark.",
        description="sparks | Columns of text appear from left to right, each character throwing off a spark.",
        epilog="Example: tte sparks --max-sparks 8",
    )
    max_sparks: int = argutils.ArgSpec(
        name="--max-sparks",
        type=argutils.PositiveInt.type_parser,
        default=60,
        metavar=argutils.PositiveInt.METAVAR,
        help="Most sparks on screen at once.",
    )  # pyright: ignore[reportAssignmentType]
    "int : Most sparks on screen at once."


class SparksIterator(BaseEffectIterator[SparksConfig]):
    """Produce the frames of the Sparks effect."""

    def __init__(self, effect: Sparks) -> None:
        """Create the spark pool and queue the columns."""
        super().__init__(effect)
        self.ticks = 0
        self.pending_columns = self.terminal.get_characters_grouped(order=CharacterOrder.COLUMN_LEFT_TO_RIGHT)
        self.pending_columns.reverse()  # So pop() takes the leftmost column.
        self.sparks = ParticlePool(
            self.terminal,
            self.active_characters,
            "*",
            max_size=self.config.max_sparks,
            initializer=self.initialize_spark,
        )

    def initialize_spark(self, spark: EffectCharacter) -> None:
        """Set up a new spark once: its layer, its fading scene, and its return to the pool."""
        spark.layer = 1
        scene = spark.animation.new_scene(scene_id="fade")
        for symbol, color in zip("*+.", SPARK_COLORS):
            scene.add_frame(symbol, 6, colors=ColorPair(fg=color))
        self.sparks.reclaim_on_event(spark, caller=scene)

    def launch_spark(self, spark: EffectCharacter) -> None:
        """Send a spark up and to one side from where it was emitted, and start its fade."""
        start = spark.motion.current_coord
        path = spark.motion.new_path(speed=0.4, ease=easing.out_quad)
        path.new_waypoint(Coord(start.column + random.randint(-3, 3), start.row + random.randint(1, 3)))
        spark.motion.activate_path(path)
        scene = spark.animation.query_scene("fade")
        scene.reset_scene()
        spark.animation.activate_scene(scene)

    def __next__(self) -> str:
        """Reveal the next column every few ticks and return the frame."""
        if not self.pending_columns and not self.active_characters:
            raise StopIteration
        if self.pending_columns and self.ticks % TICKS_BETWEEN_COLUMNS == 0:
            for character in self.pending_columns.pop():
                self.terminal.set_character_visibility(character, is_visible=True)
                self.sparks.emit(character.input_coord, self.launch_spark)
        self.ticks += 1
        self.update()
        return self.frame


class Sparks(BaseEffect[SparksConfig]):
    """Columns of text appear from left to right, each character throwing off a spark."""

    @property
    def _config_cls(self) -> type[SparksConfig]:
        return SparksConfig

    @property
    def _iterator_cls(self) -> type[SparksIterator]:
        return SparksIterator

tte --input-file concept_input.txt sparks

Columns of text appear from left to right, throwing off sparks that rise and fade

How the pool works

A particle is an ordinary EffectCharacter created with terminal.add_character(), so it has paths, scenes, and events like any other character (see Added characters). The pool keeps track of which particles are in use and which are free.

ParticlePool(terminal, active_characters, symbols, ...) takes the iterator's active_characters, because emitting and reclaiming add particles to it and remove them from it. Its other arguments:

Argument Use
symbols The symbol for new particles, or several to choose from at random.
max_size The most particles the pool creates. None, the default, has no limit.
initial_count How many particles to create up front, instead of when first needed.
initializer A function run once for each new particle.

Setup is split between two functions:

  • The initializer runs once per particle. Sparks uses it for everything that stays the same between uses: the layer, the fade scene, and the event that returns the particle to the pool.
  • The emit callback runs on every use. Sparks's launch_spark() gives the spark a new path, resets its scene to the first frame, and activates it.

emit(origin, callback) takes a free particle, or creates one, moves it to origin, calls the callback, makes it visible, and adds it to active_characters. When a particle is reused, the pool first clears its old paths and stops its path and scene; its scenes and events are kept. Pass reset=ParticleReset(...) to emit() to clear more or less.

reclaim_on_event(particle, caller=scene) returns the particle to the pool when its scene completes: it is hidden, removed from active_characters, and becomes free again. Without a reclaim, a particle stays in use for the rest of the effect.

When the pool is full

When every particle is in use and the pool has reached max_size, emit() returns None and emits nothing. Sparks ignores the result, so characters revealed while the pool is full throw no spark. With a small pool, the effect has fewer sparks on screen:

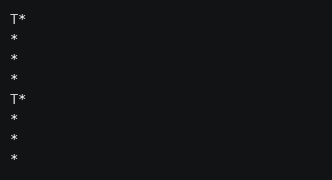

tte --input-file concept_input.txt sparks --max-sparks 8

Columns of text appear with only a few sparks at a time

A cap keeps the cost of a frame predictable on large input, since every active particle is updated every tick. Choose max_size from how many particles should be visible at once, not from the size of the text.
