Canvas and coordinates

Characters live on a canvas: a grid of cells with the input text placed somewhere inside it. This chapter explains how positions are written, how the canvas and the text area relate, and how to pick positions for your effect.

Coordinates

A position is a Coord with a column and a row:

from terminaltexteffects import Coord

home = Coord(column=10, row=3)
column, row = home  # A Coord unpacks to (column, row).

Coordinates start at 1, and the origin is the bottom left cell:

  • column increases to the right.
  • row increases upward. Row 1 is the bottom row of the canvas, which is the last line of the input.

Upward rows are the opposite of how a terminal numbers lines, so check this first when characters end up upside down. Coord is immutable and hashable, so you can use it as a dictionary key.

Canvas and text bounds

The Canvas, available as self.terminal.canvas, has two sets of bounds:

Canvas Text
Edges left, right, bottom, top text_left, text_right, text_bottom, text_top
Size width, height text_width, text_height
Center center, center_column, center_row text_center, text_center_column, text_center_row

All edges are inclusive. left and bottom are always 1. When a dimension is even, the center is the lower of the two middle cells.

By default the canvas is exactly the size of the text, so both sets of bounds are the same. Users can make the canvas larger with the terminal options --canvas-width and --canvas-height: a positive number sets the size, 0 matches the terminal, and -1 (the default) matches the text. --anchor-text then places the text inside the canvas, and --anchor-canvas places the canvas inside the terminal.

Your effect should work with any canvas size. Use canvas bounds for where things come from or go to, such as a spray origin, and text bounds for anything about the text itself, such as a gradient across it.

Seeing the canvas

The Travel example effect starts every character at the canvas's left edge, on its own row, and moves it home. Its code is shown in the Motion chapter. Here it runs on a canvas larger than the text, with the text centered:

tte --input-file concept_input.txt --canvas-width 60 --canvas-height 14 --anchor-text c travel

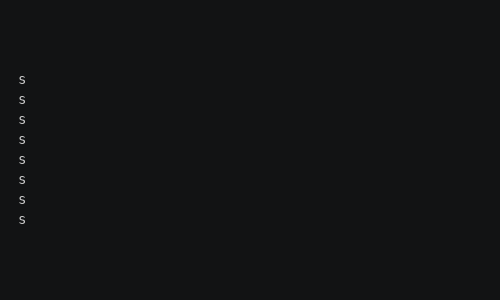

Characters cross the empty canvas from its left edge to the centered text

The characters start at column 1, the canvas's left edge, and cross the empty part of the canvas to reach the text.

Picking positions

Method Returns
canvas.random_coord() A random cell on the canvas.
canvas.random_coord(within_text_boundary=True) A random cell inside the text bounds.
canvas.random_coord(outside_scope=True) A random cell one step outside one of the four canvas edges.
canvas.random_column(), canvas.random_row() A random column or row, with the same within_text_boundary option.
canvas.coord_is_in_canvas(coord) Whether coord is on the canvas.
canvas.coord_is_in_text(coord) Whether coord is inside the text bounds.

Characters can move outside the canvas. They aren't drawn while they are outside it, which lets an effect bring characters in from beyond the edge. outside_scope=True is a convenient starting point for that.

The geometry utilities find coordinates on circles, rectangles, lines, and bezier curves, for effects that arrange characters in shapes.

Distances are measured on screen

A terminal cell is about twice as tall as it is wide. TTE accounts for this when it measures how far apart two coordinates are: one row counts as two columns. A character moving one row up travels as far, on screen, as one moving two columns sideways. Speeds and the circular character orders use this screen distance, so motion looks even in every direction.
