Spin, step 6: Options

In this step the constants become options, and the effect respects the colors of colored input. The result is the finished effect from the start of the tutorial.

Chapters used: Configuration, Color.

Update the module

Replace myspin.py with this version:

myspin.py

"""The text tumbles in from the distance as a flat sheet, spins, and settles into place.

Classes:
    MySpin: The text tumbles in from the distance as a flat sheet, spins, and settles into place.
    MySpinConfig: Configuration for the MySpin effect.
    MySpinIterator: Iterates over the effect. Does not normally need to be called directly.
"""

from __future__ import annotations

import typing
from dataclasses import dataclass

from terminaltexteffects import Color, ColorPair, EffectCharacter, Gradient, Scene, easing
from terminaltexteffects.engine.base_config import (
    BaseConfig,
    FinalGradientDirectionArg,
    FinalGradientStepsArg,
    FinalGradientStopsArg,
)
from terminaltexteffects.engine.base_effect import BaseEffect, BaseEffectIterator
from terminaltexteffects.engine.space3d import Body, Space3D
from terminaltexteffects.utils import argutils


def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Get the command, effect class, and configuration class for the effect.

    Returns:
        tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.

    """
    return "myspin", MySpin, MySpinConfig


@dataclass
class MySpinConfig(BaseConfig):
    """Configuration for the MySpin effect.

    Attributes:
        spin_turns (float): Number of turns about the vertical axis before the text settles. Valid values are n > 0.
        spin_frames (int): Number of frames from the start of the spin until the text settles. Valid values are n > 0.
        spin_easing (easing.EasingFunction): Easing function for the spin and the approach.
        start_distance (float): How far behind the canvas the text starts, in columns. Valid values are n >= 0.
        perspective (float): Strength of the perspective. 0 is a flat view. Valid values are n >= 0.
        shadow_color (Color): Color of the text when it faces away from the light.
        hide_back (bool): Hide the text while its back faces the viewer, instead of showing it mirrored in shadow.
        final_gradient_stops (tuple[Color, ...]): Tuple of colors for the final color gradient. If only one color
            is provided, the characters will be displayed in that color.
        final_gradient_steps (tuple[int, ...] | int): Tuple of the number of gradient steps to use. More steps will
            create a smoother and longer gradient animation. Valid values are n > 0.
        final_gradient_direction (Gradient.Direction): Direction of the final gradient.

    """

    parser_spec: argutils.ParserSpec = argutils.ParserSpec(
        name="myspin",
        help="The text tumbles in from the distance as a flat sheet, spins, and settles into place.",
        description="myspin | The text tumbles in from the distance as a flat sheet, spins, and settles into place.",
        epilog=(
            f"{argutils.EASING_EPILOG} Example: terminaltexteffects myspin --spin-turns 2 --spin-frames 240 "
            "--spin-easing OUT_CUBIC --start-distance 200 --perspective 1 --shadow-color 303030 "
            "--final-gradient-stops 8A008A 00D1FF ffffff --final-gradient-steps 12 "
            "--final-gradient-direction vertical"
        ),
    )

    spin_turns: float = argutils.ArgSpec(
        name="--spin-turns",
        type=argutils.PositiveFloat.type_parser,
        default=2.0,
        metavar=argutils.PositiveFloat.METAVAR,
        help="Number of turns about the vertical axis before the text settles.",
    )  # pyright: ignore[reportAssignmentType]
    "float : Number of turns about the vertical axis before the text settles."

    spin_frames: int = argutils.ArgSpec(
        name="--spin-frames",
        type=argutils.PositiveInt.type_parser,
        default=240,
        metavar=argutils.PositiveInt.METAVAR,
        help="Number of frames from the start of the spin until the text settles.",
    )  # pyright: ignore[reportAssignmentType]
    "int : Number of frames from the start of the spin until the text settles."

    spin_easing: easing.EasingFunction = argutils.ArgSpec(
        name="--spin-easing",
        type=argutils.Ease.type_parser,
        default=easing.out_cubic,
        help="Easing function for the spin and the approach.",
    )  # pyright: ignore[reportAssignmentType]
    "easing.EasingFunction : Easing function for the spin and the approach."

    start_distance: float = argutils.ArgSpec(
        name="--start-distance",
        type=argutils.NonNegativeFloat.type_parser,
        default=200.0,
        metavar=argutils.NonNegativeFloat.METAVAR,
        help="How far behind the canvas the text starts, in columns.",
    )  # pyright: ignore[reportAssignmentType]
    "float : How far behind the canvas the text starts, in columns."

    perspective: float = argutils.ArgSpec(
        name="--perspective",
        type=argutils.NonNegativeFloat.type_parser,
        default=1.0,
        metavar=argutils.NonNegativeFloat.METAVAR,
        help="Strength of the perspective. 0 is a flat view.",
    )  # pyright: ignore[reportAssignmentType]
    "float : Strength of the perspective. 0 is a flat view."

    shadow_color: Color = argutils.ArgSpec(
        name="--shadow-color",
        type=argutils.ColorArg.type_parser,
        default=Color("#303030"),
        metavar=argutils.ColorArg.METAVAR,
        help="Color of the text when it faces away from the light.",
    )  # pyright: ignore[reportAssignmentType]
    "Color : Color of the text when it faces away from the light."

    hide_back: bool = argutils.ArgSpec(
        name="--hide-back",
        default=False,
        action="store_true",
        help="Hide the text while its back faces the viewer, instead of showing it mirrored in shadow.",
    )  # pyright: ignore[reportAssignmentType]
    "bool : Hide the text while its back faces the viewer, instead of showing it mirrored in shadow."

    final_gradient_stops: tuple[Color, ...] = FinalGradientStopsArg(
        default=(Color("#8A008A"), Color("#00D1FF"), Color("#FFFFFF")),
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[Color, ...] : Tuple of colors for the final color gradient. If only one color is provided, the "
        "characters will be displayed in that color."
    )

    final_gradient_steps: tuple[int, ...] | int = FinalGradientStepsArg(
        default=12,
    )  # pyright: ignore[reportAssignmentType]
    (
        "tuple[int, ...] | int : Int or Tuple of ints for the number of gradient steps to use. More steps will "
        "create a smoother and longer gradient animation."
    )

    final_gradient_direction: Gradient.Direction = FinalGradientDirectionArg(
        default=Gradient.Direction.VERTICAL,
    )  # pyright: ignore[reportAssignmentType]
    "Gradient.Direction : Direction of the final gradient."


class MySpinIterator(BaseEffectIterator[MySpinConfig]):
    """Iterator for the MySpin effect."""

    SHADE_STEPS = 10
    """Number of colors between the shadow color and a character's final color."""

    def __init__(self, effect: MySpin) -> None:
        """Mount the text on a sheet far behind the canvas and queue its approach and spin.

        Args:
            effect (MySpin): The effect to iterate over.

        """
        super().__init__(effect)
        self.final_colors: dict[EffectCharacter, ColorPair] = {}
        self.space = Space3D(self.terminal, perspective=self.config.perspective, light="front")
        self.build()

    def build(self) -> None:
        """Build the effect."""
        dynamic = self.terminal.config.existing_color_handling == "dynamic"
        final_gradient = Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        final_gradient_mapping = final_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        # Spaces are invisible, so only those with an input background color are worth mounting.
        characters = [
            character
            for character in self.terminal.get_characters()
            if character.input_symbol != " " or character.animation.input_bg_color is not None
        ]
        for character in characters:
            if dynamic:
                colors = ColorPair(fg=character.animation.input_fg_color, bg=character.animation.input_bg_color)
            else:
                colors = ColorPair(fg=final_gradient_mapping[character.input_coord])
            self.final_colors[character] = colors
            # The mount's light reading picks the frame: shadow when the text faces away, the final color facing
            # the viewer. The background, if any, stays the same, and input colors without a foreground keep their
            # colors throughout.
            scene = character.animation.new_scene(sync=Scene.SyncMetric.LIGHT)
            if colors.fg is None:
                scene.add_frame(character.input_symbol, 1, colors=colors)
            else:
                shade = Gradient(self.config.shadow_color, typing.cast("Color", colors.fg), steps=self.SHADE_STEPS)
                for color in shade.spectrum:
                    scene.add_frame(character.input_symbol, 1, colors=ColorPair(fg=color, bg=colors.bg))
            character.animation.activate_scene(scene)
            self.terminal.set_character_visibility(character, is_visible=True)
            self.active_characters.add(character)

        # The anchors are placed for the sheet's pose at rest, so set the start pose after mounting.
        self.sheet = self.space.body()
        self.sheet.add_chars(characters, self.sheet.text_plane(characters), hide_when_facing_away=self.config.hide_back)
        self.sheet.set_position(0, 0, -self.config.start_distance)
        self.sheet.random_pose()
        frames, ease = self.config.spin_frames, self.config.spin_easing
        self.sheet.settle("y", turns=self.config.spin_turns, frames=frames, ease=ease)
        self.sheet.move_to(0, 0, 0, frames=frames, ease=ease, together=True)
        self.sheet.on_complete(self.finish)

    def finish(self, sheet: Body) -> None:
        """Release the text onto its input cells and show it in its final colors."""
        sheet.release_all()
        for character, colors in self.final_colors.items():
            character.animation.deactivate_scene()
            character.animation.set_appearance(character.input_symbol, colors)

    def __next__(self) -> str:
        """Return the next frame in the animation."""
        if self.space.animating or self.active_characters:
            self.space.step()
            self.update()
            return self.frame
        raise StopIteration


class MySpin(BaseEffect[MySpinConfig]):
    """The text tumbles in from the distance as a flat sheet, spins, and settles into place.

    Attributes:
        effect_config (MySpinConfig): Configuration for the effect.
        terminal_config (TerminalConfig): Configuration for the terminal.

    """

    @property
    def _config_cls(self) -> type[MySpinConfig]:
        return MySpinConfig

    @property
    def _iterator_cls(self) -> type[MySpinIterator]:
        return MySpinIterator

What changed

Options

Each constant is now a field of MySpinConfig, with an ArgSpec that names its command-line option, type, default and help:

Option	Default	Replaces
--spin-turns	2	The turns=2 passed to settle
--spin-frames	240	SPIN_FRAMES
--spin-easing	OUT_CUBIC	easing.out_cubic
--start-distance	200	START_DISTANCE
--perspective	1	perspective=1
--shadow-color	303030	SHADOW_COLOR
--hide-back	off	HIDE_BACK
--final-gradient-stops, --final-gradient-steps, --final-gradient-direction	8A008A 00D1FF ffffff, 12, vertical	FINAL_GRADIENT

The final gradient options use the shared FinalGradientStopsArg, FinalGradientStepsArg and FinalGradientDirectionArg from base_config, so they behave like every built-in effect's.

Colored input

With --existing-color-handling dynamic, each character keeps its input colors. build reads them into final_colors instead of the gradient color. A character with an input foreground still shades from the shadow color to that foreground, over its input background. One with no foreground keeps its input colors in a single frame throughout. Spaces with an input background are mounted too, since their color shows.

Run it

tte --input-file concept_input.txt --canvas-width 80 --canvas-height 24 --anchor-text c myspin --spin-turns 1 \
    --start-distance 60 --hide-back --final-gradient-stops ffb000 ff5fd7

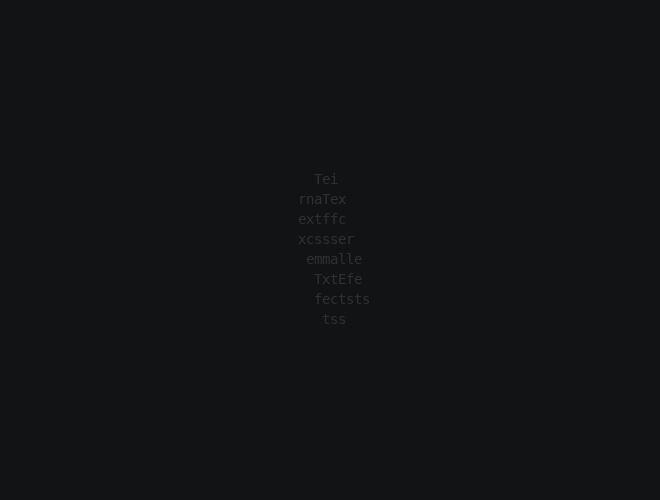

With the defaults, MySpin plays the finished effect from step 1:

Where to go next

• The Recipes show other effects built on Space3D.
• The MySpray tutorial's Step 7: Harden covers testing an effect, which applies here unchanged.
