LaserEtch

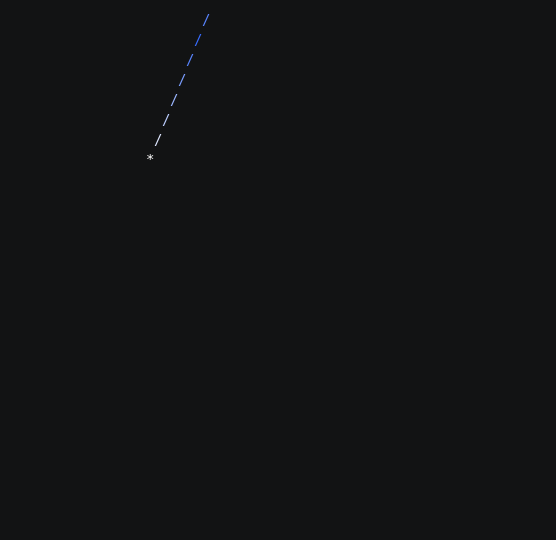

Demo

Quick Start

laseretch.py
from terminaltexteffects import Gradient
from terminaltexteffects.effects.effect_laseretch import LaserEtch

effect = LaserEtch("YourTextHere")
effect.effect_config.final_gradient_direction = Gradient.Direction.HORIZONTAL
with effect.terminal_output() as terminal:
    for frame in effect:
        terminal.print(frame)

Etch Patterns

New in 0.16.0

CharacterOrder patterns and --reverse-etch-pattern are available on development main and are not in the published 0.15.0 package.

--etch-pattern accepts algorithm and every CharacterOrder. The default algorithm follows a recursive backtracker. Group patterns reverse alternate groups for serpentine traversal; sort patterns follow the exact order returned by Terminal.get_characters().

See Spiral Sorting for the six spiral orders, their starting corners, and how multiple arms interleave.

The laser moves to each scheduled character; etch_speed controls how many characters are etched per emission and etch_delay controls the frames between emissions. Uncolored spaces retain the existing skip behavior.

tte laseretch --etch-pattern spiral_clockwise
tte laseretch --etch-pattern spiral_counter_clockwise_double --etch-speed 1

Use --reverse-etch-pattern to reverse the complete traversal while preserving group membership. The flag defaults to off. Reversed spirals travel outward along the selected path; changing clockwise to counterclockwise instead selects a different inward path. Reversal applies after serpentine traversal or after the default algorithm has built its path.

tte laseretch --etch-pattern spiral_clockwise --reverse-etch-pattern

Configurations normalize to CharacterOrder. Existing CharacterGroup and CharacterSort values and their CLI spellings remain accepted as compatibility inputs.

For library use, assign a native enum or its CLI spelling:

from terminaltexteffects.effects.effect_laseretch import LaserEtch
from terminaltexteffects import CharacterOrder

effect = LaserEtch("YourTextHere")
effect.effect_config.etch_pattern = CharacterOrder.SPIRAL_CLOCKWISE_QUAD

A laser etches characters onto the terminal.

Classes:

Name Description
LaserEtch

A laser etches characters onto the terminal.
LaserEtchConfig

Configuration for the LaserEtch effect.
LaserEtchIterator

Iterator for the LaserEtch effect.

LaserEtch

Bases: BaseEffect[LaserEtchConfig]

A laser etches characters onto the terminal.

Source code in terminaltexteffects/effects/effect_laseretch.py
517
518
519
520
521
522
523
524
525
526
class LaserEtch(BaseEffect[LaserEtchConfig]):
    """A laser etches characters onto the terminal."""

    @property
    def _config_cls(self) -> type:
        return LaserEtchConfig

    @property
    def _iterator_cls(self) -> type:
        return LaserEtchIterator

LaserEtchConfig dataclass

Bases: BaseConfig

LaserEtch effect configuration dataclass.

Attributes:

Name Type Description
reverse_etch_pattern bool

Reverse the complete traversal while preserving group membership.
etch_pattern `CharacterOrder` | `Literal['algorithm']`

Character order used to etch the text. algorithm follows a recursive backtracker. Spatial patterns reverse alternate groups for serpentine traversal; individual patterns use the exact sorted order, including clockwise and counterclockwise single, double, and quad spirals.
etch_speed int

Along with etch_delay, determines the speed at which the characters are etched onto the terminal. This value specifies the number of characters to etch simultaneously.
etch_delay int

Along with etch_speed, determines the speed at which the characters are etched onto the terminal. This values specifies the number of frames to wait before etching the next group of characters.
cool_gradient_stops tuple[Color, ...]

Space separated, unquoted, list of colors for the gradient used to cool the characters after etching. If only one color is provided, the characters will be displayed in that color.
laser_gradient_stops tuple[Color, ...]

Space separated, unquoted, list of colors for the laser gradient. If only one color is provided, the characters will be displayed in that color.
spark_gradient_stops tuple[Color, ...]

Space separated, unquoted, list of colors for the spark cooling gradient. If only one color is provided, the characters will be displayed in that color.
spark_cooling_frames int

Number of frames to display each spark cooling gradient step. Increase to slow down the rate of cooling.
final_gradient_stops tuple[Color, ...]

Space separated, unquoted, list of colors for the character gradient (applied across the canvas). If only one color is provided, the characters will be displayed in that color.
final_gradient_steps tuple[int, ...] | int

Space separated, unquoted, list of the number of gradient steps to use. More steps will create a smoother and longer gradient animation.
final_gradient_frames int

Number of frames to display each gradient step. Increase to slow down the gradient animation.
final_gradient_direction Direction

Direction of the final gradient.
Source code in terminaltexteffects/effects/effect_laseretch.py
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
@dataclass
class LaserEtchConfig(BaseConfig):
    """LaserEtch effect configuration dataclass.

    Attributes:
        reverse_etch_pattern (bool): Reverse the complete traversal while preserving group membership.
        etch_pattern (`CharacterOrder` | `Literal['algorithm']`): Character order used
            to etch the text. `algorithm` follows a recursive backtracker. Spatial patterns reverse
            alternate groups for serpentine traversal; individual patterns use the exact sorted order,
            including clockwise and counterclockwise single, double, and quad spirals.
        etch_speed (int): Along with etch_delay, determines the speed at which the characters are etched onto the terminal.
            This value specifies the number of characters to etch simultaneously.
        etch_delay (int): Along with etch_speed, determines the speed at which the characters are etched onto the terminal.
            This values specifies the number of frames to wait before etching the next group of characters.
        cool_gradient_stops (tuple[tte.Color, ...]): Space separated, unquoted, list of colors for the gradient used to
            cool the characters after etching. If only one color is provided, the characters will be displayed in that color.
        laser_gradient_stops (tuple[tte.Color, ...]): Space separated, unquoted, list of colors for the laser gradient.
            If only one color is provided, the characters will be displayed in that color.
        spark_gradient_stops (tuple[tte.Color, ...]): Space separated, unquoted, list of colors for the spark cooling gradient.
            If only one color is provided, the characters will be displayed in that color.
        spark_cooling_frames (int): Number of frames to display each spark cooling gradient step. Increase to slow down the
            rate of cooling.
        final_gradient_stops (tuple[tte.Color, ...]): Space separated, unquoted, list of colors for the character gradient
            (applied across the canvas). If only one color is provided, the characters will be displayed in that color.
        final_gradient_steps (tuple[int, ...] | int): Space separated, unquoted, list of the number of gradient steps to use.
            More steps will create a smoother and longer gradient animation.
        final_gradient_frames (int): Number of frames to display each gradient step.
            Increase to slow down the gradient animation.
        final_gradient_direction (tte.Gradient.Direction): Direction of the final gradient.

    """  # noqa: E501

    parser_spec: argutils.ParserSpec = argutils.ParserSpec(
        name="laseretch",
        help="A laser etches characters onto the terminal.",
        description="A laser etches characters onto the terminal.",
        epilog=(
            "Example: terminaltexteffects laseretch --etch-pattern algorithm --etch-speed 1 --etch-delay 1 "
            "--cool-gradient-stops ffe680 ff7b00 --laser-gradient-stops ffffff 376cff "
            "--spark-gradient-stops ffffff ffe680 ff7b00 1a0900 --spark-cooling-frames 7 --final-gradient-stops "
            "8A008A 00D1FF ffffff --final-gradient-steps 8 --final-gradient-frames 4 "
            "--final-gradient-direction vertical"
        ),
    )

    etch_pattern: argutils.CharacterOrder | argutils.CharacterGroup | argutils.CharacterSort | Literal["algorithm"] = (
        argutils.ArgSpec(
            name="--etch-pattern",
            default="algorithm",
            type=_etch_pattern_type_parser,
            metavar="algorithm " + " ".join(argutils.CharacterOrderArg.METAVAR),
            help="Pattern used to etch the text: algorithm, serpentine character groups, or exact character sorts.",
        )
    )  # pyright: ignore[reportAssignmentType]
    "CharacterOrder | Literal['algorithm']: Pattern used to etch the text."

    reverse_etch_pattern: bool = argutils.ArgSpec(
        name="--reverse-etch-pattern",
        default=False,
        action="store_true",
        help="Reverse the complete etch pattern traversal.",
    )  # pyright: ignore[reportAssignmentType]
    "bool : Reverse the complete traversal, preserving group membership."

    etch_speed: int = argutils.ArgSpec(
        name="--etch-speed",
        type=argutils.PositiveInt.type_parser,
        default=1,
        metavar=argutils.PositiveInt.METAVAR,
        help="Along with etch_delay, determines the speed at which the characters are etched onto the terminal. "
        "This value specifies the number of characters to etch simultaneously.",
    )  # pyright: ignore[reportAssignmentType]
    (
        "int: Along with etch_delay, determines the speed at which the characters are etched onto the terminal. "
        "This value specifies the number of characters to etch simultaneously."
    )

    etch_delay: int = argutils.ArgSpec(
        name="--etch-delay",
        type=argutils.NonNegativeInt.type_parser,
        default=1,
        metavar=argutils.NonNegativeInt.METAVAR,
        help="Along with etch_speed, determines the speed at which the characters are etched onto the terminal. "
        "This values specifies the number of frames to wait before etching the next set of characters.",
    )  # pyright: ignore[reportAssignmentType]
    (
        "int: Along with etch_speed, determines the speed at which the characters are etched onto the terminal. "
        "This values specifies the number of frames to wait before etching the next set of characters."
    )

    cool_gradient_stops: tuple[tte.Color, ...] = argutils.ArgSpec(
        name="--cool-gradient-stops",
        type=argutils.ColorArg.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(tte.Color("#ffe680"), tte.Color("#ff7b00")),
        metavar=argutils.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the gradient used to cool the characters after etching. "
        "If only one color is provided, the characters will be displayed in that color.",
    )  # pyright: ignore[reportAssignmentType]
    "tuple[Color, ...]: Space separated, unquoted, list of colors for the cooling gradient "
    "If only one color is provided, the characters will be displayed in that color."

    laser_gradient_stops: tuple[tte.Color, ...] = argutils.ArgSpec(
        name="--laser-gradient-stops",
        type=argutils.ColorArg.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(tte.Color("#ffffff"), tte.Color("#376cff")),
        metavar=argutils.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the laser gradient. "
        "If only one color is provided, the characters will be displayed in that color.",
    )  # pyright: ignore[reportAssignmentType]
    "tuple[Color, ...]: Space separated, unquoted, list of colors for the laser gradient. "
    "If only one color is provided, the characters will be displayed in that color."

    spark_gradient_stops: tuple[tte.Color, ...] = argutils.ArgSpec(
        name="--spark-gradient-stops",
        type=argutils.ColorArg.type_parser,
        nargs="+",
        action=argutils.TupleAction,
        default=(tte.Color("#ffffff"), tte.Color("#ffe680"), tte.Color("#ff7b00"), tte.Color("#1a0900")),
        metavar=argutils.ColorArg.METAVAR,
        help="Space separated, unquoted, list of colors for the spark cooling gradient. "
        "If only one color is provided, the characters will be displayed in that color.",
    )  # pyright: ignore[reportAssignmentType]
    "tuple[Color, ...]: Space separated, unquoted, list of colors for the spark cooling gradient. "
    "If only one color is provided, the characters will be displayed in that color."

    spark_cooling_frames: int = argutils.ArgSpec(
        name="--spark-cooling-frames",
        type=argutils.PositiveInt.type_parser,
        default=7,
        metavar=argutils.PositiveInt.METAVAR,
        help="Number of frames to display each spark cooling gradient step. Increase to slow down the rate of cooling.",
    )  # pyright: ignore[reportAssignmentType]
    "int: Number of frames to display each spark cooling gradient step. Increase to slow down the rate of cooling."

    final_gradient_stops: tuple[tte.Color, ...] = FinalGradientStopsArg(
        default=(tte.Color("#8A008A"), tte.Color("#00D1FF"), tte.Color("#ffffff")),
    )  # pyright: ignore[reportAssignmentType]
    "tuple[Color, ...]: Space separated, unquoted, list of colors for the character gradient "
    "(applied across the canvas). If only one color is provided, the characters will be displayed in that color."

    final_gradient_steps: tuple[int, ...] | int = FinalGradientStepsArg(
        default=8,
    )  # pyright: ignore[reportAssignmentType]
    "tuple[int, ...] | int: Space separated, unquoted, list of the number of gradient steps to use. More steps will "
    "create a smoother and longer gradient animation."

    final_gradient_frames: int = FinalGradientFramesArg(
        default=4,
    )  # pyright: ignore[reportAssignmentType]
    "int: Number of frames to display each gradient step. Increase to slow down the gradient animation."

    final_gradient_direction: tte.Gradient.Direction = FinalGradientDirectionArg(
        default=tte.Gradient.Direction.VERTICAL,
    )  # pyright: ignore[reportAssignmentType]
    "Gradient.Direction : Direction of the final gradient."

cool_gradient_stops = argutils.ArgSpec(name='--cool-gradient-stops', type=argutils.ColorArg.type_parser, nargs='+', action=argutils.TupleAction, default=(tte.Color('#ffe680'), tte.Color('#ff7b00')), metavar=argutils.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the gradient used to cool the characters after etching. If only one color is provided, the characters will be displayed in that color.') class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the cooling gradient

etch_delay = argutils.ArgSpec(name='--etch-delay', type=argutils.NonNegativeInt.type_parser, default=1, metavar=argutils.NonNegativeInt.METAVAR, help='Along with etch_speed, determines the speed at which the characters are etched onto the terminal. This values specifies the number of frames to wait before etching the next set of characters.') class-attribute instance-attribute

int: Along with etch_speed, determines the speed at which the characters are etched onto the terminal. This values specifies the number of frames to wait before etching the next set of characters.

etch_pattern = argutils.ArgSpec(name='--etch-pattern', default='algorithm', type=_etch_pattern_type_parser, metavar='algorithm ' + ' '.join(argutils.CharacterOrderArg.METAVAR), help='Pattern used to etch the text: algorithm, serpentine character groups, or exact character sorts.') class-attribute instance-attribute

CharacterOrder | Literal['algorithm']: Pattern used to etch the text.

etch_speed = argutils.ArgSpec(name='--etch-speed', type=argutils.PositiveInt.type_parser, default=1, metavar=argutils.PositiveInt.METAVAR, help='Along with etch_delay, determines the speed at which the characters are etched onto the terminal. This value specifies the number of characters to etch simultaneously.') class-attribute instance-attribute

int: Along with etch_delay, determines the speed at which the characters are etched onto the terminal. This value specifies the number of characters to etch simultaneously.

final_gradient_direction = FinalGradientDirectionArg(default=tte.Gradient.Direction.VERTICAL) class-attribute instance-attribute

Gradient.Direction : Direction of the final gradient.

final_gradient_frames = FinalGradientFramesArg(default=4) class-attribute instance-attribute

int: Number of frames to display each gradient step. Increase to slow down the gradient animation.

final_gradient_steps = FinalGradientStepsArg(default=8) class-attribute instance-attribute

tuple[int, ...] | int: Space separated, unquoted, list of the number of gradient steps to use. More steps will

final_gradient_stops = FinalGradientStopsArg(default=(tte.Color('#8A008A'), tte.Color('#00D1FF'), tte.Color('#ffffff'))) class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the character gradient

laser_gradient_stops = argutils.ArgSpec(name='--laser-gradient-stops', type=argutils.ColorArg.type_parser, nargs='+', action=argutils.TupleAction, default=(tte.Color('#ffffff'), tte.Color('#376cff')), metavar=argutils.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the laser gradient. If only one color is provided, the characters will be displayed in that color.') class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the laser gradient.

reverse_etch_pattern = argutils.ArgSpec(name='--reverse-etch-pattern', default=False, action='store_true', help='Reverse the complete etch pattern traversal.') class-attribute instance-attribute

bool : Reverse the complete traversal, preserving group membership.

spark_cooling_frames = argutils.ArgSpec(name='--spark-cooling-frames', type=argutils.PositiveInt.type_parser, default=7, metavar=argutils.PositiveInt.METAVAR, help='Number of frames to display each spark cooling gradient step. Increase to slow down the rate of cooling.') class-attribute instance-attribute

int: Number of frames to display each spark cooling gradient step. Increase to slow down the rate of cooling.

spark_gradient_stops = argutils.ArgSpec(name='--spark-gradient-stops', type=argutils.ColorArg.type_parser, nargs='+', action=argutils.TupleAction, default=(tte.Color('#ffffff'), tte.Color('#ffe680'), tte.Color('#ff7b00'), tte.Color('#1a0900')), metavar=argutils.ColorArg.METAVAR, help='Space separated, unquoted, list of colors for the spark cooling gradient. If only one color is provided, the characters will be displayed in that color.') class-attribute instance-attribute

tuple[Color, ...]: Space separated, unquoted, list of colors for the spark cooling gradient.

LaserEtchIterator

Bases: BaseEffectIterator[LaserEtchConfig]

Iterator for the LaserEtch effect.

Source code in terminaltexteffects/effects/effect_laseretch.py
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
class LaserEtchIterator(BaseEffectIterator[LaserEtchConfig]):
    """Iterator for the LaserEtch effect."""

    class Laser:
        """A class to represent a laser beam effect in a terminal.

        The laser is mounted at a fixed point in the 3D world, above the top of the canvas and halfway between the
        camera and the text plane. Its beam is a straight segment from that point down to the character being
        etched on the text plane, so the beam swings around the mount as the etch moves across the text.

        Methods:
            reposition(target: Coord) -> None:
                Repositions the laser beam to the target coordinate.
            shimmer() -> None:
                Advances the beam's color cycle by one frame.
            emit(spark_count: int = 1) -> None:
                Emits a specified number of sparks from the laser beam.
            disable() -> None:
                Disables the laser beam by setting the visibility of the beam characters to False.

        """

        MOUNT_ROWS_ABOVE_CANVAS = 4
        "int: How many rows above the canvas top the mount appears to sit, as seen by the camera."

        def __init__(
            self,
            terminal: tte.Terminal,
            config: LaserEtchConfig,
            active_chars: set[tte.EffectCharacter],
        ) -> None:
            """Initialize the laser beam.

            Args:
                terminal (Terminal): The effect terminal.
                config (LaserEtchConfig): The effect configuration.
                active_chars (set[EffectCharacter]): The set of active characters in the effect.

            """
            self.terminal = terminal
            self.config = config
            self.active_chars = active_chars
            self.position: tte.Coord = tte.Coord(0, 0)
            self.world = terminal.world
            canvas = terminal.canvas
            camera = self.world.camera
            # Halfway between the eye and the text plane, on the ray through a cell above the canvas.
            self.mount = camera.cell_to_world(
                tte.Coord(canvas.center_column, canvas.top + self.MOUNT_ROWS_ABOVE_CANVAS),
                z=camera.position.z / 2,
            )
            self.laser_gradient = tuple(tte.Gradient(*config.laser_gradient_stops, steps=6, loop=True))
            self.spark_gradient = tte.Gradient(
                *config.spark_gradient_stops,
                steps=(3, 8),
            )
            self.sparks_pool = self._make_sparks_pool()
            # A beam is at most one cell per step along its longer axis on screen.
            beam_length = max(canvas.width, canvas.height + self.MOUNT_ROWS_ABOVE_CANVAS) + 1
            self.beam_chars: list[tte.EffectCharacter] = []
            for _ in range(beam_length):
                char = self.terminal.add_character(" ", canvas.center)
                char.layer = 2
                char.attach(self.world.root, at=self.mount)
                self.beam_chars.append(char)
            self.lit_chars: list[tte.EffectCharacter] = []
            self.beam_symbol = "|"
            self.frame = 0

        def _make_sparks_pool(self) -> tte.ParticlePool:
            def initialize_sparks(spark_char: tte.EffectCharacter) -> None:
                spark_char.layer = 2
                spark_scn = spark_char.animation.new_scene(scene_id="spark")
                for color in self.spark_gradient:
                    spark_scn.add_frame(
                        spark_char.input_symbol,
                        self.config.spark_cooling_frames,
                        colors=tte.ColorPair(fg=color),
                    )

            sparks_pool = tte.ParticlePool(
                self.terminal,
                self.active_chars,
                symbols=(".", ",", "*"),
                initial_count=2000,
                initializer=initialize_sparks,
            )
            for spark in sparks_pool.particles:
                sparks_pool.reclaim_on_event(spark, spark.animation.query_scene("spark"))
            return sparks_pool

        def reposition(self, target: tte.Coord) -> None:
            """Reposition the laser beam to the target coordinate.

            Lay the beam characters along the segment from the mount to the target on the text plane. Each one is
            placed in the world on the viewing ray of one cell of the segment's projection, at the depth the
            segment has there, so the beam reads as an unbroken line in front of the text.

            Args:
                target (Coord): The target coordinate for the laser beam.

            """
            self.position = target
            camera = self.world.camera
            canvas = self.terminal.canvas
            tip = camera.project(self.world.text_plane.to_world((target.column, target.row, 0)))
            mount = camera.project(self.mount)
            if tip is None or mount is None:
                return
            self.beam_symbol = geometry3d.line_symbol(
                mount.column - tip.column,
                mount.row - tip.row,
                camera.row_scale,
            )
            cells = rasterize_line(tip.coord, mount.coord)
            steps = max(len(cells) - 1, 1)
            lit_chars: list[tte.EffectCharacter] = []
            for step, cell in enumerate(cells):
                if not canvas.coord_is_in_canvas(cell):
                    continue
                t = step / steps
                # Under perspective, reciprocal depth is what changes linearly along the line on screen.
                depth = (
                    tip.depth + (mount.depth - tip.depth) * t
                    if camera.orthographic
                    else 1 / ((1 - t) / tip.depth + t / mount.depth)
                )
                ray_origin, ray_direction = camera.ray(cell)
                char = self.beam_chars[len(lit_chars)]
                char.motion.position = ray_origin + ray_direction * depth
                lit_chars.append(char)
            for char in self.lit_chars[len(lit_chars) :]:
                self.terminal.set_character_visibility(char, is_visible=False)
            for char in lit_chars[len(self.lit_chars) :]:
                self.terminal.set_character_visibility(char, is_visible=True)
            self.lit_chars = lit_chars
            self._paint_beam()
            self.emit_sparks()

        def shimmer(self) -> None:
            """Advance the beam's color cycle by one frame, so colors flow along the beam."""
            self.frame += 1
            self._paint_beam()

        def _paint_beam(self) -> None:
            """Draw the lit beam characters, with the tip at the target and the beam symbol following its slope."""
            gradient = self.laser_gradient
            offset = self.frame // 3
            for index, char in enumerate(self.lit_chars):
                char.animation.set_appearance_if_changed(
                    "*" if index == 0 else self.beam_symbol,
                    tte.ColorPair(fg=gradient[(index + offset) % len(gradient)]),
                )

        def emit_sparks(self, spark_count: int = 1) -> None:
            """Emit sparks from the laser beam.

            Sets up the spark character Path and activates the Path and Scene for each spark character.

            Args:
                spark_count (int, optional): Number of spark characters to emit. Defaults to 1.

            """

            def setup_spark_path(spark_char: tte.EffectCharacter) -> None:
                spark_char.motion.set_coordinate(self.position)
                spark_path = spark_char.motion.new_path(ease=tte.easing.out_sine, speed=0.3)
                fall_target_coord = tte.Coord(
                    random.randint(self.position.column - 20, self.position.column + 20),
                    self.terminal.canvas.bottom,
                )
                spark_path.new_waypoint(
                    fall_target_coord,
                    bezier_control=tte.Coord(fall_target_coord.column, self.position.row + random.randint(-10, 20)),
                )
                spark_char.motion.activate_path(spark_path)
                spark_char.animation.activate_scene("spark")

            for _ in range(spark_count):
                self.sparks_pool.emit(self.position, on_emit=setup_spark_path)

        def disable(self) -> None:
            """Disable the laser beam by setting the visibility of the beam characters to False."""
            for char in self.lit_chars:
                self.terminal.set_character_visibility(char, is_visible=False)
            self.lit_chars = []

    def __init__(self, effect: LaserEtch) -> None:
        """Initialize the effect iterator."""
        super().__init__(effect)
        self.character_final_color_map: dict[tte.EffectCharacter, tte.ColorPair] = {}
        self.pending_chars: list[tte.EffectCharacter] = []
        self.build()
        self.char_delay = 0
        self.laser = LaserEtchIterator.Laser(self.terminal, self.config, self.active_characters)
        self.color_shifted_chars: set[tte.EffectCharacter] = set()

    @staticmethod
    def _has_input_colors(character: tte.EffectCharacter) -> bool:
        return any((character.animation.input_fg_color, character.animation.input_bg_color))

    def build(self) -> None:
        """Build the effect."""
        final_fg_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
        final_gradient_mapping = final_fg_gradient.build_coordinate_color_mapping(
            self.terminal.canvas.text_bottom,
            self.terminal.canvas.text_top,
            self.terminal.canvas.text_left,
            self.terminal.canvas.text_right,
            self.config.final_gradient_direction,
        )
        for character in self.terminal.get_characters():
            final_fg_color: tte.Color | None
            final_bg_color: tte.Color | None
            if self.terminal.config.existing_color_handling == "dynamic":
                self.character_final_color_map[character] = tte.ColorPair(
                    fg=character.animation.input_fg_color,
                    bg=character.animation.input_bg_color,
                )
                final_fg_color = self.character_final_color_map[character].fg
                final_bg_color = self.character_final_color_map[character].bg
                cool_gradient = tte.Gradient(
                    *self.config.cool_gradient_stops,
                    steps=8,
                )
            else:
                self.character_final_color_map[character] = tte.ColorPair(
                    fg=final_gradient_mapping[character.input_coord],
                )
                final_fg_color = self.character_final_color_map[character].fg
                final_bg_color = self.character_final_color_map[character].bg
                cool_gradient = tte.Gradient(
                    *self.config.cool_gradient_stops,
                    final_gradient_mapping[character.input_coord],
                    steps=8,
                )
            spawn_scn = character.animation.new_scene(scene_id="spawn")
            spawn_scn.add_frame("^", duration=3, colors=tte.ColorPair("#ffe680"))
            for color in cool_gradient:
                spawn_scn.add_frame(character.input_symbol, 3, colors=tte.ColorPair(fg=color))
            if self.terminal.config.existing_color_handling == "dynamic":
                if final_fg_color or final_bg_color:
                    fg_gradient = (
                        tte.Gradient(cool_gradient.spectrum[-1], final_fg_color, steps=8) if final_fg_color else None
                    )
                    bg_gradient = (
                        tte.Gradient(cool_gradient.spectrum[-1], final_bg_color, steps=8) if final_bg_color else None
                    )
                    spawn_scn.apply_gradient_to_symbols(
                        character.input_symbol,
                        3,
                        fg_gradient=fg_gradient,
                        bg_gradient=bg_gradient,
                    )
                else:
                    white_cooldown = tte.Gradient(cool_gradient.spectrum[-1], tte.Color("#ffffff"), steps=8)
                    spawn_scn.apply_gradient_to_symbols(
                        character.input_symbol,
                        3,
                        fg_gradient=white_cooldown,
                    )
                    spawn_scn.add_frame(character.input_symbol, 3, colors=tte.ColorPair())
            character.animation.activate_scene(spawn_scn)
        if self.config.etch_pattern == "algorithm":
            algo = RecursiveBacktracker(self.terminal, limit_to_text_boundary=True)
            while not algo.complete:
                algo.step()
            self.pending_chars = algo.char_link_order
            if self.config.reverse_etch_pattern:
                self.pending_chars.reverse()
        else:
            self.pending_chars = self.terminal.get_characters(
                order=self.config.etch_pattern,
                serpentine=True,
                reverse=self.config.reverse_etch_pattern,
            )

    def __next__(self) -> str:
        """Return the next frame in the effect."""
        while self.pending_chars or self.active_characters:
            if not self.char_delay:
                for _ in range(self.config.etch_speed):
                    if not self.pending_chars:
                        break
                    next_char = self.pending_chars.pop(0)
                    while next_char.input_symbol == " " and not self._has_input_colors(next_char):
                        if self.pending_chars:
                            next_char = self.pending_chars.pop(0)
                        else:
                            break

                    self.terminal.set_character_visibility(next_char, is_visible=True)
                    self.active_characters.add(next_char)
                    self.laser.reposition(next_char.input_coord)

                self.char_delay = self.config.etch_delay
            else:
                self.char_delay -= 1
            if self.pending_chars:
                self.laser.shimmer()
            else:
                self.laser.disable()
            self.update()
            return self.frame
        raise StopIteration

Laser

A class to represent a laser beam effect in a terminal.

The laser is mounted at a fixed point in the 3D world, above the top of the canvas and halfway between the camera and the text plane. Its beam is a straight segment from that point down to the character being etched on the text plane, so the beam swings around the mount as the etch moves across the text.

Methods:

Name Description
reposition

Coord) -> None: Repositions the laser beam to the target coordinate.
shimmer

Advances the beam's color cycle by one frame.
emit

int = 1) -> None: Emits a specified number of sparks from the laser beam.
disable

Disables the laser beam by setting the visibility of the beam characters to False.
Source code in terminaltexteffects/effects/effect_laseretch.py
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
class Laser:
    """A class to represent a laser beam effect in a terminal.

    The laser is mounted at a fixed point in the 3D world, above the top of the canvas and halfway between the
    camera and the text plane. Its beam is a straight segment from that point down to the character being
    etched on the text plane, so the beam swings around the mount as the etch moves across the text.

    Methods:
        reposition(target: Coord) -> None:
            Repositions the laser beam to the target coordinate.
        shimmer() -> None:
            Advances the beam's color cycle by one frame.
        emit(spark_count: int = 1) -> None:
            Emits a specified number of sparks from the laser beam.
        disable() -> None:
            Disables the laser beam by setting the visibility of the beam characters to False.

    """

    MOUNT_ROWS_ABOVE_CANVAS = 4
    "int: How many rows above the canvas top the mount appears to sit, as seen by the camera."

    def __init__(
        self,
        terminal: tte.Terminal,
        config: LaserEtchConfig,
        active_chars: set[tte.EffectCharacter],
    ) -> None:
        """Initialize the laser beam.

        Args:
            terminal (Terminal): The effect terminal.
            config (LaserEtchConfig): The effect configuration.
            active_chars (set[EffectCharacter]): The set of active characters in the effect.

        """
        self.terminal = terminal
        self.config = config
        self.active_chars = active_chars
        self.position: tte.Coord = tte.Coord(0, 0)
        self.world = terminal.world
        canvas = terminal.canvas
        camera = self.world.camera
        # Halfway between the eye and the text plane, on the ray through a cell above the canvas.
        self.mount = camera.cell_to_world(
            tte.Coord(canvas.center_column, canvas.top + self.MOUNT_ROWS_ABOVE_CANVAS),
            z=camera.position.z / 2,
        )
        self.laser_gradient = tuple(tte.Gradient(*config.laser_gradient_stops, steps=6, loop=True))
        self.spark_gradient = tte.Gradient(
            *config.spark_gradient_stops,
            steps=(3, 8),
        )
        self.sparks_pool = self._make_sparks_pool()
        # A beam is at most one cell per step along its longer axis on screen.
        beam_length = max(canvas.width, canvas.height + self.MOUNT_ROWS_ABOVE_CANVAS) + 1
        self.beam_chars: list[tte.EffectCharacter] = []
        for _ in range(beam_length):
            char = self.terminal.add_character(" ", canvas.center)
            char.layer = 2
            char.attach(self.world.root, at=self.mount)
            self.beam_chars.append(char)
        self.lit_chars: list[tte.EffectCharacter] = []
        self.beam_symbol = "|"
        self.frame = 0

    def _make_sparks_pool(self) -> tte.ParticlePool:
        def initialize_sparks(spark_char: tte.EffectCharacter) -> None:
            spark_char.layer = 2
            spark_scn = spark_char.animation.new_scene(scene_id="spark")
            for color in self.spark_gradient:
                spark_scn.add_frame(
                    spark_char.input_symbol,
                    self.config.spark_cooling_frames,
                    colors=tte.ColorPair(fg=color),
                )

        sparks_pool = tte.ParticlePool(
            self.terminal,
            self.active_chars,
            symbols=(".", ",", "*"),
            initial_count=2000,
            initializer=initialize_sparks,
        )
        for spark in sparks_pool.particles:
            sparks_pool.reclaim_on_event(spark, spark.animation.query_scene("spark"))
        return sparks_pool

    def reposition(self, target: tte.Coord) -> None:
        """Reposition the laser beam to the target coordinate.

        Lay the beam characters along the segment from the mount to the target on the text plane. Each one is
        placed in the world on the viewing ray of one cell of the segment's projection, at the depth the
        segment has there, so the beam reads as an unbroken line in front of the text.

        Args:
            target (Coord): The target coordinate for the laser beam.

        """
        self.position = target
        camera = self.world.camera
        canvas = self.terminal.canvas
        tip = camera.project(self.world.text_plane.to_world((target.column, target.row, 0)))
        mount = camera.project(self.mount)
        if tip is None or mount is None:
            return
        self.beam_symbol = geometry3d.line_symbol(
            mount.column - tip.column,
            mount.row - tip.row,
            camera.row_scale,
        )
        cells = rasterize_line(tip.coord, mount.coord)
        steps = max(len(cells) - 1, 1)
        lit_chars: list[tte.EffectCharacter] = []
        for step, cell in enumerate(cells):
            if not canvas.coord_is_in_canvas(cell):
                continue
            t = step / steps
            # Under perspective, reciprocal depth is what changes linearly along the line on screen.
            depth = (
                tip.depth + (mount.depth - tip.depth) * t
                if camera.orthographic
                else 1 / ((1 - t) / tip.depth + t / mount.depth)
            )
            ray_origin, ray_direction = camera.ray(cell)
            char = self.beam_chars[len(lit_chars)]
            char.motion.position = ray_origin + ray_direction * depth
            lit_chars.append(char)
        for char in self.lit_chars[len(lit_chars) :]:
            self.terminal.set_character_visibility(char, is_visible=False)
        for char in lit_chars[len(self.lit_chars) :]:
            self.terminal.set_character_visibility(char, is_visible=True)
        self.lit_chars = lit_chars
        self._paint_beam()
        self.emit_sparks()

    def shimmer(self) -> None:
        """Advance the beam's color cycle by one frame, so colors flow along the beam."""
        self.frame += 1
        self._paint_beam()

    def _paint_beam(self) -> None:
        """Draw the lit beam characters, with the tip at the target and the beam symbol following its slope."""
        gradient = self.laser_gradient
        offset = self.frame // 3
        for index, char in enumerate(self.lit_chars):
            char.animation.set_appearance_if_changed(
                "*" if index == 0 else self.beam_symbol,
                tte.ColorPair(fg=gradient[(index + offset) % len(gradient)]),
            )

    def emit_sparks(self, spark_count: int = 1) -> None:
        """Emit sparks from the laser beam.

        Sets up the spark character Path and activates the Path and Scene for each spark character.

        Args:
            spark_count (int, optional): Number of spark characters to emit. Defaults to 1.

        """

        def setup_spark_path(spark_char: tte.EffectCharacter) -> None:
            spark_char.motion.set_coordinate(self.position)
            spark_path = spark_char.motion.new_path(ease=tte.easing.out_sine, speed=0.3)
            fall_target_coord = tte.Coord(
                random.randint(self.position.column - 20, self.position.column + 20),
                self.terminal.canvas.bottom,
            )
            spark_path.new_waypoint(
                fall_target_coord,
                bezier_control=tte.Coord(fall_target_coord.column, self.position.row + random.randint(-10, 20)),
            )
            spark_char.motion.activate_path(spark_path)
            spark_char.animation.activate_scene("spark")

        for _ in range(spark_count):
            self.sparks_pool.emit(self.position, on_emit=setup_spark_path)

    def disable(self) -> None:
        """Disable the laser beam by setting the visibility of the beam characters to False."""
        for char in self.lit_chars:
            self.terminal.set_character_visibility(char, is_visible=False)
        self.lit_chars = []

MOUNT_ROWS_ABOVE_CANVAS = 4 class-attribute instance-attribute

int: How many rows above the canvas top the mount appears to sit, as seen by the camera.

__init__(terminal, config, active_chars)

Initialize the laser beam.

Parameters:

Name Type Description Default
terminal Terminal

The effect terminal.

 required
config LaserEtchConfig

The effect configuration.

 required
active_chars set[EffectCharacter]

The set of active characters in the effect.

 required
Source code in terminaltexteffects/effects/effect_laseretch.py
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
def __init__(
    self,
    terminal: tte.Terminal,
    config: LaserEtchConfig,
    active_chars: set[tte.EffectCharacter],
) -> None:
    """Initialize the laser beam.

    Args:
        terminal (Terminal): The effect terminal.
        config (LaserEtchConfig): The effect configuration.
        active_chars (set[EffectCharacter]): The set of active characters in the effect.

    """
    self.terminal = terminal
    self.config = config
    self.active_chars = active_chars
    self.position: tte.Coord = tte.Coord(0, 0)
    self.world = terminal.world
    canvas = terminal.canvas
    camera = self.world.camera
    # Halfway between the eye and the text plane, on the ray through a cell above the canvas.
    self.mount = camera.cell_to_world(
        tte.Coord(canvas.center_column, canvas.top + self.MOUNT_ROWS_ABOVE_CANVAS),
        z=camera.position.z / 2,
    )
    self.laser_gradient = tuple(tte.Gradient(*config.laser_gradient_stops, steps=6, loop=True))
    self.spark_gradient = tte.Gradient(
        *config.spark_gradient_stops,
        steps=(3, 8),
    )
    self.sparks_pool = self._make_sparks_pool()
    # A beam is at most one cell per step along its longer axis on screen.
    beam_length = max(canvas.width, canvas.height + self.MOUNT_ROWS_ABOVE_CANVAS) + 1
    self.beam_chars: list[tte.EffectCharacter] = []
    for _ in range(beam_length):
        char = self.terminal.add_character(" ", canvas.center)
        char.layer = 2
        char.attach(self.world.root, at=self.mount)
        self.beam_chars.append(char)
    self.lit_chars: list[tte.EffectCharacter] = []
    self.beam_symbol = "|"
    self.frame = 0

disable()

Disable the laser beam by setting the visibility of the beam characters to False.

Source code in terminaltexteffects/effects/effect_laseretch.py
391
392
393
394
395
def disable(self) -> None:
    """Disable the laser beam by setting the visibility of the beam characters to False."""
    for char in self.lit_chars:
        self.terminal.set_character_visibility(char, is_visible=False)
    self.lit_chars = []

emit_sparks(spark_count=1)

Emit sparks from the laser beam.

Sets up the spark character Path and activates the Path and Scene for each spark character.

Parameters:

Name Type Description Default
spark_count int

Number of spark characters to emit. Defaults to 1.

 1
Source code in terminaltexteffects/effects/effect_laseretch.py
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
def emit_sparks(self, spark_count: int = 1) -> None:
    """Emit sparks from the laser beam.

    Sets up the spark character Path and activates the Path and Scene for each spark character.

    Args:
        spark_count (int, optional): Number of spark characters to emit. Defaults to 1.

    """

    def setup_spark_path(spark_char: tte.EffectCharacter) -> None:
        spark_char.motion.set_coordinate(self.position)
        spark_path = spark_char.motion.new_path(ease=tte.easing.out_sine, speed=0.3)
        fall_target_coord = tte.Coord(
            random.randint(self.position.column - 20, self.position.column + 20),
            self.terminal.canvas.bottom,
        )
        spark_path.new_waypoint(
            fall_target_coord,
            bezier_control=tte.Coord(fall_target_coord.column, self.position.row + random.randint(-10, 20)),
        )
        spark_char.motion.activate_path(spark_path)
        spark_char.animation.activate_scene("spark")

    for _ in range(spark_count):
        self.sparks_pool.emit(self.position, on_emit=setup_spark_path)

reposition(target)

Reposition the laser beam to the target coordinate.

Lay the beam characters along the segment from the mount to the target on the text plane. Each one is placed in the world on the viewing ray of one cell of the segment's projection, at the depth the segment has there, so the beam reads as an unbroken line in front of the text.

Parameters:

Name Type Description Default
target Coord

The target coordinate for the laser beam.

 required
Source code in terminaltexteffects/effects/effect_laseretch.py
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
def reposition(self, target: tte.Coord) -> None:
    """Reposition the laser beam to the target coordinate.

    Lay the beam characters along the segment from the mount to the target on the text plane. Each one is
    placed in the world on the viewing ray of one cell of the segment's projection, at the depth the
    segment has there, so the beam reads as an unbroken line in front of the text.

    Args:
        target (Coord): The target coordinate for the laser beam.

    """
    self.position = target
    camera = self.world.camera
    canvas = self.terminal.canvas
    tip = camera.project(self.world.text_plane.to_world((target.column, target.row, 0)))
    mount = camera.project(self.mount)
    if tip is None or mount is None:
        return
    self.beam_symbol = geometry3d.line_symbol(
        mount.column - tip.column,
        mount.row - tip.row,
        camera.row_scale,
    )
    cells = rasterize_line(tip.coord, mount.coord)
    steps = max(len(cells) - 1, 1)
    lit_chars: list[tte.EffectCharacter] = []
    for step, cell in enumerate(cells):
        if not canvas.coord_is_in_canvas(cell):
            continue
        t = step / steps
        # Under perspective, reciprocal depth is what changes linearly along the line on screen.
        depth = (
            tip.depth + (mount.depth - tip.depth) * t
            if camera.orthographic
            else 1 / ((1 - t) / tip.depth + t / mount.depth)
        )
        ray_origin, ray_direction = camera.ray(cell)
        char = self.beam_chars[len(lit_chars)]
        char.motion.position = ray_origin + ray_direction * depth
        lit_chars.append(char)
    for char in self.lit_chars[len(lit_chars) :]:
        self.terminal.set_character_visibility(char, is_visible=False)
    for char in lit_chars[len(self.lit_chars) :]:
        self.terminal.set_character_visibility(char, is_visible=True)
    self.lit_chars = lit_chars
    self._paint_beam()
    self.emit_sparks()

shimmer()

Advance the beam's color cycle by one frame, so colors flow along the beam.

Source code in terminaltexteffects/effects/effect_laseretch.py
349
350
351
352
def shimmer(self) -> None:
    """Advance the beam's color cycle by one frame, so colors flow along the beam."""
    self.frame += 1
    self._paint_beam()

__init__(effect)

Initialize the effect iterator.

Source code in terminaltexteffects/effects/effect_laseretch.py
397
398
399
400
401
402
403
404
405
def __init__(self, effect: LaserEtch) -> None:
    """Initialize the effect iterator."""
    super().__init__(effect)
    self.character_final_color_map: dict[tte.EffectCharacter, tte.ColorPair] = {}
    self.pending_chars: list[tte.EffectCharacter] = []
    self.build()
    self.char_delay = 0
    self.laser = LaserEtchIterator.Laser(self.terminal, self.config, self.active_characters)
    self.color_shifted_chars: set[tte.EffectCharacter] = set()

__next__()

Return the next frame in the effect.

Source code in terminaltexteffects/effects/effect_laseretch.py
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
def __next__(self) -> str:
    """Return the next frame in the effect."""
    while self.pending_chars or self.active_characters:
        if not self.char_delay:
            for _ in range(self.config.etch_speed):
                if not self.pending_chars:
                    break
                next_char = self.pending_chars.pop(0)
                while next_char.input_symbol == " " and not self._has_input_colors(next_char):
                    if self.pending_chars:
                        next_char = self.pending_chars.pop(0)
                    else:
                        break

                self.terminal.set_character_visibility(next_char, is_visible=True)
                self.active_characters.add(next_char)
                self.laser.reposition(next_char.input_coord)

            self.char_delay = self.config.etch_delay
        else:
            self.char_delay -= 1
        if self.pending_chars:
            self.laser.shimmer()
        else:
            self.laser.disable()
        self.update()
        return self.frame
    raise StopIteration

build()

Build the effect.

Source code in terminaltexteffects/effects/effect_laseretch.py
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
def build(self) -> None:
    """Build the effect."""
    final_fg_gradient = tte.Gradient(*self.config.final_gradient_stops, steps=self.config.final_gradient_steps)
    final_gradient_mapping = final_fg_gradient.build_coordinate_color_mapping(
        self.terminal.canvas.text_bottom,
        self.terminal.canvas.text_top,
        self.terminal.canvas.text_left,
        self.terminal.canvas.text_right,
        self.config.final_gradient_direction,
    )
    for character in self.terminal.get_characters():
        final_fg_color: tte.Color | None
        final_bg_color: tte.Color | None
        if self.terminal.config.existing_color_handling == "dynamic":
            self.character_final_color_map[character] = tte.ColorPair(
                fg=character.animation.input_fg_color,
                bg=character.animation.input_bg_color,
            )
            final_fg_color = self.character_final_color_map[character].fg
            final_bg_color = self.character_final_color_map[character].bg
            cool_gradient = tte.Gradient(
                *self.config.cool_gradient_stops,
                steps=8,
            )
        else:
            self.character_final_color_map[character] = tte.ColorPair(
                fg=final_gradient_mapping[character.input_coord],
            )
            final_fg_color = self.character_final_color_map[character].fg
            final_bg_color = self.character_final_color_map[character].bg
            cool_gradient = tte.Gradient(
                *self.config.cool_gradient_stops,
                final_gradient_mapping[character.input_coord],
                steps=8,
            )
        spawn_scn = character.animation.new_scene(scene_id="spawn")
        spawn_scn.add_frame("^", duration=3, colors=tte.ColorPair("#ffe680"))
        for color in cool_gradient:
            spawn_scn.add_frame(character.input_symbol, 3, colors=tte.ColorPair(fg=color))
        if self.terminal.config.existing_color_handling == "dynamic":
            if final_fg_color or final_bg_color:
                fg_gradient = (
                    tte.Gradient(cool_gradient.spectrum[-1], final_fg_color, steps=8) if final_fg_color else None
                )
                bg_gradient = (
                    tte.Gradient(cool_gradient.spectrum[-1], final_bg_color, steps=8) if final_bg_color else None
                )
                spawn_scn.apply_gradient_to_symbols(
                    character.input_symbol,
                    3,
                    fg_gradient=fg_gradient,
                    bg_gradient=bg_gradient,
                )
            else:
                white_cooldown = tte.Gradient(cool_gradient.spectrum[-1], tte.Color("#ffffff"), steps=8)
                spawn_scn.apply_gradient_to_symbols(
                    character.input_symbol,
                    3,
                    fg_gradient=white_cooldown,
                )
                spawn_scn.add_frame(character.input_symbol, 3, colors=tte.ColorPair())
        character.animation.activate_scene(spawn_scn)
    if self.config.etch_pattern == "algorithm":
        algo = RecursiveBacktracker(self.terminal, limit_to_text_boundary=True)
        while not algo.complete:
            algo.step()
        self.pending_chars = algo.char_link_order
        if self.config.reverse_etch_pattern:
            self.pending_chars.reverse()
    else:
        self.pending_chars = self.terminal.get_characters(
            order=self.config.etch_pattern,
            serpentine=True,
            reverse=self.config.reverse_etch_pattern,
        )

get_effect_resources()

Get the command, effect class, and configuration class for the effect.

Returns:

Type Description
tuple[str, type[BaseEffect], type[BaseConfig]]

tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.
Source code in terminaltexteffects/effects/effect_laseretch.py
30
31
32
33
34
35
36
37
def get_effect_resources() -> tuple[str, type[BaseEffect], type[BaseConfig]]:
    """Get the command, effect class, and configuration class for the effect.

    Returns:
        tuple[str, type[BaseEffect], type[BaseConfig]]: The command name, effect class, and configuration class.

    """
    return "laseretch", LaserEtch, LaserEtchConfig
